ASI 0002-SM

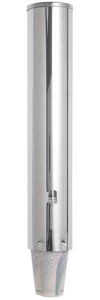

Name: ASI 0002-SM Round Cup Dispenser
Brand: ASI
SKU: ASI 0002-SM
Price: 44.92 USD

ASI 0002-SM Round Cup Dispenser

× This image is for a similar product but it will differ in size, color and/or other attributes.

Video Review ASI 0002-ASM Square Cup Dispenser

Price: $44.92 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days with $82.50 minimum purchase of ASI products or 15 business days for smaller orders.

ASI has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

ASI Surface Mounted Round Stainless Steel Paper Cup Dispenser

Dispenses 100 flat bottom cups
Adjustable for 3 oz to 6 oz cups
Stainless steel with bright finish
Overall size 3" Dia. x 15"
Fabricated of alloy 18-8 stainless steel, type 304; No 22 gauge
Back of unit has dovetail bracket to match a wedge fit wall bracket
Includes one lock (L-001) and one key (E114 key)

Cut Sheet

Operation

Cups are self-feeding until supply is depleted.
Dispenser may be reloaded with a partial load in-place and will continue to feed properly.

Installation

An independent bracket is surface mounted on wall or partition using No 10 self tapping screws(supplied).
Unit is then secured at back via a matching permanent bracket at back of dispenser.
For compliance with ADA Accessibility Guidelines the unit should be installed so that the bottom of the cup dispenser does not exceed 54" (1372mm) maximum above finished floor (AFF) when clear side access is provided or 48" (1219mm) maximum AFF with forward reach access only and 46" (1168mm) maximum AFF with side reach over an obstruction (i.e. vanity).
