Product Description:

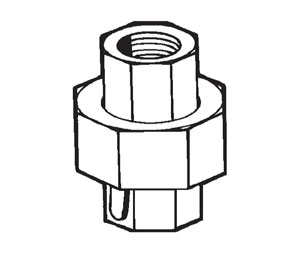

	416679 ANSUL Low Pressure CO2 Systems - Orifice Union, 1 in. NPT


1 in. NPT Pressure Reducer/Union ANSUL Low Pressure CO2 System Components Material: Body: Forged Steel; Orifice Plate: Stainless Steel Thread Size: 1" Approvals: FM Approved; UL Listed (EX-4510) Dimensions: Here The pressure reducer/union is required to restrict the flow of INERGEN® agent thus reducing the agent pressure down stream of the union. The 3000 psi (206.9 bar) NSCWP union contains a stainless steel orifice plate which is drilled to the specific size hole required based on the flow calculation. The orifice plate provides readily visible orifice identification. The orifice union is available in six sizes: 1/2 in., 3/4 in., 1 in., 1 1/4 in., 1 1/2 in., and 2 in. NPT. All pressure reducer/unions must be installed in the piping with the orifice identification tab on the pressure inlet side of the system. The 1 1/4 in., 1 1/2 in. and 2 in. orifice unions must be installed per the direction of the flow arrow stamped on the body Orifice diameter must be specified when placing order	Cut Sheet
