Ansul 428949

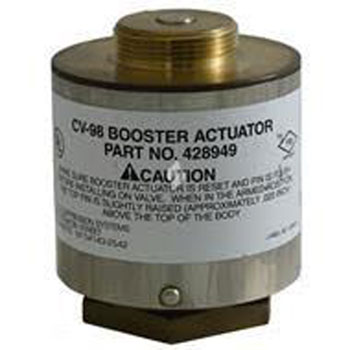

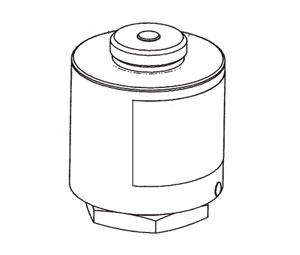

Name: Ansul 428949 CV98 Booster Actuator
Brand: Ansul
SKU: Ansul 428949
Price: 968.84 USD

Ansul 428949 CV98 Booster Actuator

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $968.84 USD

Volume Price Information

Buy 25 or more and pay $932.84 each (save $36.00)

Comments (Optional)

In Stock (No Minimums):

Naples, FL Warehouse Qty: 2

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Sales

Technical Support

Product Description:


	428949 CV98 Booster Actuator

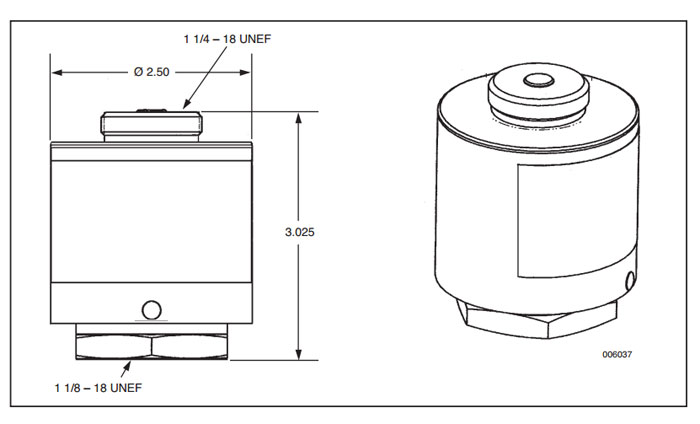

Ansul System Component The Booster Actuator is used when electric actuation is required on the Selector Valve or the CV-98 Cylinder Valve The actuator mounts directly to the component and then a HF electric actuator mounts to the top of the booster actuator Requires resetting after actuation. A Reset Tool, Part No. 429847, is available for this use This item combines with 73327 to make the assembly formerly known as the 423684 CV-98 Electric Actuator.	Technical Sheet
Click to Enlarge
Click to Enlarge

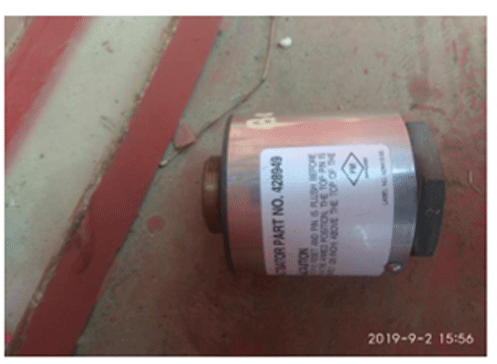

Customer Supplied Photo
(Click to Enlarge)

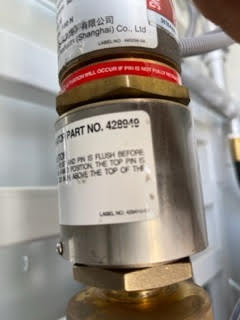

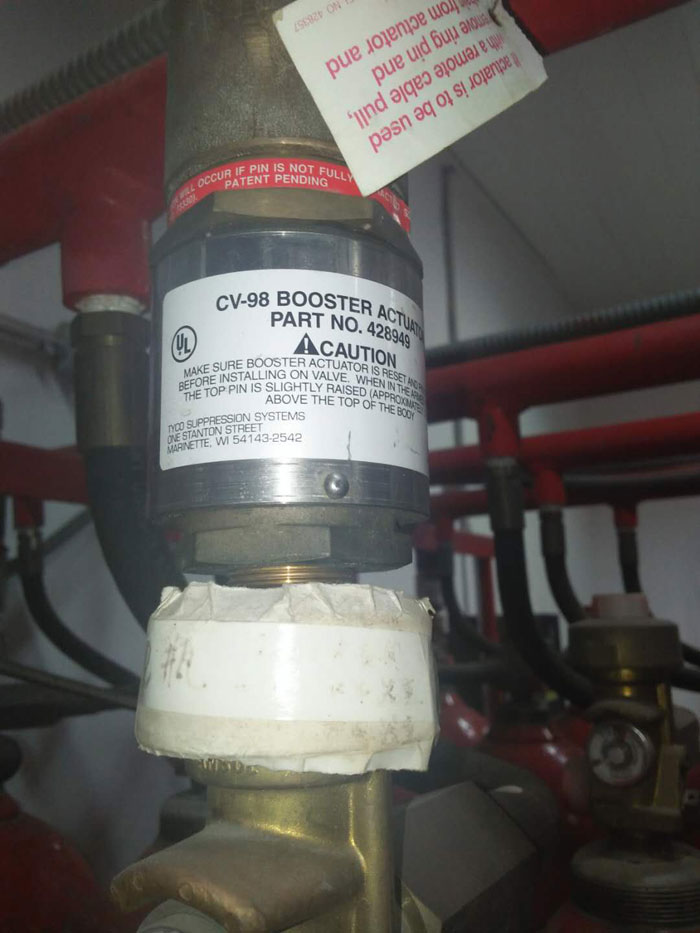

Customer Supplied Photo (Click to Enlarge)
Customer Supplied Photo (Click to Enlarge)
Customer Supplied Photo (Click to Enlarge)
