Ansul 4614

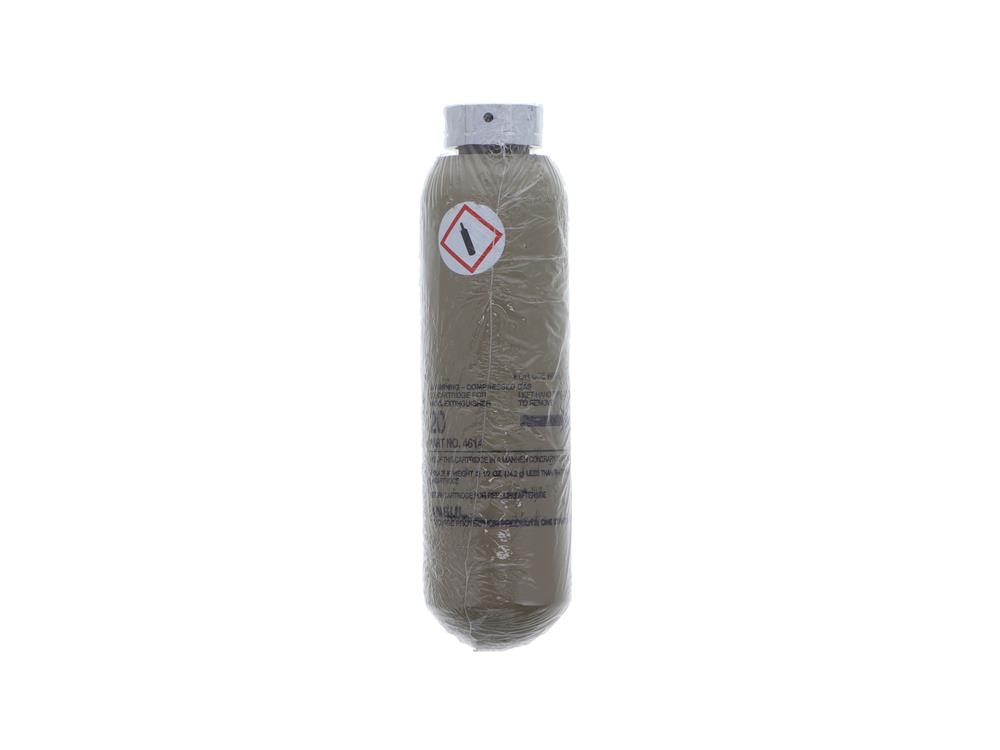

Name: Ansul 4614 Carbon Dioxide Cartridge - 20 lb
Brand: Ansul
SKU: Ansul 4614
Price: 102.82 USD

Ansul 4614 Carbon Dioxide Cartridge - 20 lb

× This image is for a similar product but it will differ in size, color and/or other attributes.

Ansul 4614 Carbon Dioxide Cartridge - 20 lb

Price: $102.82 USD

Volume Price Information

Buy 10 or more and pay $99.62 each (save $3.20)

Buy 25 or more and pay $96.12 each (save $6.70)

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 5

For quantities beyond the "In Stock" above, the item(s) ships in 20-30 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


Carbon Dioxide Cartridge - 20 lb

Carbon Dioxide Cartridge for Red Line Hand Portable Extinguishers Nozzle design directs the nozzle body downward when the nozzle is squeezed thus directing the agent stream at the base of the fire and increasing the chance of extinguishment. Nozzle tips feature a converging-diverging design to give an expanded round stream of dry chemical. The steel gas tube is designed with two rubber check valves clamped in place. The check valves, which cover the gas discharge holes, produce multidirectional gas streams to fluidize the dry chemical agent Agent outlet elbow is machined from low carbon steel barstock and allows for maximum discharge of the dry chemical when the extinguisher is held at the normal 45° angle. Discharge hose is ethylene propylene diamine and is UL 92 approved for use at temperatures of –65 °F to +120 °F (–54 °C to 49 °C). Completed assembly is subjected to a final production air test of 240 psi (16.6 bar) and stamped to indicate year of manufacture. Expellent gas cartridges are fabricated of one-piece spun steel in accordance with DOT 3E-1800 (Carbon Dioxide) or DOT 3A-2100 (Nitrogen) and Transport Canada (TC) specifications. Note: The Model 5 and Model 10 cartridges with twopiece construction are exempt from DOT requirements (due to volume) and are made in accordance with UL/ULC specifications. Cartridges are sealed with a brass seal assembly utilizing a copper seat. The seal assembly has ‘‘ANSUL’’ printed on it indicating the seal meets or exceeds ANSUL quality levels and UL/ULC requirements. Carbon dioxide cartridge seal has a safe rupture pressure range of 4050 to 4500 psi (279 to 310 bar) in a temperature range of 195 °F to 210 °F (91 °C to 99 °C). Capacity: 20 lb Spun steel construction Price/Cartridge Carton/25.	Data Sheet Safety Data Sheet
