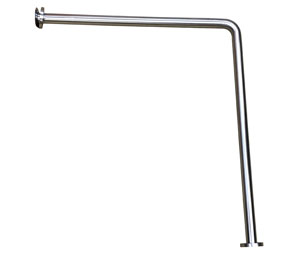

AJW UG3-R3330 1.5" Diameter 33" x 30" Wall to Floor Grab Bar - Concealed Snap Flange

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
AJW UG3-R3330 1.5" Diameter 33" x 30" Wall to Floor Grab Bar - Concealed Snap Flange
More from AJW
Price: $44.87 USD
Ships From
Comments (Optional)
Low Inventory - This product is discontinued
but there are 11 left in stock
and ready for shipment. Order today.

1-844-809-3667

Sales
Technical Support
Product Description:

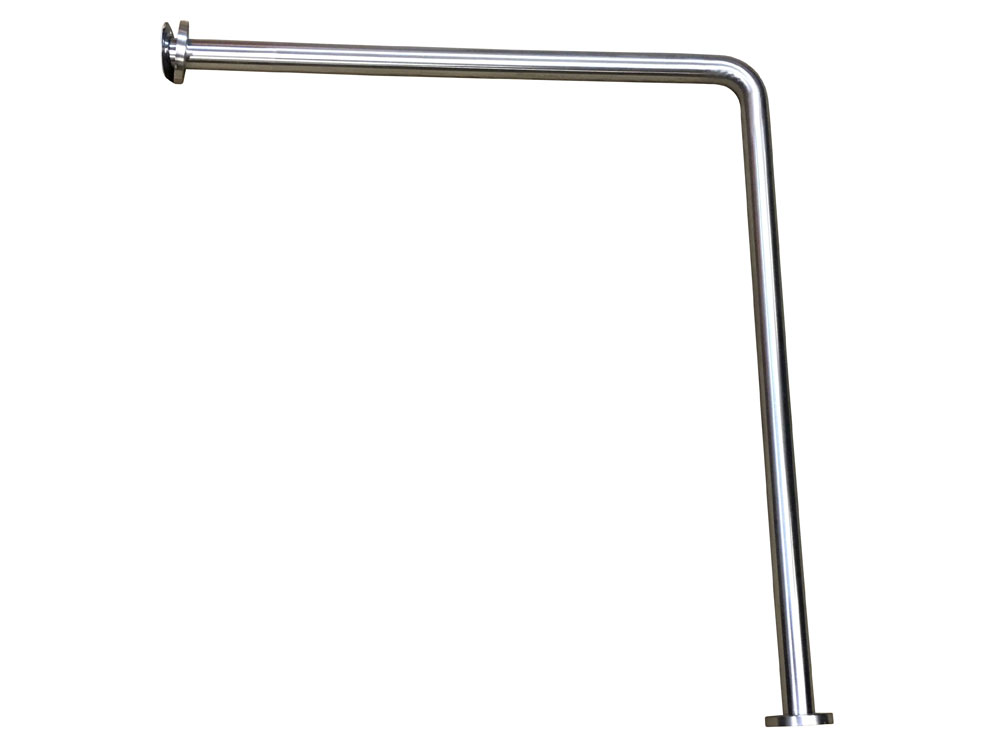

AJW-logo AJW UG3-R3330 1.5" Diameter 33" x 30" Wall to Floor Grab Bar - Concealed Snap Flange
  • Wall to Floor Grab Bar
  • Diameter: 1.5"
  • Length 1: 33"
  • Length 2: 30"
  • Material: Satin Stainless Steel

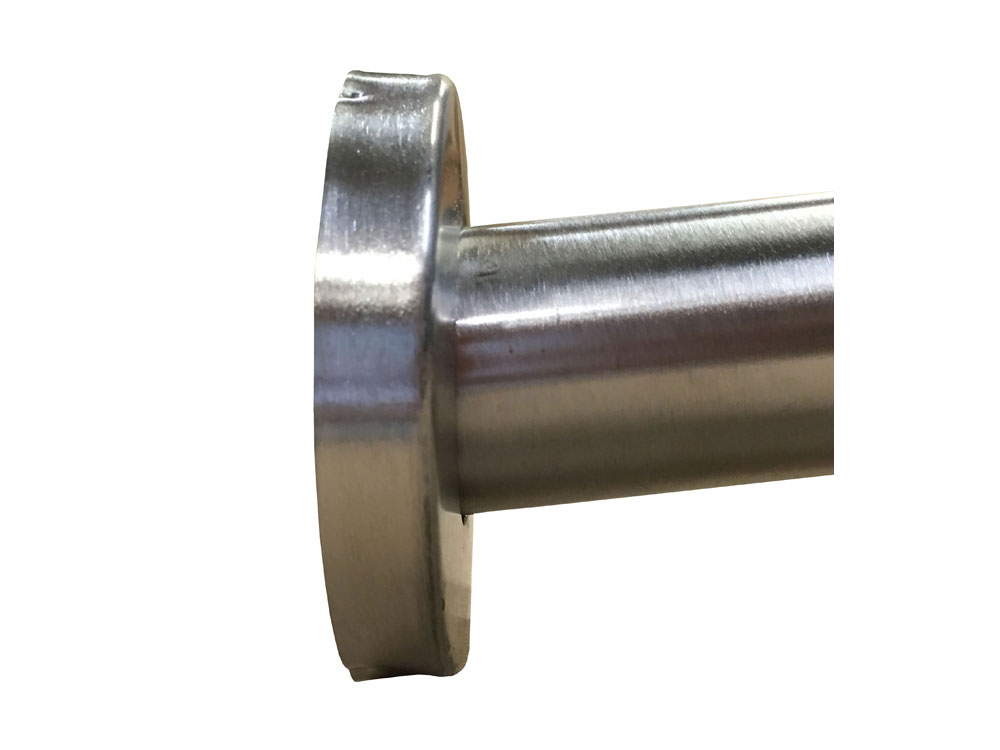

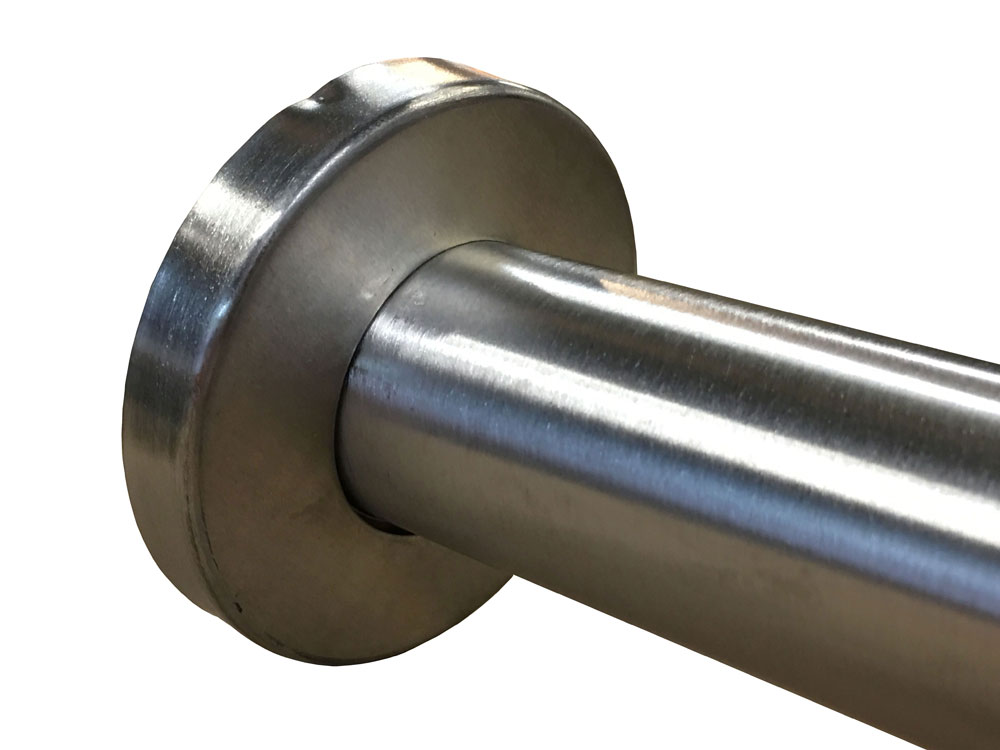

  • Flange Type: Concealed Snap
  • Custom Sizes and Powder Coating available upon request. Please contact sales for more information.

Specifications & Installation

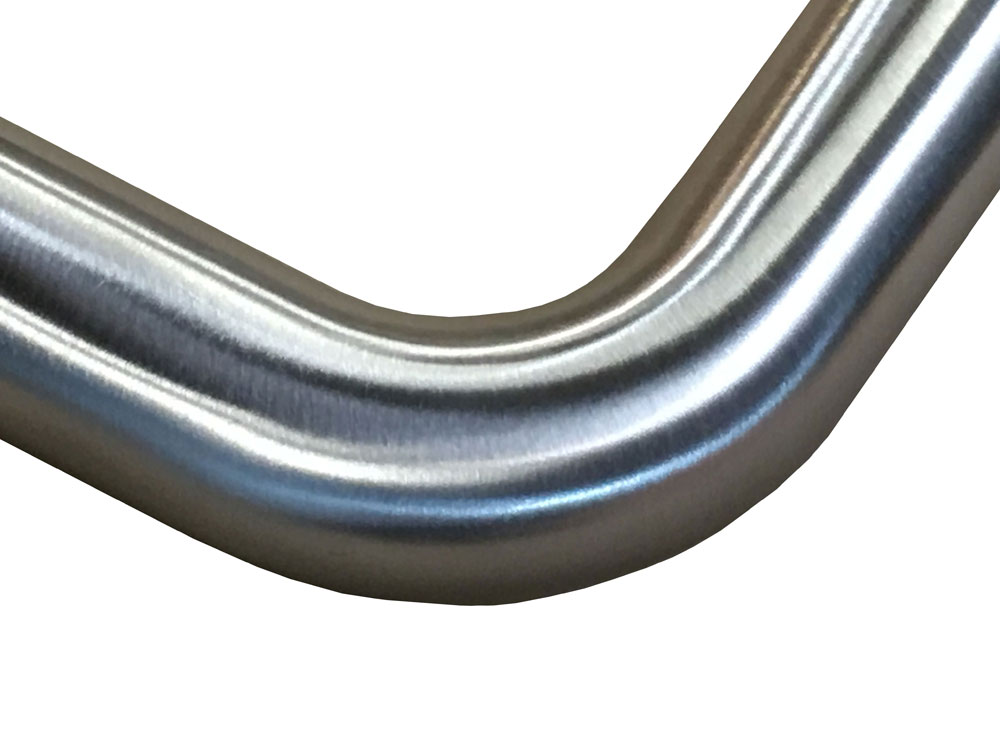

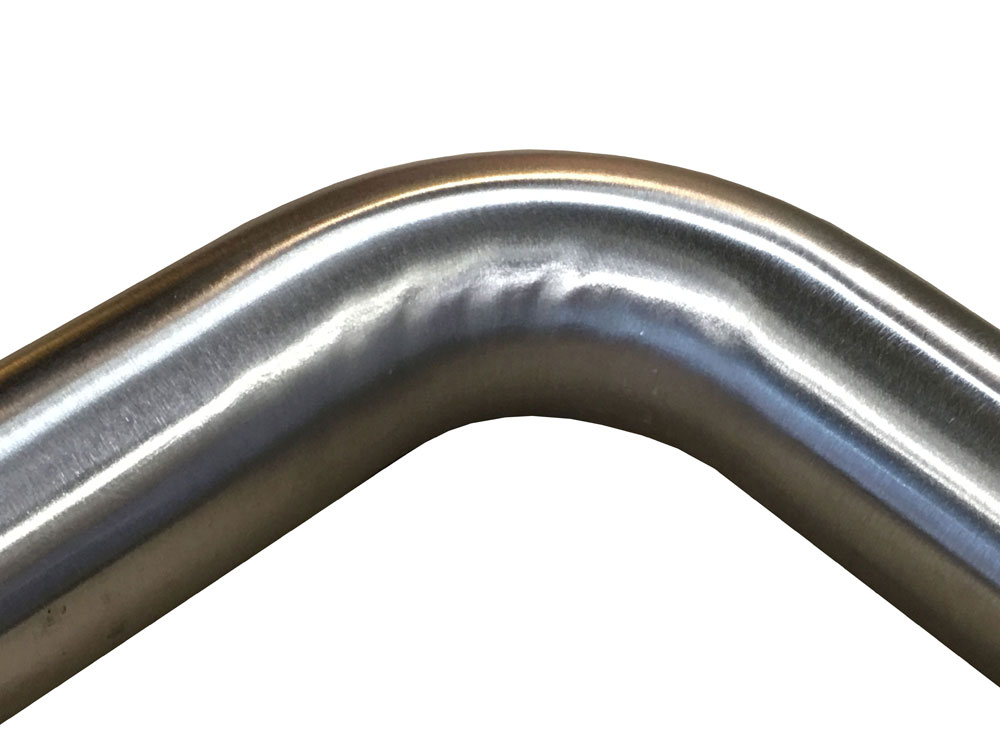

  • Tubing: Fabricated of #18 ga stainless steel with a #4 satin finish. Available in 1 1/4" outside diameter. All bends are formed by an automatic mandrel bending process. All bars maintain a constant 1 1/2" offset.

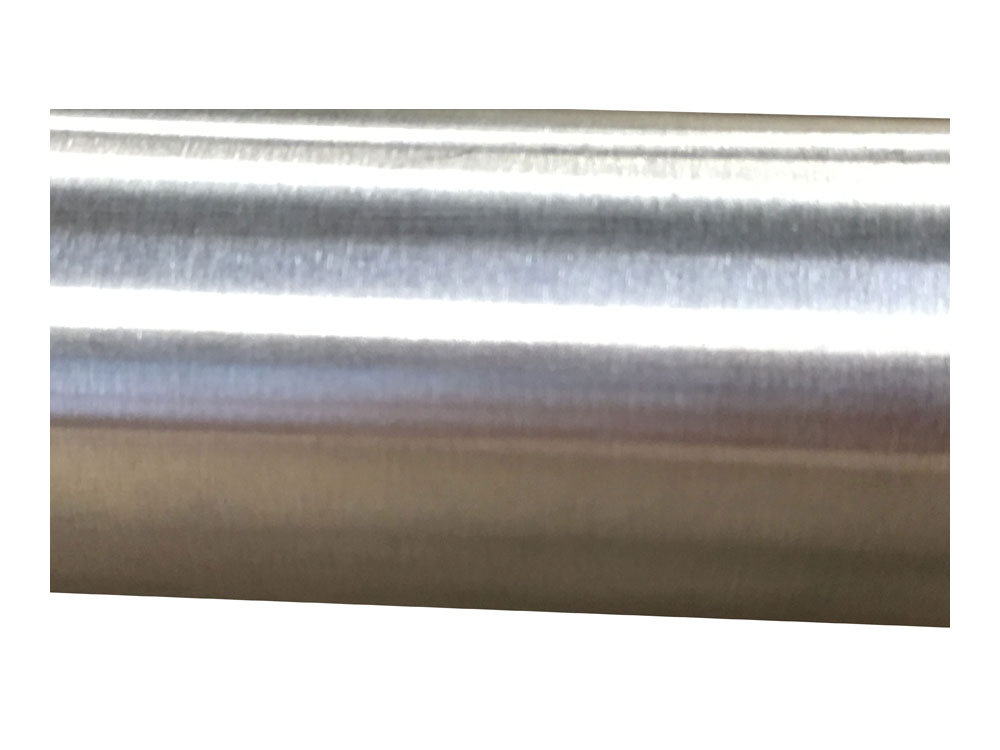

  • Finish: Standard finish is a #4 satin finish. For a non-slip finish (peened) add suffix X to model number. (Ex. UG120X-B)

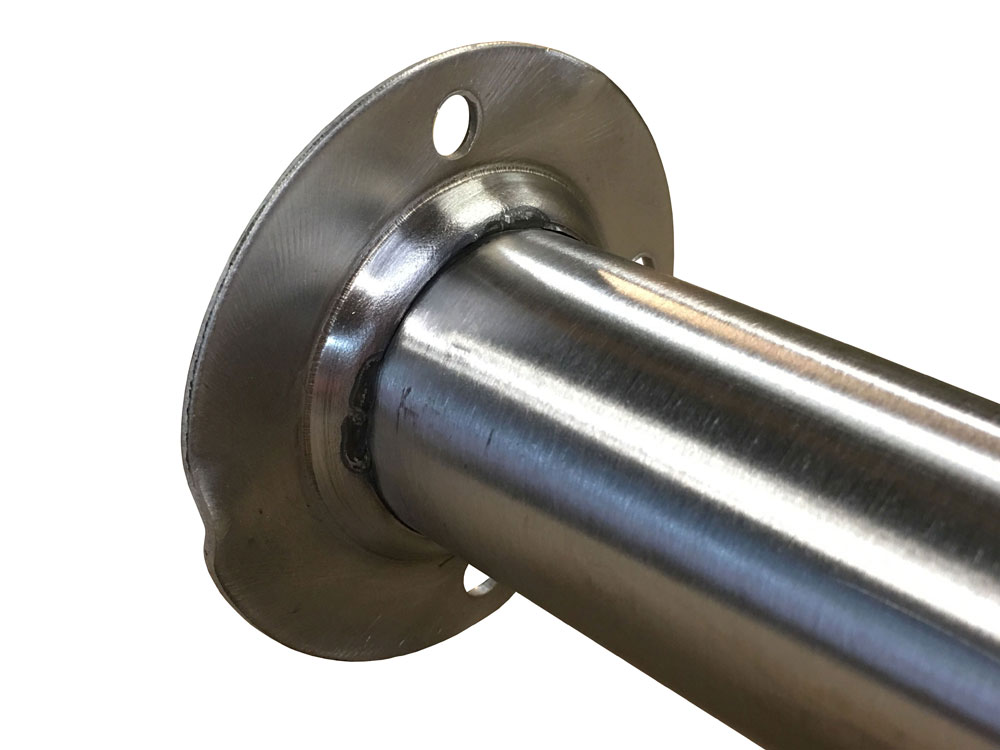

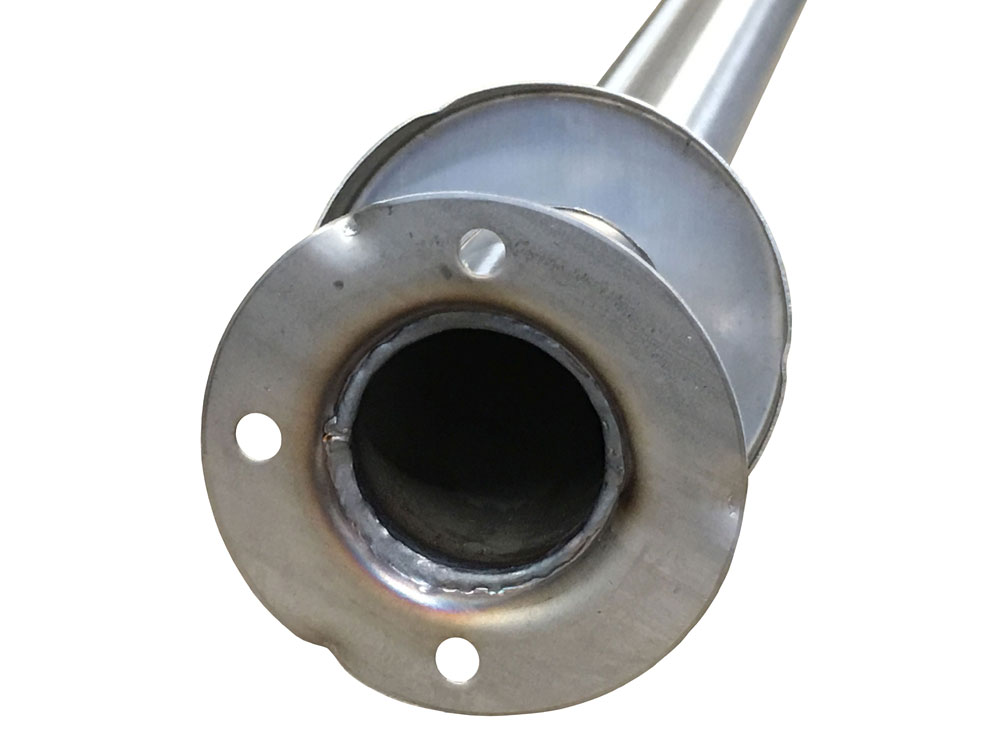

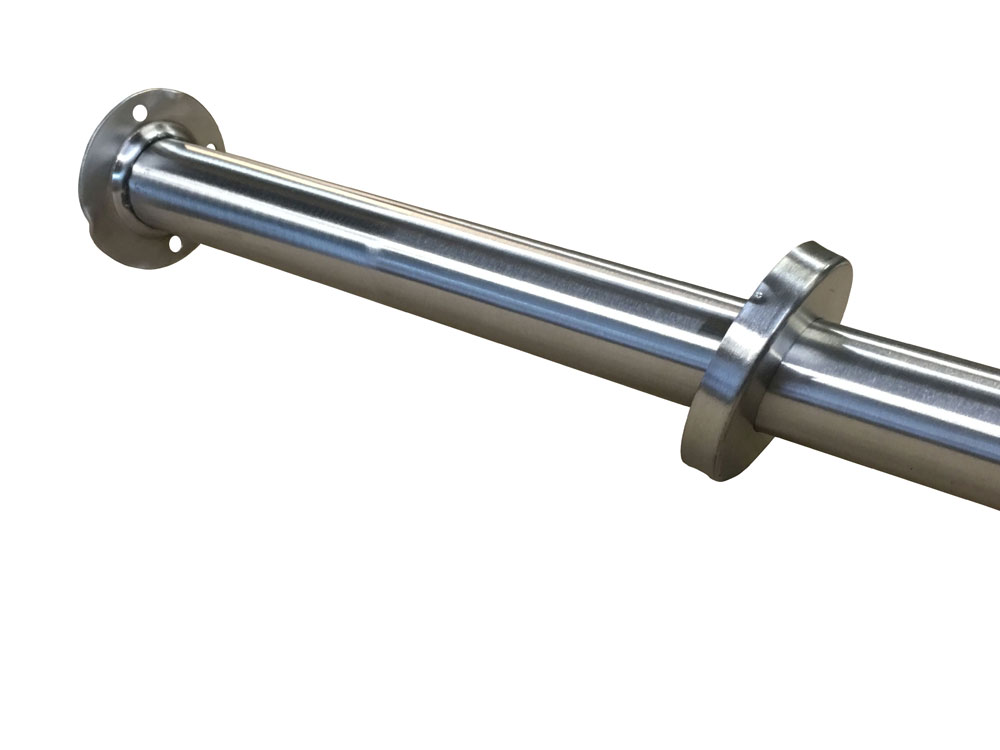

  • Flange: Fabricated of 3" diameter, #11 ga stainless steel with #4 satin finish to match tubing. Flanges are heliarc welded to bar to form a one piece construction. Each flange has three (3) mounting points (1/4" dia.)
  • Strength: Bars with a 1 1/2" offset clearance will support loads in excess of 900lbs when properly installed. Bars with greater offsets will support loads up to 250lbs when properly installed.
  • Installation: Before installing grab bars, verify with all state and local codes for requirements on bar diameter and type finish. Recommended mounting heights for grab bars are 33" - 36" centerline above finished floor. All mounting of grab bars when possible should have in wall mounting back plates. Find centerline mounting points and place bar on line making sure to be on center. Transfer mounting points (3 per flange) to wall. Drill pilot holes and secure bar with proper anchors per application. Snap cover over mounting plate.

Questions and Answers
Q: Is it 33" from wall to bend and 30" from bend to floor?
A: Per this image:

View Image

Length1 = 33"
Length2 = 30"

from wall to CL of bar = 30"

From floor to CL of bar = 33"

This bar Diameter = 1.5"

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: looking for Diameter = 1.25"
A: The UG2 is the 1.25" diameter version of the UG3 as seen here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: Can you make 2 - 30 x 30 x 1-1/2 L Shaped Grab Bars concealed screws and twist lock flanges peened surface Antique brass finish
A: We can certainly manufacturer the custom 30-inch Dimension that you require in lieu of the 33-inch however we discontinued the antique brass finish.
