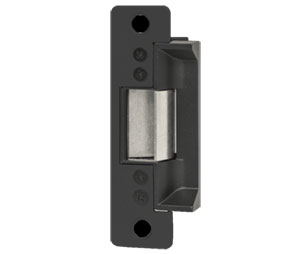

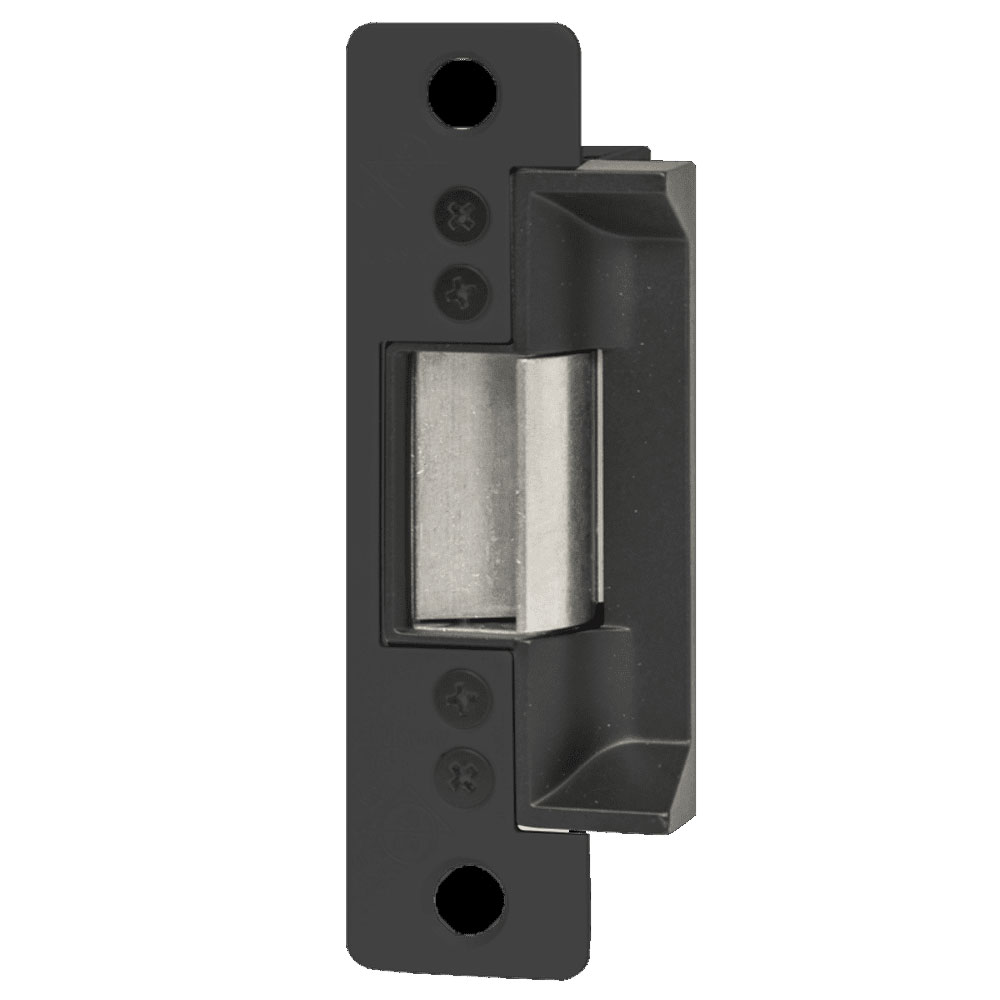

Adams Rite 7100-510-335-00

A: you would need these items:

Click Here

and

Click Here

Please contact our sales department here:

Click Here

If we can assist you with entering this order and please let us know if there is anything else we can help with.

A: I have run into this problem in the past - here are the closets for this - you have an insufficient amount of voltage, amperage to the strike so I would make sure that the transformer that you're using produces an adequate amount of voltage and current. You'll need to make sure that the gauge of the wires is sufficient for the job and what happened to me when I first saw this is that the installer placed the power supply several hundred feet away from the electric strike and the voltage drop was so substantial that it caused the unit not to work - I did also discovered that when I turned it upside down and it worked because the internal solenoid was being assisted by gravity when it was turned upside down. This is surely a power supply issue. Please report back your findings.

Use your multimeter and set it for voltage and ensure that you're getting the proper quantity of volts and then use your multimeter and set it to amperage and make sure that you have the proper amps coming to the unit when it's under load.
