Escutcheons • 1-3/4" x 4" • Steel mounted base scured by hidden screws and has two large helical compression springs. • 1/4" square heat-treated spindle is part of escutcheon assembly.
Function • Designed to operate 4500/4700/4900 Series latches by a natural downward hand movement. • Activator cam disc incorporated
Cam plugs • Secured in latch body by cylinder setscrew Tied to handle escutcheon by hardened steel pins.

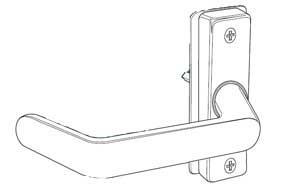

Levers • Cast aluminum Generous hand grip with shank offset away from narrow stile jamb for hand safety.
628 Satin Aluminum
The catalog reference to the 4600 is on oages T-21 through T-22 here:
Download File
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
