Q: Hi Rich I am actually looking for this portion of the latch, but with the slider bar that the key lock mechanism can integrate with the manual lock. Adams Rite 41-0942-01-IB Interior Escutcheon Operator (He 0066) - 4189 1" - 1-5/8" Door Part #: Adams Rite 41-0942-01-IB I hope this make some kind of sense. Thanks Chuck
A: This is the interior trim for a unit that features and exterior cylinder:
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: Does this come with two keys and can you post a picture of the cylinder so I can see if it matches the one I need?

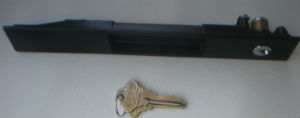

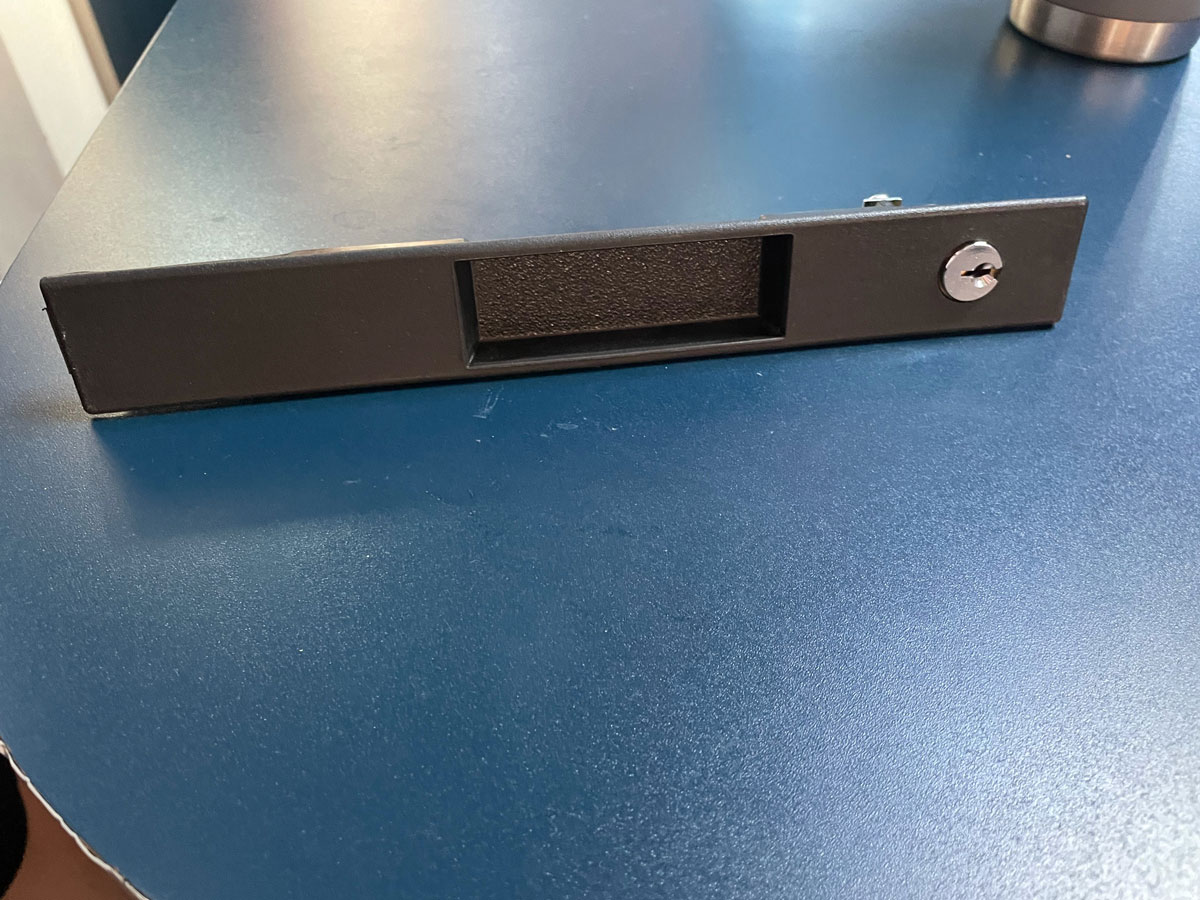

A: Two keys are indeed included with the Adams Rite 41-0405-00-01-IB Exterior Escutcheon and the cylinder for this model is the Adams Rite 29-0461-03-01 Insert Cylinder W/ 2 Keys - Schlage "C" Keyway and can be reviewed here:
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: Does this include both sides or just the exterior portion and also how much and what product number for the entire kit.

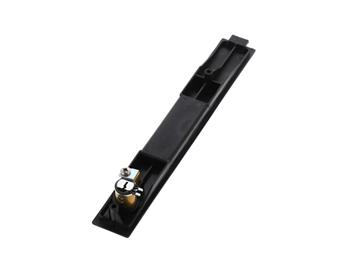

A: The Adams Rite 41-0405-00-01-IB Exterior Escutcheon - 4431 (He 87) Schlage "C" Keyway, Black Color Is indeed only the exterior parts of the lock and I would need to know a couple of other details in order to tell you the part number of the entire kit.
Number one I would need to know what the thickness of the door is
Number two I need to know the treatment of the lock-in the edge of the door whether the top and bottom face of the lock body itself is radius or square.
Please review and advise these details and I will assist at that point moving forward.

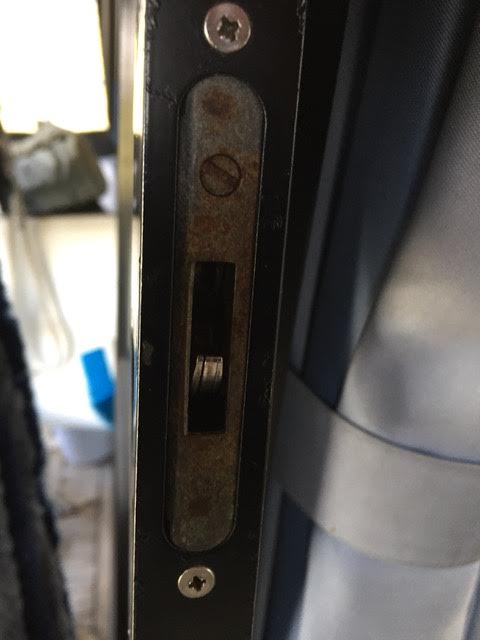

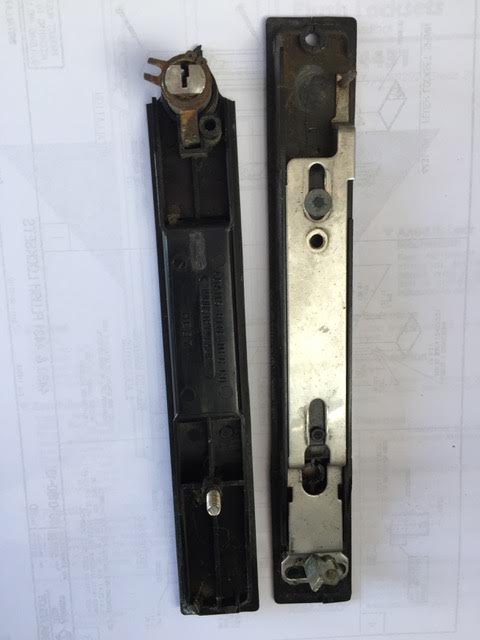

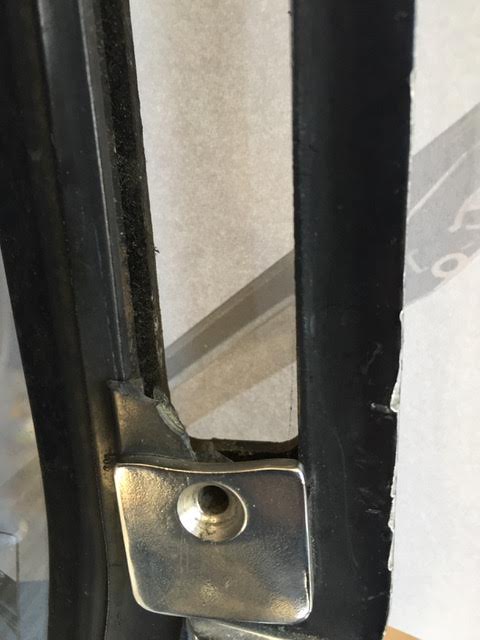

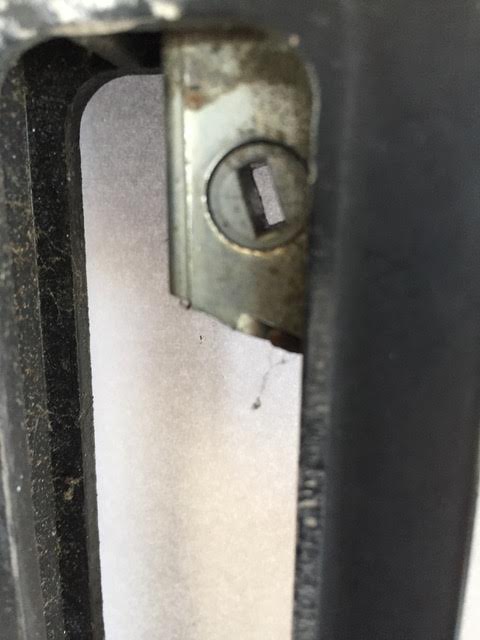

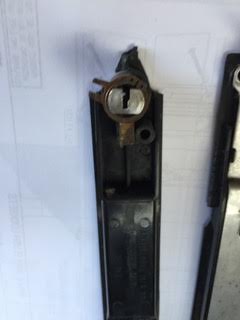

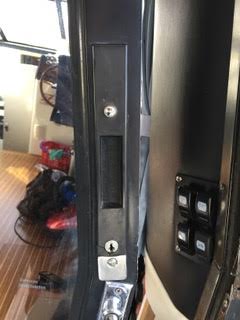

A: I can certainly assist you with this and it's a very simple scenario as your images have provided everything necessary in terms of questions that I would have had to ask.
Based on the information you have provided your part number is Adams Rite 4431-09-00-01-IB Sliding Door Flush Lockset with Exterior Cylinder which can be seen here:
Click Here
In short I simply need payment and then the address to send the material to.
I have sent to your email the total cost with shipping to Germany.
How would you like to proceed?
Q: Hi, trank you for your quick answer. Hope my terrible english writing is okay. My payment can be with Paypal or creditcard. My adress is like I wrote under my E-Mail before. Best regards, Carsten

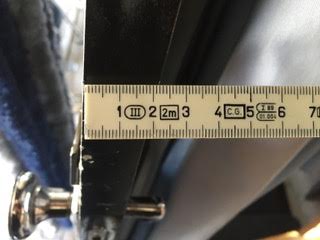

A: Thank you - also we have agreed that your door 23 mm thick. I have received your payment and will get the order shipped out today.
Q: How does this park number change for the same door thickness when used on a 4431?
A: It doesn't. The inside escutcheon is the same for both the 4430 and the 4431. Only the outside escutcheons have different part numbers indicating with or without key cylinder.
Q: Why is it that in the past I have received interior trims that do not contain a pin that would communicate to the birdsmouth preparation on the backside of a cylinder cam?
A: I am not certain why that would have happened unless those units were not manufactured correctly. As you can see on the attached parts sheet as seen here:
Download File
there is only the part number 41-0397-XX-IB (with XX representing the door thickness code) for the inside escutcheon.
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
Thank you for your consideration.
Q: Will this work with the HE 86 interior mated part that I already have? I want to substitute an HE 87 with a lock for the one I have currently that does not have a lock and want to make sure I do not have to order a new HE 86 as well.
A: This will not work as changing to an exterior keyed trim will require a different interior trim than the one used for the exterior trim that does not feature a cylinder. We keep these in stock but would bee to know the thickness of your door to select the correct set of trims (specifically the interior trim).
Q: Thank you. The thickness of the door is 1-1/8" (1.125"). If you could advise as to the two parts to order (exterior and interior), I would appreciate it. Best-- Paul B
A: Thank you - you will want to otder the Adams Rite 41-0405-00-01-IB Exterior Escutcheon - 4431 (He 87) Schlage "C" Keyway, Black Color and the Adams Rite 41-0397-01-IB Interior Escutcheon Operator (He 86) 1" - 1-5/16" Door, Black Color as seen here:
Click Here
and here:
Click Here
Q: i just ordered the adams rite Adams Rite 25-0087-IB Exterior Escutcheon - 4430 (He 87), which has not shipped yet. my door does havea lock and key which I will be reusing I dont need the new lock my order number is 114640 will what I ordered work or did I order the wrong part?
A: Indeed yes you just called we spoke in the item have not shipped yet so we were able to refund and cancel the initial order and process the order for the proper item which will indeed include a new cylinder but I understand that you are going to want to retain and reuse the existing cylinder at which point you will simply remove the new cylinder from the new escutcheon, save that as a spare part and then reinstall your existing key cylinder so that you can maintain the existing king that has occurred.

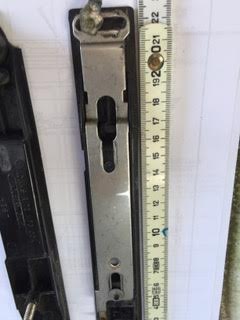

Q: I have an HE 87 exit lock. I need to replace the metal slide that integrates with the interior key lock. I do not need any other parts. Thank you

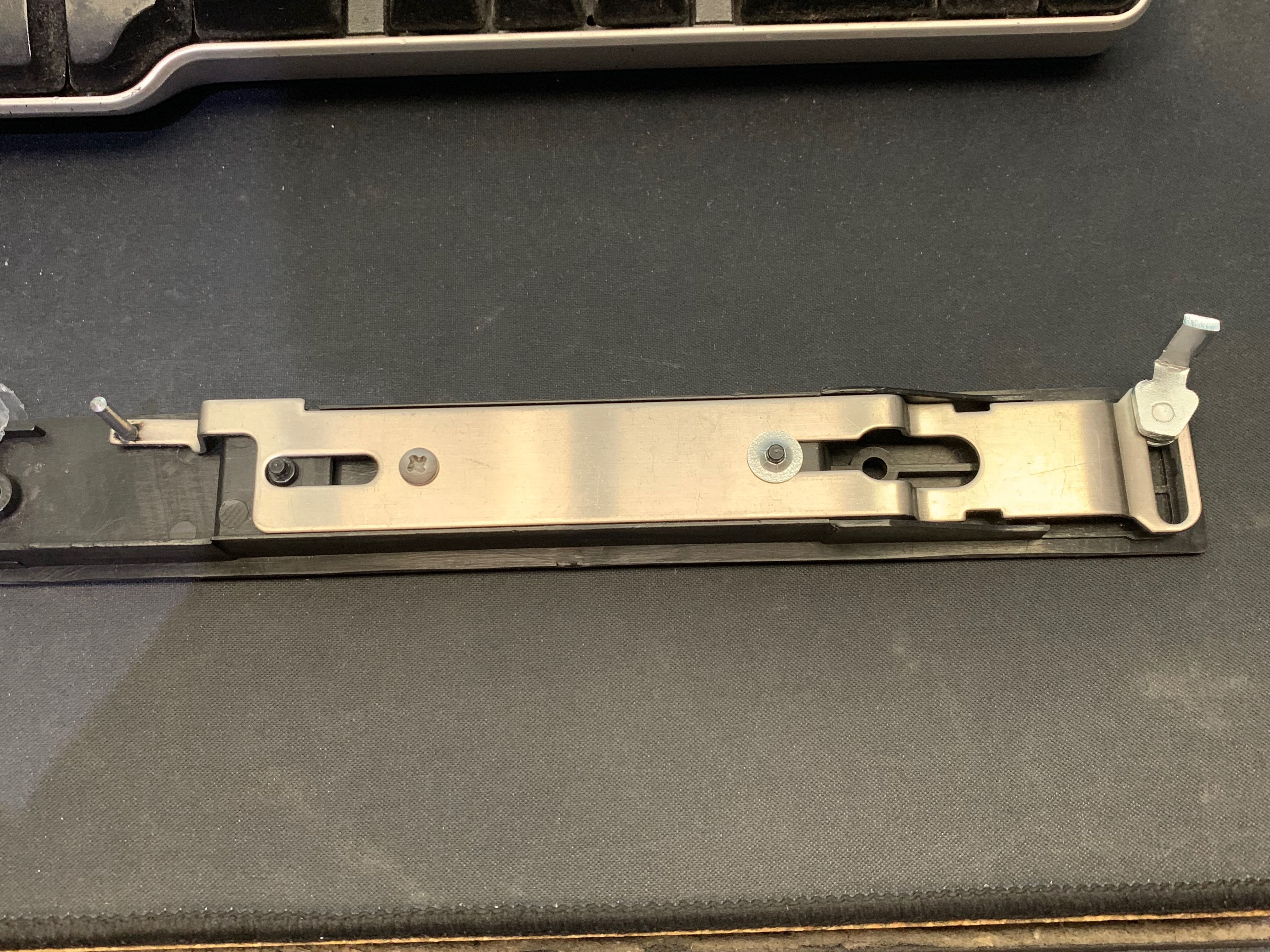

A: That metal slide subcomponent as seen here:
View Image
is notavailable as a separate stand-alone product however we can sell you the entire replacement interior trim and in order to do so we would simply need to know how thick the door is.
