Q: the part I am trying to replace is Adams Rite HE87 which is black plastic. What do I need??
A: If you are existing Adams Rite HE87 does not have a key cylinder you're going to want to purchase the Adams Rite 25-0087-IB as seen here:
Click Here
If you are existing Adams Rite HE87 does indeed have a key cylinder you're going to want to replace it with the Adams Rite 41-0405-00-01-IB as seen here:
Click Here
Black is by far the most common finish but these can also be special ordered in white.
Q: i am looking for one similar to 23-0065 but i want it keyed from both sideds d
A: The only way to accomplish a double cylinder function using the atoms right Adams Rite 4190 series sliding door locks would be to install two of them so that you had a key to cylinder on each side of the door and a vertical sliding knob so that you could always control access and egress through the opening. It would be possible to lock someone within the space or outside of the space and I would not be able to get in without a key from the opposite side of the door.
May I ask what your application is?
Q: Hi - I would like to replace 4430 escutcheons : Can this part 4189 replace the 4430 escutcheons? Are the screw separations the same? I would like to add a handle.
A: You can indeed replace both the exterior and interior escutcheons from the 4430 series with the 4189 series, though be mindful to replace both the interio and exterior at the same time.
Q: Will the Adams Rite 4453-02-335 Grip Pull for 4430/4431 fit this part?
A: It will not as the 4453-02-335 Grip Pull is for the for 4430/4431 series escutcheons.
The Adams Rite 4413-02 Grip Pull for 4189/4190 Series as seen here:
Click Here
Is the pull handle for the 4189/4190 series escutcheons.

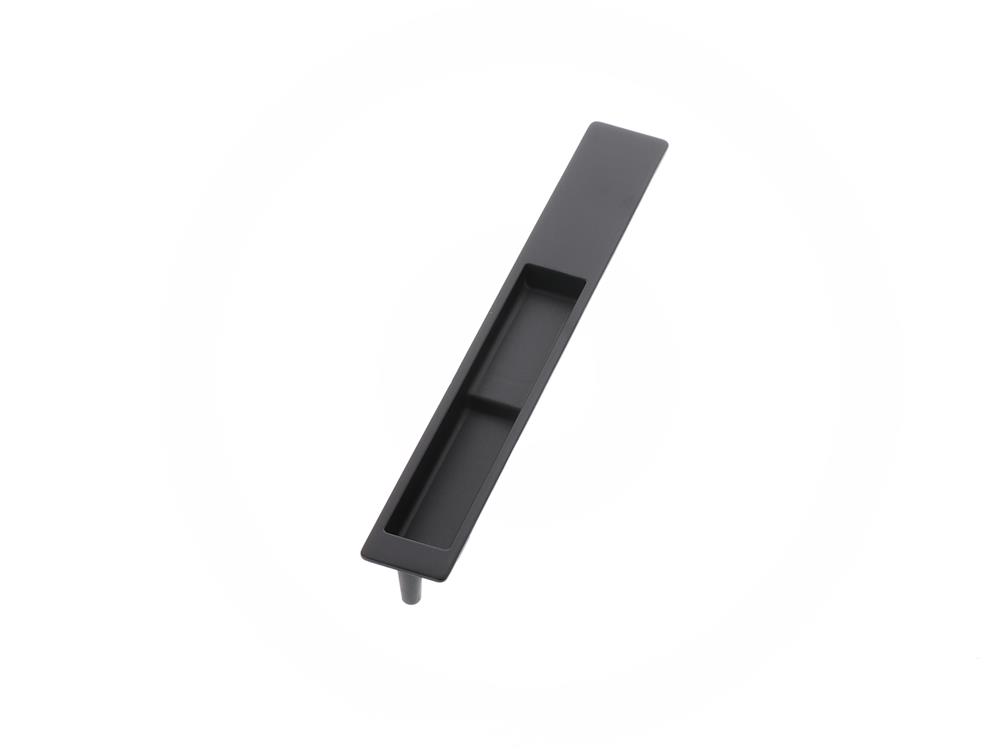

Q: Is there a pull handle to connect to Adams Ri1-0942-01 INTERIOR escuthe 4189 (HE 0065)
A: There is a pull handle used for the Adams Rite 4189 lock which is the
Adams Rite 4413-02 Grip Pull for 4189/4190 Series
as seen here:
Click Here
