ABH 2400L Flush Wall Mount

ABH 2400L

ABH 2400L Flush Wall Mount

Manufacturer: ABH
Price: $240.13
  Order Options:
Comments (Optional)
  Add To Cart
Availability Information
Standard - ships in 14 business days.
Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from ABH
This item ships from IL.

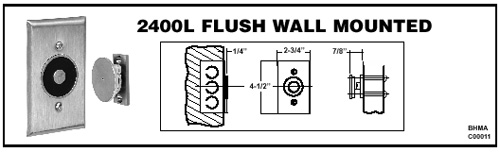

ABH 2400L Flush Wall Mount
WHEN ORDERING, please list:
  • Model Number
  • Total Projection
  • Door Thickness
  • Voltage
  • Finish

  • For use on fire/smoke barrier doors hold open until released by a remote switching device. Can also be used to just hold door.
  • Total projection - 1-1/8" 2-1/8" with one 1" extension
  • Special Electrical Circuit field selectable Tri-Voltage - 12V DC, 24V AC/DC, 120V AC
  • 30-45# holding power
  • Easy wire installation with quick insert connector
  • Stainless steel face plate available
  • Available in US28, Sprayed finishes and US32D
  • Armature is through bolted for security and can be provided with any projection required.
  • Armature extensions available for unlimited projections and/or 120° Swivel Extension
  • Armature design will compensate for centerline misalignment up to 1/4" with double swivel and pivoting ball
  • UL and ULC listed
  • California State Fire Marshall Listed
  • City of New York MEA Approved
  • Low current design
  • Meets ANSI/BHMA requirements 156.14
Type of metal finish BHMA/ANSI US Standard
Stainless Steel, Bright
Stainless Steel, Satin
The newly designed 2000 Series Electro-magnetic Door Holders is now Tri-Voltage. Each model (except 2500) can be wired 12V DC,
24V AC/DC or 120V AC. Units can be used on fire/smoke barrier doors held open until released by a remote switching device. They
can also be used to just hold a door open. The armature is thru-bolted to the door for security and can be provided with any projection required. When ordering indicate model, total projection, finish and door thickness if other than 1-3/4”.
• 30-45 pound holding power
• Underwriters US and Canada Listed
California State Fire Marshal Listed
New York City MEA
ANSI/BHMA 156.14
• Most models available in US28, sprayed finishes and US32D
Questions and Answers
Q: I only need the door holder part not electromagnet
A: The is the armature portion and is certainly available as a stand-alone item. this is the ABH 24020 Armature only for the ABH 2400L and can be purchased here:
