ABH 0117-LH US32D
ABH 0117-LH US32D

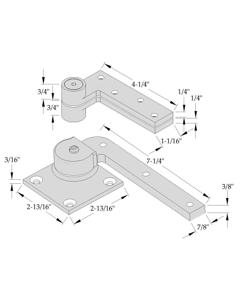

ABH 0117-LH US32D 3/4" Offset Pivot Set, Left Handed, Satin Stainless Steel
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
363.58 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
ABH 0117-LH US32D 3/4" Offset Pivot Set, Left Handed, Satin Stainless Steel
3/4" Offset Pivot Set
Left Handed
Includes:
0180 Top Pivot
Frame leaf mortises into header
Door leaf mortises into top of door
0117B Bottom Pivot
Bottom leaf mounts on top of concrete floor
Door leaf mortises into bottom of door
ABH 019 Intermediate Pivot
recommended (order separately)
Finish: Satin Stainless Steel
Maximum door load 300 pounds
Maxium door width: 42"
UL listed for use on 3-hour fire rated doors - Standard
Heavy duty bearings
Stainless steel base material
Doors ranging from 60" to 90" tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.
Video Detail Page
Additional Files:
Cut Sheet
Template
0117 Extension Bottom Spindle
0147 Offset Definition
3/4" Offset Pivot Configuration
Cross Refference Chart
Questions and Answers
Q: Can we get this with 83GN Floor Mount? And both top and bottom oil rubbed bronze?
A:
The ABH 0117 is indeed available in the BHMA 613 Oil Rubbed Bronze finish but please clarify your reference to 83GN.
