Zero 364FS-AA 36

copy to clipboard

Zero 364FS-AA 36" Intumescent Sill Protection Automatic Door Bottom with Neoprene & Intumet Insert - Mortised - Heavy Duty - Clear Anodized Aluminum

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Zero 364FS-AA 36" Intumescent Sill Protection Automatic Door Bottom with Neoprene & Intumet Insert  - Mortised - Heavy Duty - Clear Anodized Aluminum
More from Zero International
Price: $179.92 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 25 business days for any quantity beyond the above listed "in stock ready for shipment" quantity.

1-773-809-3667

Sales
Technical Support
Product Description:
Zero 364FS-AA 36" Intumescent Sill Protection Automatic Door Bottom with Neoprene & Intumet Insert - Mortised - Heavy Duty - Clear Anodized Aluminum

    • Intumescent Sill Protection Automatic Door Bottom
    • Mount: Mortised
    • Heavy Duty
    • Insert: Neoprene & Intumet
    • Finish: Clear Anodized Aluminum
    • Maximum effective drop: 0.500"
    • Rated for up to "B" label (1-1/2 hrs.)
    • Matching #364 End Caps are sold separately
    • Rated for 5 million cycles

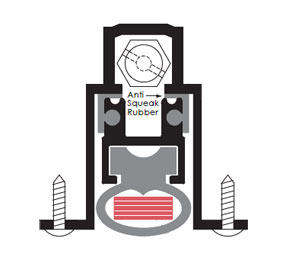

    • ZERO’s patented automatic door bottom technology ensures a tight seal against the floor or saddle. As the door is closed, an adjustable "plunger" is compressed against the door frame, activating a concealed flat spring mechanism. This mechanism drops the seal smoothly from the housing in a scissor-like motion as illustrated below. The door seal compresses tightly even on uneven surfaces and retracts automatically when the door is opened.
    • All ZERO automatic door bottoms function the same way. The concealed spring mechanism causes the insert seal to activate on the hinge side first. It prevents the seal from dragging along the floor or threshold while the door is being closed to avoid door hang-up or closing delay.
Dimensions
Questions and Answers
Q: Are intumescent seals or gaskets required on fire rated steel doors?
A: Intumescent seals or gaskets are not required on fire rated steel doors.

Generally speaking, the requirement for intumescent seals or gaskets are a function of the individual manufacturers’ listing.

Intumescent products are typically used for a smoke and fire barrier on wood doors and are activated by heat.

Given the basic properties of steel (e.g. it expands when exposed to heat), seals or gaskets are not required on steel doors.

Intumescent seal are specially designed weather stripping which expands when exposed to heat and fills the voids between two surfaces (the door and door frame) creating a fire seal.

(Required, used to email you once question is answered.)
