Zero 354A 36

Name: Zero 354A 36" Sill Protection Automatic Door Bottom with Solid Neoprene Insert - Mortised - Mill Finish Aluminum
Brand: Zero International
SKU: Zero 354A 36
Price: 85.17 USD

Zero 354A 36" Sill Protection Automatic Door Bottom with Solid Neoprene Insert - Mortised - Mill Finish Aluminum

× This image is for a similar product but it will differ in size, color and/or other attributes.

Zero 354A 36" Sill Protection Automatic Door Bottom with Solid Neoprene Insert - Mortised - Mill Finish Aluminum

Video Review Zero 354A Aluminum Automatic Door Bottom with Solid Neoprene

Price: $85.17 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 25 business days for any quantity beyond the above listed "in stock ready for shipment" quantity.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Zero 354A 36" Sill Protection Automatic Door Bottom with Solid Neoprene Insert - Mortised - Mill Finish Aluminum

Sill Protection Automatic Door Bottom
Mount: Mortised
Regular Duty
Insert: Solid Neoprene
Finish: Mill Finish Aluminum
Specify handing
Maximum effective drop: 0.500"
Fire Rated
Supplied with solid neoprene extrusion, self-extinguishing, under MIL R6855 Type II Class 40 oil resistant
Rated for 5 million cycles

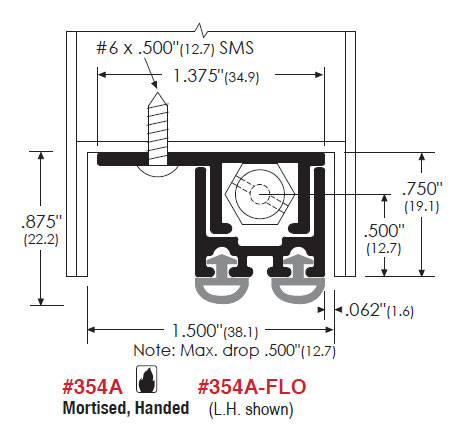

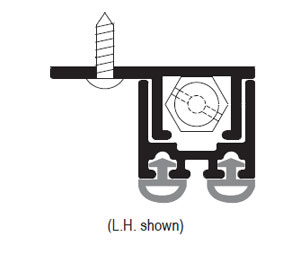

ZERO’s patented automatic door bottom technology ensures a tight seal against the floor or saddle. As the door is closed, an adjustable "plunger" is compressed against the door frame, activating a concealed flat spring mechanism. This mechanism drops the seal smoothly from the housing in a scissor-like motion as illustrated below. The door seal compresses tightly even on uneven surfaces and retracts automatically when the door is opened.
All ZERO automatic door bottoms function the same way. The concealed spring mechanism causes the insert seal to activate on the hinge side first. It prevents the seal from dragging along the floor or threshold while the door is being closed to avoid door hang-up or closing delay.
