Home > Weatherstripping > Thresholds > Offset Type > Mill Finish > 5 1/2" Wide > 3/4" High > 1/2" Offset > Pemko 157A 36

Pemko 157A 36

Name: Pemko 157A 36" Mill Finish Aluminum Offset Threshold
Brand: Pemko
SKU: Pemko 157A 36
Price: 61.46 USD

Pemko 157A 36" Mill Finish Aluminum Offset Threshold

× This image is for a similar product but it will differ in size, color and/or other attributes.

Pemko 157A 36" Mill Finish Aluminum Offset Threshold

Video Review Pemko 157A Mill Finish Aluminum Commercial Half Saddle Threshold

Price: $61.46 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $165.00 minimum purchase of Pemko products or 17 business days for smaller orders.

Pemko has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


Pemko 157A 36" Mill Finish Aluminum Offset Threshold

Offset Threshold Length: 36" Width: 5 1/2" Height: 3/4" Offset: 1/2" Material: Aluminum Finish: Mill Finish Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length Symmetrical shapes designed to span a given area, usually under a door To use a saddle threshold in an offset condition, use an elevator (Product # 183 or 183ALT) Fire Rated BHMA Certified	Installation Instructions

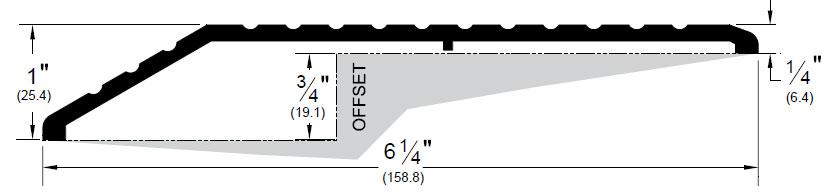

Dimensions

Click to enlarge image

Video Review of Pemko 157A Mill Finish Aluminum Commercial Half Saddle Threshold

Video Detail Page

Questions and Answers

Q: Hi Richard, I need a 36" wide half saddle threshold mill finish aluminum for the condition on the attached diagram as seen here:

View Image

The height differential is 1-3/4". Please help! Thanks, -- Josh F

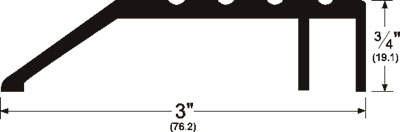

A: you can transition this by using multiple pieces as illustrated here:

Download File

using the items as seen here:

View Image

Is the concept coming together for you how you might piece multiple items on top of each other? Obviously you will need custom length fasteners.

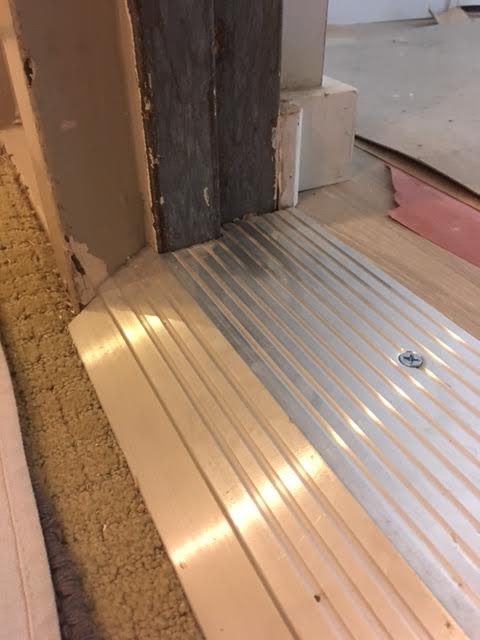

Q: This worked very nicely, thanks again for your help and seeing is believing! I did have to rip down the back of the top piece to flush out with the baseboard. I also did not need the 1/4" shoe piece. and photos of the completed work can be reviewed here:

View Image

A: Thank you for the photos as they will allow other clients to solve similar common problems when contending with the disbelief this configuration will work.

(Required, used to email you once question is answered.)
