Salice America UBCSR3D99NR

Name: Salice America UBCSR3D99NR One Piece Self-Closing Face Frame Hinge for 1-7/16" Overlay, Dowel - Nickel-Plated Finish
Brand: Salice America
SKU: Salice America UBCSR3D99NR
Price: 3.87 USD

Salice America UBCSR3D99NR One Piece Self-Closing Face Frame Hinge for 1-7/16" Overlay, Dowel - Nickel-Plated Finish

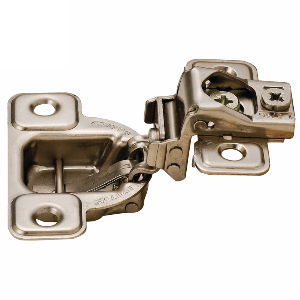

× This image is for a similar product but it will differ in size, color and/or other attributes.

Salice America UBCSR3D99NR One Piece Self-Closing Face Frame Hinge for 1-7/16" Overlay, Dowel - Nickel-Plated Finish

Price: $3.87 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Vernon Hills, IL Warehouse Qty: 214

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Salice America UBCSR3D99NR One Piece Self-Closing Face Frame Hinge for 1-7/16" Overlay, Dowel - Nickel-Plated Finish

One Piece Self-Closing Face Frame Hinge
Three Cam Adjustment
Salice Excen-three face frame hinges have all steel one piece construction with nickel plating to resist corrosion and have a lifetime warranty
A cup depth of only 11mm allows this hinge to be used on most door styles
Excen-three, three cam adjustment hinges provides: cam depth adjustment (+2.8mm to -0.5mm), cam lateral adjustment (+3mm to -2mm) and cam height adjustment (+/-2mm)
Hinge cup edge drilling distance is 2.5mm
Excen-three hinges with overlays of 1/2" and greater have "zero door protrusion"
Hinge is designed to work with cabinet doors up to 3/4" thick
Excen-three hinges are available in two cabinet door fixing designs: "Screw-On" via two #6 x 5/8" wood screws (not included) and "Press-In" 8mm dowels
All hinges are self-closing design
Excen-three face frame hinges are designed to work with Salice Type U soft-close devices
Opening Angle: 106°
Overlay: 1-7/16"
Fixing Type: Dowel
Boring Pattern: 45 mm
Closing Type: Self-Closing
Mounting Type: Side Mount
Box Quantity: 50 Each
Cup Depth: 11 mm
MPN Code: CSR3D99NR
Packing: 50 hinges per box. Sold in both broken and full box quantities.
Unit of measure is EA and Boxes. Each Box contains 50 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 50 you will get one box which contains 50 hinges. Price is for one hinge.
