Salice America UBC277M99AC

Name: Salice America UBC277M99AC Positive 45 Degree Angle Self-Closing, Dowel
Brand: Salice America
SKU: Salice America UBC277M99AC
Price: 7.96 USD

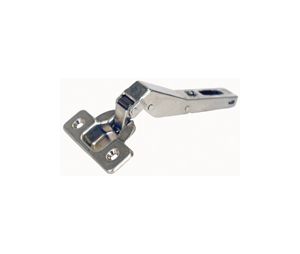

Salice America UBC277M99AC Positive 45 Degree Angle Self-Closing, Dowel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Salice America UBC277M99AC Positive 45 Degree Angle Self-Closing, Dowel

Video Review Salice America UBC277M99AC Positive 45 Degree Angle Self-Closing, Dowel

Price: $7.96 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Vernon Hills, IL Warehouse Qty: 45

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Salice America UBC277M99AC Positive 45 Degree Angle Self-Closing, Dowel

Positive Angle Hinge
+/-45 Degree
Series 200 positive angle hinges are designed for use in both residential and commercial cabinets
Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications
All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants
Cup depth of only 11mm making the hinge compatible with most cabinet door profiles
Hinge cup edge drilling distance of 3mm to 6mm
Patented parallel side-to-side adjustment of +4.5mm to -1.5mm via hinge arm screw
Available in four cup fastening designs: "Screw-on" with two #6 x 5/8" screws (not included), "Press-in" dowels, "Rapido" cam lock dowel and "Logica" tool free lever activated expanding dowels
Series 200 hinges are designed to work with all Salice mounting
Series 200 hinges are compatible with Smove soft-close devices
Fixing Type: Dowel
Boring Pattern: 45mm
Closing Type: Self-Closing
Application: 45
Box Quantity: 50 Each
MPN Code : C277M99AC
Packing: 50 hinges per box. Sold in both broken and full box.
Unit of measure is EA and Boxes. Each box contains 50 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 50 you will get one box which contains 50 hinges. Price is for one hinge.
