McKinney MPS6041226D

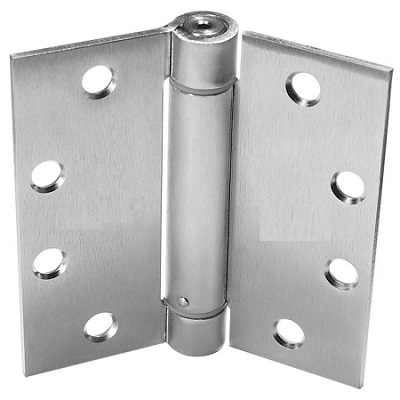

Name: McKinney MPS6041226D 4-1/2" x 4-1/2" MacPro Spring Ball Bearing Hinge Hinge, 3-Knuckle, Standard Weight - Satin Chrome Finish
Brand: McKinney
SKU: McKinney MPS6041226D
Price: 16.68 USD

McKinney MPS6041226D 4-1/2" x 4-1/2" MacPro Spring Ball Bearing Hinge Hinge, 3-Knuckle, Standard Weight - Satin Chrome Finish

× This image is for a similar product but it will differ in size, color and/or other attributes.

McKinney MPS6041226D 4-1/2" x 4-1/2" MacPro Spring Ball Bearing Hinge Hinge, 3-Knuckle, Standard Weight - Satin Chrome Finish

Price: $16.68 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

McKinney MPS6041226D 4-1/2" x 4-1/2" MacPro Spring Ball Bearing Hinge Hinge, 3-Knuckle, Standard Weight - Satin Chrome Finish

Spring Hinge
Finish: Satin Chrome
Height: 4.5"
Width: 4.5"
Fasteners:
- Machine: 1/2 x 12-24
- Wood: 1-1/4 x 12
Gauge: .134
Material: Steel
Number of Knuckles: 3
Number of Holes: 8
Square Corner
Ball Bearing
Standard Weight
Recommended for standard weight hinge applications requiring self-closing control, such as apartments, hotels, motels, dormitories, office buildings, etc
Spring hinges are an alternative to door closing devices. Generally two hinges on the door must be spring hinges to provide adequate closing force NFPA requires a minimum of two (2) spring hinges on labeled doors
MacPro by McKinney templated hinges are made to conform to ANSI/BHMA 156.1, 156.7, 156.17
Note: Specifications of product in image may differ from product being sold
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
