McKinney EP5J26D

copy to clipboard

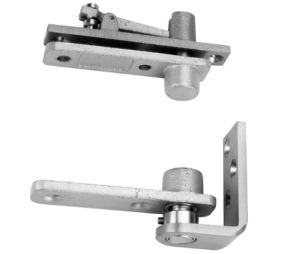

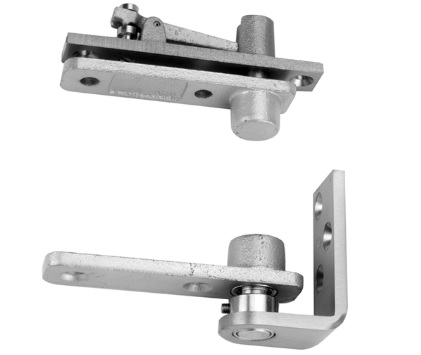

McKinney EP5J26D Rescue Hardware Pivot Set - Satin Chrome Finish

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
McKinney EP5J26D Rescue Hardware Pivot Set - Satin Chrome Finish
More from McKinney
Price: $215.19 USD
Ships From
Comments (Optional)
ADD TO CART
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.
+ Add to My Wish List

1-773-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
McKinney EP5J26D Rescue Hardware Pivot Set - Satin Chrome Finish
  • Rescue Hardware Pivot Set
  • Center Hung
  • Mortised into side jamb
  • Full mortise top pivot
  • Non-handed
  • Used in conjunction with CSS-9 Combinations Strike and Stops and DS-6 Emergency Door Stops
  • Thrust steel ball bearing in bottom pivot, oil impregnated bronze bearing in top pivot
  • 15/32 radius heel edge of door
  • Maximum Door Weight (interior or exterior) up to 135 lbs 3'6" x 8'0"
  • All EP-5J Pivot sets are packed with 14 x 1-1/2" wood screws and 1/4-20 x 5/8" machine screws
  • Recommended for installations on average frequency double acting doors in schools, hospitals, institutions and other public buildings
  • Ferrous base pivot set polished and plated
  • ANSI Cross Reference: C07042
  • Finish: Satin Chrome
  • Note: Specifications of product in image may differ from product being sold
  • Packing & Sold as: Each.
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
