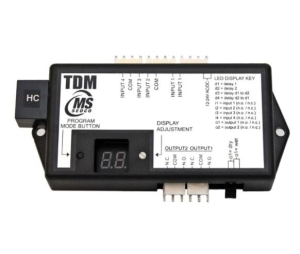

MS Sedco TDMHC

Name: MS Sedco TDMHC Time Delay Module, Provides up to 4 Inputs, Can be Converted to Sequential Relay Outputs, Each Output Adjustable 0-99 Seconds, High Current
Brand: MS Sedco
SKU: MS Sedco TDMHC
Price: 136.77 USD

MS Sedco TDMHC Time Delay Module, Provides up to 4 Inputs, Can be Converted to Sequential Relay Outputs, Each Output Adjustable 0-99 Seconds, High Current

× This image is for a similar product but it will differ in size, color and/or other attributes.

MS Sedco TDMHC Time Delay Module, Provides up to 4 Inputs, Can be Converted to Sequential Relay Outputs, Each Output Adjustable 0-99 Seconds, High Current

Price: $136.77 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

MS Sedco TDMHC Time Delay Module, Provides up to 4 Inputs, Can be Converted to Sequential Relay Outputs, Each Output Adjustable 0-99 Seconds, High Current

The TDM-HC is a multipurpose microprocessor based timing module that can be used for a variety of applications. Its unique design and open architecture allows the TDM-HC to be used in any type of application that requires timing control of up to two outputs with up to four inputs.

Power: 12 to 24 V AC or DC
Power Consumption: 2W Maximum
Output Contact: Form C, Rated At 20 Amps
Temperature: -22°F to 158°F (-30°C to 70°C)
Color: Flat Black
Enclosure: ABS Plastic
Weight: 0.25 lb
Physical Size: 5"L x 2 1/8"W x 3/4"H
Easily set-up on site or in advance using the LED Display
Settings are stored in memory so TDM-HC remembers settings (even after power failure)
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
