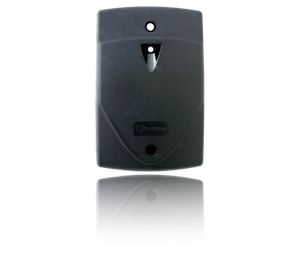

Keri Systems NXT-5RE

The NXT-5R Wall Switch Readercan be mounted on a US single gang electrical box or flat on a wall. Read range is up to 6” (15 cm) when mounted at least 1” (2.5 cm) off metal. Read range will be slightly reduced if the reader is mounted using a metal electrical junction box with only the thickness of the wall material separating the reader from the box.

• Exit/egress version
• Sleek Attractive Packages with Ultra Thin Profile
• Supervised by Controller for Immediate Notification of Failure
• Better Read Range Performance than Competing Products of Similar Size
• Encrypted Data Between Reader and Card or Tag
• Reduce Reader Cabling Costs by using Shielded CAT-5
• 1,000' (300 Meters) Wiring Distance from Controller
• Size:4.18” H x 2.95” W x 0.625” D (10.6 cm x 7.5 cm x 1.6 cm)
• Weight: 3.5 oz. (99 g)
• Read Range: up to 6 inches (15.24 cm)
• Input Power: 10 -14 VDC @ 85 mA typical
• Operating Temperature: -40°F to 149°F (-40°C to 65°C)
• LED Indicator: Tri-Color Standard(Red, Green, Amber, Off )
• Audio Tone: Standard
• Reader Interface: RS-485, 4 conductor, shieldedor CAT-5, shielded
• Color: Black
• Product Type: Card Reader
• Security Lock UID: KER100NXT5RE
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
