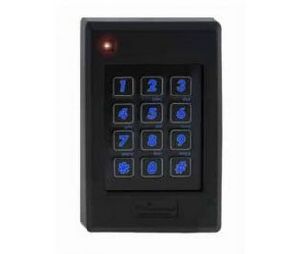

Keri's NXT-6RK is the newest member of the NXT Series Proximity Reader family. The NXT-6RK may be mounted directly to standard U. S. A. sized single-gang wall boxes, and is ideal for applications requiring an access credential and/or personal identi cation number (PIN), such as high security dual veri cation. It connects to an NXT Controller via the NXT-RM-3 Reader Interface Module to allow the Wiegand format keypad data to be read by the controller while at the same time reading standard NXT formatted cards. The NXT-6RK and NXT-RM3 are sold as a kit together (NXT-KPK) as well as individually.
Keypad data is transmitted via the reader's data lines in either an 8-Bit Burst or 26-Bit Wiegand data format, depending upon the PIN length required by the customer. The alpha-numeric keypad itself makes use of a durable (no moving parts), non-mechanical capacitive technology. It includes advanced enhancements including blue backlighting and a continuously illuminated 5-key, both for orientation at night, tactile feedback, and a raised "pip" on the 5-key for use by visually impaired individuals.
Mounting is simpli ed with horizontal and vertical mounting slots instead of holes which allows the reader to be conveniently adjusted and leveled. To allow both indoor and outdoor operation the electronics are sealed in tamper resistant epoxy potting. Concealing the mounting hardware, the NXT-6RK ships with both black and white covers standard to match building decor.
