Grass America GF148.405.08.0315

Name: Grass America GF148.405.08.0315 Positive 45 Degree Angle Corner Hinge, Self-Closing, Dowel
Brand: Grass America
SKU: Grass America GF148.405.08.0315
Price: 20.62 USD

Grass America GF148.405.08.0315 Positive 45 Degree Angle Corner Hinge, Self-Closing, Dowel

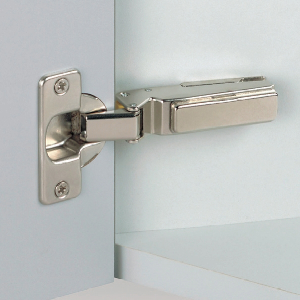

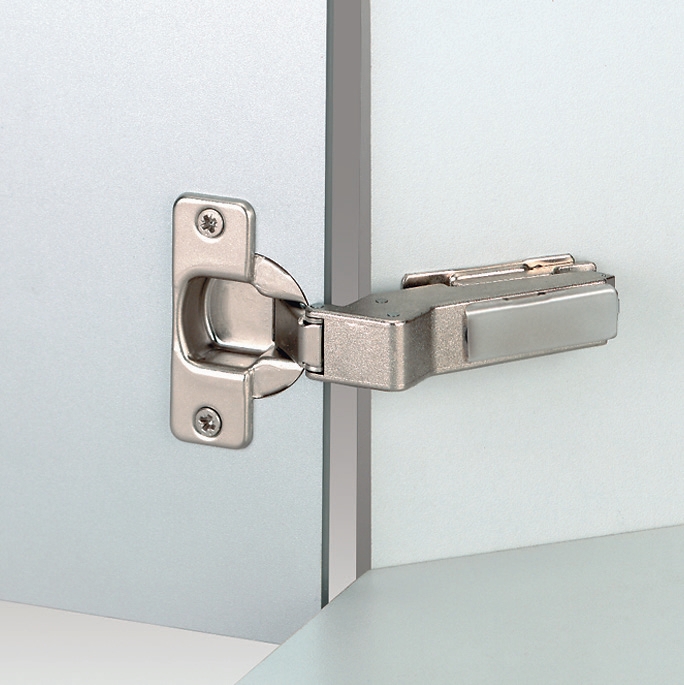

× This image is for a similar product but it will differ in size, color and/or other attributes.

Grass America GF148.405.08.0315 Positive 45 Degree Angle Corner Hinge, Self-Closing, Dowel

Price: $20.62 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Vernon Hills, IL Warehouse Qty: 39

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Grass America GF148.405.08.0315 Positive 45 Degree Angle Corner Hinge, Self-Closing, Dowel

Positive 45 Degree Angle Corner Hinge
+30 Degree and +45 Degree
Grass America's Nexis & Nexis Impresso (tool-less cabinet door fastening design) angled hinges are designed for frameless and face frame cabinets
Cup depths of 11.8mm (Nexis) and 12mm (Nexis Impresso)
Hinge cup edge drilling distance of 3mm to 6mm
Single screw side-to-side adjustment of +1mm to -3mm
Positive angle hinges can be used with doors up to 30mm (1-3/16") thick, negative angle hinges can be used with doors up to 19mm (3/4") thick
Available in three cup fastening designs: "Screw-on" with two #6 x 5/8" screws (not included), "Doweled" and Tool-less "Impresso"
Screw-on and Doweled hinges feature stamped steel cup. Tool-less "Impresso" hinges feature die-cast steel cup and closing flap with all metal construction for positive andsecure attachment to cabinet door
Nexis hinges are compatible with Grass soft-close devices
Nexis hinges are designed to work with Grass mounting plates
Fixing Type: Dowel
Boring Pattern: 45mm
Closing Type: Self-Closing
Application: +45°
Box Quantity: 125 Each
MPN Code :148.405.08.0315
Packing: 125 hinges per box. Sold in both broken and full box.
Unit of measure is EA and Boxes. Each box contains 125 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 125 you will get one box which contains 125 hinges. Price is for one hinge.
