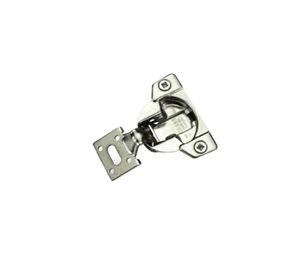

Grass America GF04616-16 One Piece Face Frame Hinge, 7/16" Overlay, Dowel, Side Mount
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
2.73 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
Naples, FL Warehouse Qty: 2
In Stock (Minimums Apply
):
Vernon Hills, IL Warehouse Qty: 3541
Kansas City, MO Warehouse Qty: 1
For quantities beyond the "In Stock" above, the item(s)
ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $35.00 worth of product from Grass America to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Grass America GF04616-16 One Piece Face Frame Hinge, 7/16" Overlay, Dowel, Side Mount
One Piece Face Frame Hinge
The Grass TEC 861 is an economy priced one piece face frame hinge
Made in USA - all metal construction exceeds industry standards for weight and closing cycles
Hinge features a shallow cup depth of 10.5mm (13/32") - perfect for edge profile doors
Face frame mounting plate has locating tabs for easy fastening to face frames
Drilling distance for all overlays is 2.5mm (3/32") from door edge
For door thickness from 1/2" to 3/4"
Use #8 x 3/4" pan head screw to mount to face frame and #6 x 5/8" flat head screws to attach hinge cup to door
Side adjustment can be achieved using 1/16" spacer
Opening Angle: 108°
Overlay: 7/16"
Fixing Type: Dowel
Boring Pattern: 42 mm
Mounting Type: Side Mount
Cup depth: 10.5mm
Type: One-Piece Assembly
Box Quantity: 400 Each
MPN Code: 04616-16
Packing: 400 hinges per box. Sold in both broken and full box quantities.
Unit of measure is EA and Boxes. Each Box contains 400 hinges. When you are purchasing a quantity of 1 you will get one hinge. When you are purchasing a quantity of 400 you will get one box which contains 400 hinges. Price is for one hinge.
