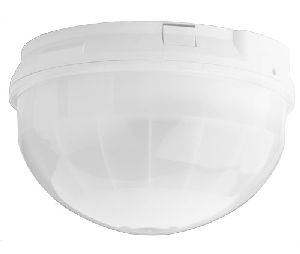

Detection Systems DS938Z

The DS938Z Panoramic Detector provides PIR, 360 Deg. X 60 Ft. (18 m) diameter coverage and 8 Ft. to 18 Ft. (2.5m to 6m) mounting height.

• Current: 18 mA at 12 VDC
• Voltage: 6 VDC to 15 VDC
• Alarm: Form C reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads
• Tamper: Normally-closed. Contacts rated at 28 VDC, 125 mA maximum
• Dimensions: 3.3" x 5.25" (8.4 cm x 13.3 cm)
• Material: High impact ABS plastic enclosure
• Height range: 8 ft. to 18 ft. (2.5 m to 6 m)
• Mounting Location: Mounts directly to ceiling or to standard octagonal electical box
• Operating Temperature: -20°F to +120°F (-29°C to +49°C) for UL Certificated installations, +32°F to +120°F (0°C to +49°C)
• Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1000 MHz at 50 V/m
• Complies with Environmental Class II (EN50130-5)
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
