Detection Systems DS936

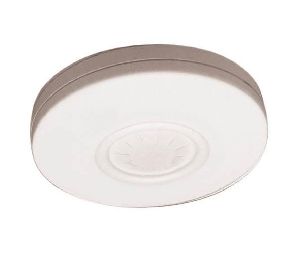

The DS936 Series Low Profile Panoramic PIR Detector provides enhanced signal processing, 360 Deg. X 24 Ft. (7.5 m) pattern, mounts to surfaces or mounts semi-flush into a ceiling.

• Current Draw: 20mA at 12VDC
• Voltage: 10 VDC to 15 VDC
• Alarm: Normally-closed reed relayrated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 O resistor in the common C leg
• Tamper: Normally-closed cover activated tamper switch with separate terminals. Tamper contacs rated 125 mA at 28 VDC maximum
• Dimensions: 1.2" x 4.6" (3.05 cm x 11.7 cm)
• Height range: 7 ft. to 12 ft. (2 m to 3.6 m)
• Material: High impact ABS plastic enclosure
• Pattern pointability: ±15° rotational
• Mounting Location: Surface or semi-flush on ceiling or on standard 4" (10 cm) octagonal electrical box
• Operating Temperature: -20°F to +120°F (-29°C to +49°C) for UL Certificated installations, +32°F to +120°F (0°C to +49°C)
• Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
