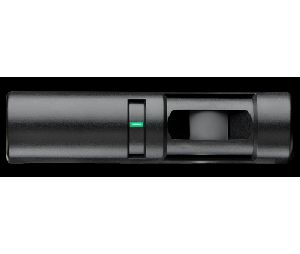

Detection Systems DS161

The DS160 Series Request to Exit Detector provides PIR 8 Ft. x 10 Ft. (2.4m x 3m) coverage. Features include door monitor with sounder alert, sequential logic input (SLI), internal vertical pointability, wrpa around coverage pattern with precise pattern cntrol, up to 64 second adjustable latch time, selectable relay trigger mode, selectable fail safe or fail secure modes, adjustable sounder volume and activation LED.

• Current Draw: 8mA nominal standby current, 39mA at 12 VDC in alarm
• Voltage: 12 VAC or VDC to 30 VAC or VDC
• Alarm Output: Two Form C relay contacts each rated 1 A at 30 VAC or VDV for resistive loads
• Indicators: One activation LED
• Relay Latch Time: Adjustable from 0.5 sec to 64 sec
• Dimensions: 1.8" x 6.75" x 1.75" (4.5 cm x 17.1 cm x 4.4 cm)
• Material: High impact ABS plastic enclosure
• Power Loss Default Mode: Programmable fail-safe or fail-secure modes
• Timer: Programmable reset (accumulative) or non-reset (counting) mode
• Mounting Location: Surface mount on wall or ceiling
• Complies with Environmental Class II (EN50130-5)
• Operating Temperature: -20°F to +120°F (-29°C to +49°C) For UL Certificated installations, +32°F to +120°F (0°C to +49°C )
• Radio Frequency Interference (RFI) Immunity: No alarm or setup on critical frequencies in the range from 26 MHz to 1000 MHz at 50 V/m
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
