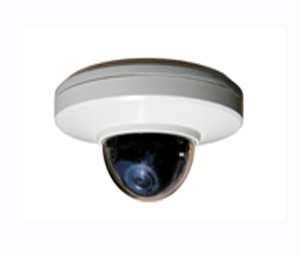

Model: IPLP2TF
Features:
- Superior 2MP Full HD, 1920 x 1080 Resolution
- Day/Night Functionality for Low-light Applications
- Highly Efficient H.264 Video Compression which Drastically Reduces Bandwidth and Storage Requirements
- Progressive Scanning for Sharper Video Motion Images
- 3.7mm Wide Angle, Fixed Lens
- Three Video Streams Simultaneously, up to 30-ips, at 1080p Resolution using H.264 and MJPEG Compression
- Supports a Micro-SD Memory Card Slot for Local, Event Detection Recording
- Backlight Compensation and Auto White Balance
- Motion Detection (8 Windows), Privacy Masking (8 Windows) and FTP Image Upload
- Up to 10 Simultaneous Connections through Remote Monitoring
- View and Record up to 64 Cameras and View and Manage an Unlimited Number of ATV NVR Units with included ATVision IP Remote Management Software
- ONVIF Profile S Compliant for Network Video Interoperability
- PoE / 12VDC Power Options
- Tough Polycarbonate Interior Dome Housing with 3-Axis Gimbal
- Auto Power Switch, Hot Failover Capability
Camera:
- Image Sensor: 1/2.8" Progressive Scan Sony CMOS Sensor
- Active Array: 1920 (H) x 1080 (V)
- Lens: Fixed Lens, F1.8
- Angle of View: 89 ° (H) x 46.0 ° (V)
- Min. Illumination: Color: 0.2 Lux, B/W: 0.2 Lux
- Shutter Speed: 1/20,000 ~ 1/30 (slow shutter 1/15, 1/8 and 1/4)
Network:
- Video Compression: Motion JPEG, MPEG-4 Part 2, H.264 (MPEG-4 Part 10), Profiles: H.264 MP and BP, MPEG-4 ASP and S
- Video Streaming: Simultaneously H.264 (or MPEG-4) and MJPEG Controllable Frame Rate and Bandwidth VBR/CBR H.264 and MPEG-4
- Video Resolutions: 320 x 240 ~ 1920 x 1080
- Frame Rate: 30fps @ all resolutions
- Protocol: TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
- Security: Multi-user authority, HTTPS, IP Filtering, Privacy Zone
- Max. Connection: 10
- API Programming Interface: API Supported, Open Platform Compatible: ONVIF
- Alarm In / Out: In: 1 Ext input, Motion Detection, Manual Trigger; Out: 1 Ext output
- Alarm Events: File Upload via FTP and HTTP, Notification via Email, HTTP and TCP
- Video Buffering: Pre and Post Alarm
- Motion Detection: Yes, Max. 8 programmable zone
- Network Time Synchronization: Yes
- SD Recording: Yes, Continuous / Event
- Software Reset: Yes
- Factory Reset: Yes, Button/Web browser
- Auto Recovery: Yes
- Installation Tool: SmartManager, ATVision IP
- Upgrade: ATVision IP/Web browser/SmartManager
General:
- Ethernet: RJ-45 10BASE-T/100BASE-TX
- Micro-SD Card: Micro-SDHC class 6 or above recommended (max 32GB)
- Operating Temperature: 14 °F ~ 104 °F (-10 °C ~ 40 °C)
- Operating Humidity: 0~80% (non-condensing)
- Power Consumption: DC 12V 375mA, 4.5W / PoE 93mA, 4.5W Power over Ethernet IEEE 802.3af Class0
- Dimension (W x H x D): ø4.5 x 2.1" (ø115 x 55mm)
- Unit Weight: 0.52 lbs. (0.235kg)
- Conformity Certifications: FCC, CE
|
