ATV ATV-VDM700DN

Name: ATV ATV-VDM700DN Vandal Dome Camera
Brand: ATV
SKU: ATV ATV-VDM700DN
Price: 38.67 USD

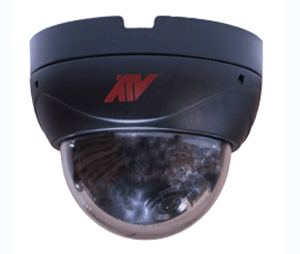

ATV ATV-VDM700DN Vandal Dome Camera

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $38.67 USD

Comments (Optional)

This item is not in stock and typically ships in 1 business day.

Sales

Technical Support

Product Description:

ATV ATV-VDM700DN Vandal Dome Camera

Model: VDM700DN

Features:

Ultra-High, 700TVL Resolution
1/3" Sony Exview HAD CCD II
Digital Day / Night Functionality for Low Light Conditions
3.6mm Fixed Lens
Minimum Scene Illumination of 0.05 Lux (Color) @ F2.0
2D-DNR (Digital Noise Reduction) Technology for Increased Picture Quality and Smaller Recorded Digital File Sizes
IP67 Weatherproof Rated, Vandal Resistant Housing 3-Axis Gimbal Adjustment 12VDC Power Source

Specifications:

General:
- Signal Format: NTSC
- Image Device: SONY 1/3" Exview HAD CCD II
- Scanning Frequency: H: 15.734KHz, V: 59.94Hz
- Total Pixels: 1020 (H) x 508 (V)
- Effective Pixels: 976 (H) x 494 (V)
- IP Rating: IP 67
- Electronic Shutter: 1/60 ~ 1/100,000 sec.
- Sync System: Internal
- Scanning System: 2:1 Interlace

Video:
- Resolution: 700TV Lines
- S/N Ratio: More than 50dB (AGC Off)
- Gamma: R=0.45
- Video Output: 1.0 Vp-p Composite 75(W)

Mechanical:
- Lens: Board
- Operating Temperature: 14 °F ~ 122 °F (-10 °C ~ +50 °C)
- Storage Temperature: -4 °F ~ 140 °F (-20 °F ~ +60 °C)
- Min. Illumination: 0.05 Lux / F2.0
- Operating Humidity: Less than 80%
- Power Consumption: DC 12V (+/- 10%) Max 110mA
- Diimensions (Dia. X H): 3.2" x 2.5" (82.2mm x 63.6mm)
- Conformity Certifications: FCC
