Features

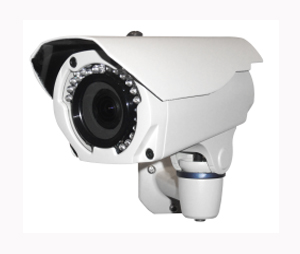

- Model: IPB1MTI
- Camera:
- Image Sensor: 1/2.8" Progressive Scan RGB CMOS
- Active Array: 1280 (H) x 720 (V)
- Lens: Motorized Varifocal 3.0mm-9.0mm, F1.2, DC IRIS
- Angle of View: 3.0mm – 93° (H) / 9.0mm – 31.7° (H)
- Camera Angle Adjustment: Pan: 360°, Tilt: 180°, Rotation: 360°
- Min. Illumination: Color: 2.5 Lux, B/W: 0.0 Lux (1.2, 50IRE with IR On)
- Shutter Speed: 1/20,000 ~ 1/30
- IR LED:32 lamp diodes; 80ft (25M) range
- Network:
- Video Compression: Motion JPEG, MPEG-4 Part 2, H.264 (MPEG-4 Part 10), Profiles: H.264 MP and BP, MPEG-4 ASP and SP
- Video Resolutions: 320 x 240 ~ 1280 x 720
- Frame Rate: 30fps @ All Resolutions
- Video Streaming: Simultaneously H.264 (or MPEG-4) and MJPEG Controllable Frame Rate and Bandwidth VBR/CBR H.264 and MPEG-4
- Protocol: TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, SNMP, uPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf, Bonjour
- Security: Multi-user authority, HTTPS, IP Filtering, Privacy Zone
- Remote Access: ATVision IP Remote Management Software, Web Browser
- Max. Connection: 10
- Compatible 3rd Party VMS: Yes
- Alarm Triggers: Motion Detection, External Input, Manual Trigger
- Alarm Events: File Upload via FTP and HTTP, Notification via Email, HTTP and TCP, External Output Activation
- Video Buffering: Pre and Post Alarm
- Motion Detection: Yes, Max. 8 Programmable Windows
- Network Time Synchronization: Yes
- Micro-SD Card Recording: Yes, Event
- Software Reset: Yes
- Factory Reset: Yes, Button/Web Browser
- Auto Recovery: Yes
- Installation Tool: Yes, SmartManager (Included Utility Software)
- Upgrade: Yes, Web browser/SmartManager (Included Utility Software)
- General:
- Video Output 1.0Vp-p @ 75ohm (CVBS)
- Ethernet RJ-45 10BASE-T/100BASE-TX
- Micro-SD Card Micro-SDHC class 6 or above recommended
- Operating Temperature -40° ~ 122°F (-40° ~ +50°C)
- Operating Humidity 0~90% (non-condensing)
- Power Consumption DC12V 700mA; Power over Ethernet IEEE, 802.3af Class 2/3
- Environmental Rating IP67
- Dimension (W x H x D) 3.9" x 7.0” x 11.4" (98.4mm x 177.5mm x 290.4mm)
- Unit Weight 2.4 lbs. (1.1kg)
- Conformity Certifications FCC, CE, UL
- Minimum System Requirements for: ATVision IP, Remote-Management, Software: Operating system: Microsoft Windows 7 (or 8) Professional/Enterprise/Ultimate, CPU: Intel Core i7; RAM: 4GB; Ethernet Connection: 1Gbps, Graphics Card: Gaming Rated, with 1GB at 1080p for Single Monitor; 2GB at 1080p for Multiple Monitors, Hard Disk Drives: 7200RPM and 64MB Cache; 1 Separate HDD for Operating System and Software; and 1 (2TB) HDD for Recording (Refer to IP Storage Calculator)
|
