ATV ATV-BSS7212

Name: ATV ATV-BSS7212 Bullet Camera with Varifocal DC Auto-Iris ICR
Brand: ATV
SKU: ATV ATV-BSS7212
Price: 176.60 USD

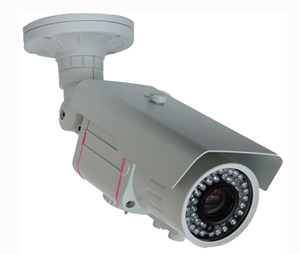

ATV ATV-BSS7212 Bullet Camera with Varifocal DC Auto-Iris ICR

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $176.60 USD

Comments (Optional)

This item is not in stock and typically ships in 1 business day.

Sales

Technical Support

Product Description:

ATV ATV-BSS7212 Bullet Camera with Varifocal DC Auto-Iris ICR

Features

General:
- Power Consumption: 650mA (IR LED On)
- Power Source: 12VDC / 24VAC (+-10%)
Video:
- Electronic Shutter: 1/60 ~ 1/100,000 sec
- Sync. System: Internal
- Scanning System: 2:1 Interlace
- Picture Elements: 976(H) x 494(V)
- Image Sensor: 1/3" Sony Super HAD CCD II
- Resolution: 700TVL
- Min. Illumination: 0.1 lux (Color); 0.01Lux B/W (IR LED On)
- Video Output: 1.0Vp-p @ 75ohm, composite
- S/N Ratio: >58dB
- IR LED/SENSOR: 42ea / Photo Sensor 1ea
- IR LED Lighting Distance: 100ft (30M)
- Camera Control: Internal Tactile Joystick
Function:
- Motion Detection: OFF / ON
- Gamma: 0.45
- BLC: OFF / BLC / HLC
- 2D-DNR: NR-MODE / Y Level / C Level
- Digital WDR: OFF / ON
- White Balance: ATW
- Day & Night: EXT1 / B&W / Color / Auto / EXT2
- Privacy Masking: OFF / ON
- Gain: Auto
Connector:
- Power Input: 3-Pin Terminal Block
- Video Output: BNC
- Lens: 2.8-12mm Varifocal DC Auto-Iris ICR
- Operating Temperature: 14ºF~122ºF (-10ºC~+50ºC)
- Operating Humidity: 0~80% (RH)
- IP Rating: IP66
- External Dimension: 3.2" x 3.8" x 12" (81 mm x 97 mm x 305 mm)
- Weight: 2.4lbs (1.09kg)
- Conformity Certifications: FCC
