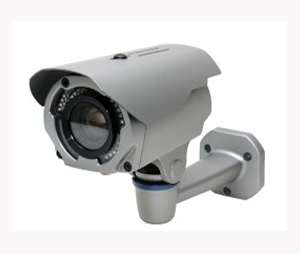

ATV ATV-BHR7550LR Bullet Camera with Varifocal DC Auto-Iris ICR
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
404.17 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
ATV ATV-BHR7550LR Bullet Camera with Varifocal DC Auto-Iris ICR
Features
Model: BHR7550LR
Power:
Power Source: 12VDC / 24VAC (-10%, +15%)
Power Consumption DC12V: 150mA (1.9W) IR & Heater Off, 350mA (4.2W) IR ON/Heater Off, 880mA (10.5W) IR & Heater ON
Power Consumption AC24V: 220mA (2.6W) IR & Heater Off, 390mA (5W) IR ON/Heater Off, 1.56A (33.4W) IR & Heater ON
General:
Image Sensor: 1/3” Sony EXview HAD CCD II
Total Number of Pixels: 1020(H) x 508(V)
Scanning System: 2:1 Interlace
Scanning Frequency: 15.734KHz(H) x 60Hz(V)
Sync. System: Internal
Electronic Shutter: 1/60 ~ 1/10,000 sec
Video:
Resolution: 700 TVL
Min. Illumination: 0.1 lux (Color) @ F1.2, 50 IRE, 0 Lux (IR LED ON)
Video Output: 1.0Vp-p @ 75ohm, Composite
S/N Ratio: >50dB (AGC OFF, Sense up OFF)
IR LED/SENSOR: IR LED 45ea / Photo Sensor 1ea
IR LED Lighting Distance: 160 Feet (50M)
Camera Control: External Remote Control
Function:
Exposure: Auto Iris / Auto Iris + Electronic Shutter
Motion Detection: Off / On, 4 Zones
Brightness: 0 ~ 255
BLC: OFF / BLC / HLC
AGC: OFF / ON
2D-DNR: OFF / Y / C / Y,C
ATR - Adaptive Tone Reproduction: Luma (L/M/H), Contrast (L/LM/M/MH/H), Digital-WDR
White Balance: ATW / Push / User 1 / User 2 / Anti CR / Manual / Push Lock
Day & Night: AUTO
Privacy Masking: 0 - 4 Zones
Gain: 0 - 255
Contrast: 0 - 255
Sharpness: 0-255
Mirror: Off / On
HUE: 0 - 255
Smart IR: Off / On / Level
Connector & Mechanical:
Power Input: 2-Pin Terminal Block
Video Output: BNC
Lens: F=5-50mm F1.2~360 Varifocal DC Auto-Iris ICR
Operating Temperature: -22ºF ~ 122ºF (-30ºC ~ +50ºC) 12VDC Power, ">-40ºF ~ 122ºF (-40ºC ~ +50ºC) 24VAC Power
Operating Humidity: 0 ~ 96% (Non-condensing)
IP Rating: IP67
External Dimension: 3.9" x 7" x 10.4" (98.4 mm x 177.5 mm x 263.5 mm)
Conformity Certifications: FCC, UL, CE, RoHS
Specifications
Product Sheet
