Q: does this have a locking mechanism
A: This unit doe not feature a locking mechanism and is only a blank exterior trim.
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: I have one of these already; it has a lock. Do you offer one that has a lock?
A: Indeed we do. this video will help address the other items you may need for this lock system:
View video
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: i need this item but exterior piece and interior piece with a locking mechanism for the sliding door on my boat, do you have it and how much and could you give me the dimensions of it,,thankyou,joel nolin
A: Yes I do. How thick is your door? Do you want a key on the exterior? I imagine you would - please confirm.
Q: hi again,, my door is 1 inch thick,,the original lock is 8 7/8 inches long by 1 1/8 wide and yes i would like a key also
A: Last question - the lock body in the edge of the door - is the top and bottom of the face rounded (radiused) or is it square?
Q: I have the same exact door lock and need to replace it, can you tell me how to order it?
A: Do you need the entire lock or the exterior trim only?
Q: Both, with the cylinder and key.
A: When you answer "both" - both what please?
Q: All parts, the exterior, interior, cylinder and locking mechanism. Everything you see in the photo.
A: Okay - how thick is the door?
Q: my door is 1 inch thick,,the original lock is 8 7/8 inches long by 1 1/8 wide
A: Likely the last question to ask:
Click the link here:
Download File
On the bottom right side of page 1 - does your lock body look like the MS1847 LOCK featuring the square ends top and bottom or does your lock body feature the rounded ends as seen on the MS1847-02 LOCK?
Q: The latch on the door frame is rounded.
A: The photo sent you refer to is of the strike plate in the jamb - this we are not concerned with (but please note a strike plate is not included) as it is not apart of a new lock.

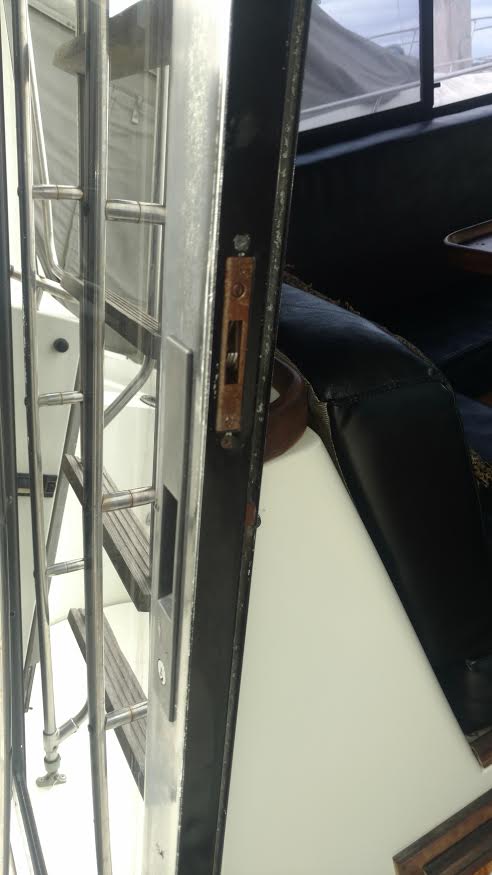

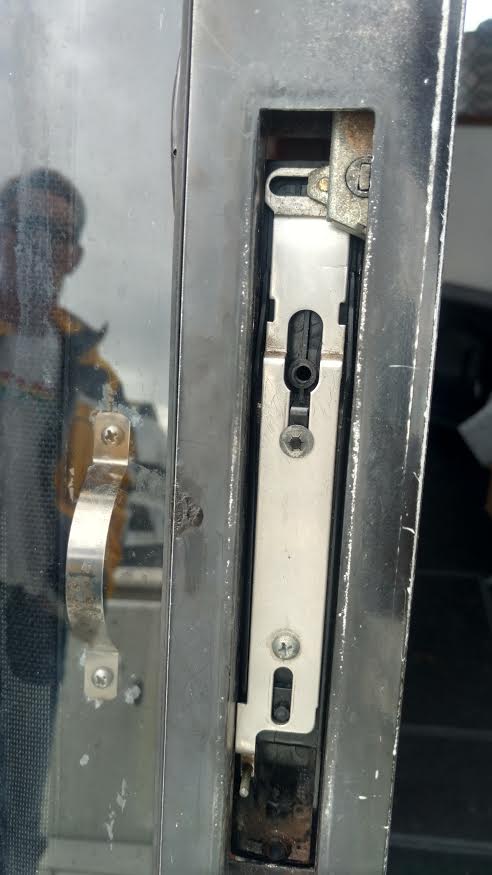

Looking at the other images you supplied of the door edge, it appears you need a square top / bottom lock body (the part that installs into the door). Do you agree with this?
Q: Yes - I agree the lock body is square at both ends.
A: The lock you want, for a 1" thick door with square lock body ends is the Adams Rite 4431-10-00-01-IB Sliding Door Flush Lockset with Exterior Cylinder and can be reviewed and purchased here:
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful - please consider following us on Twitter or liking our page on Facebook.

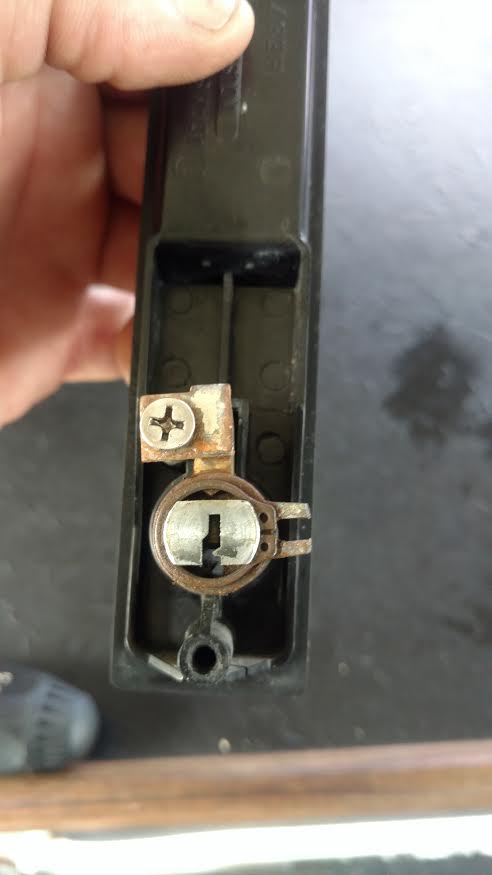

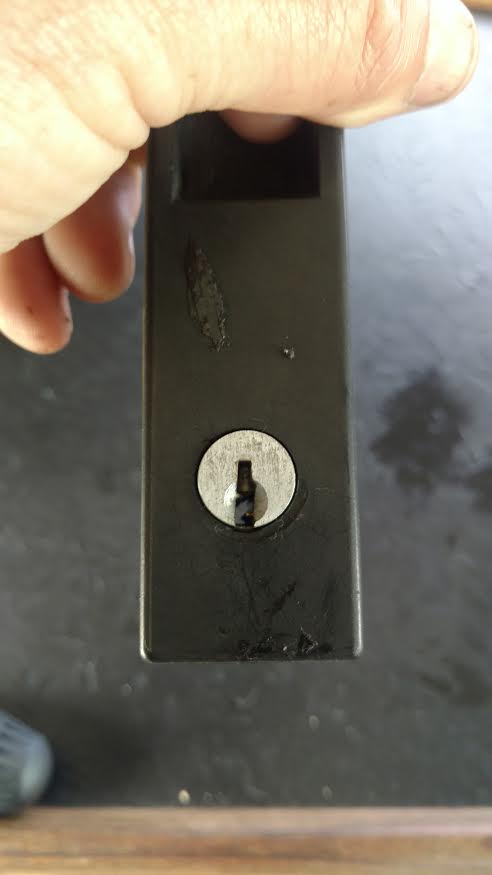

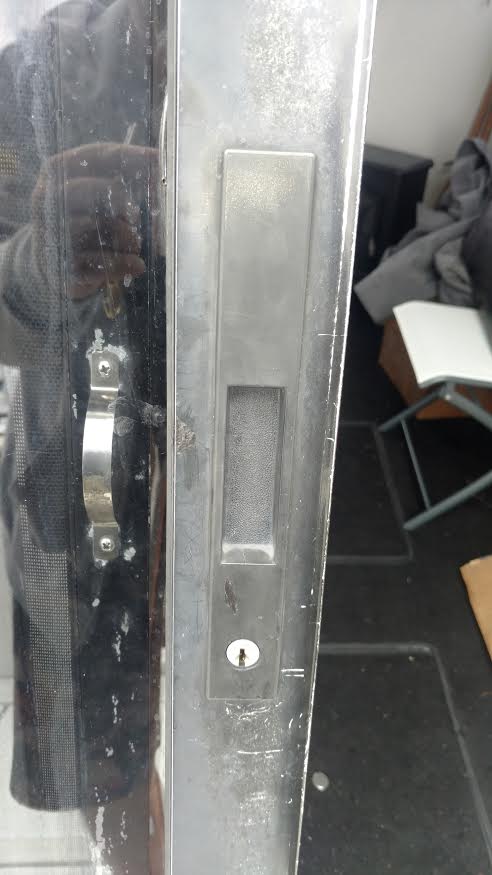

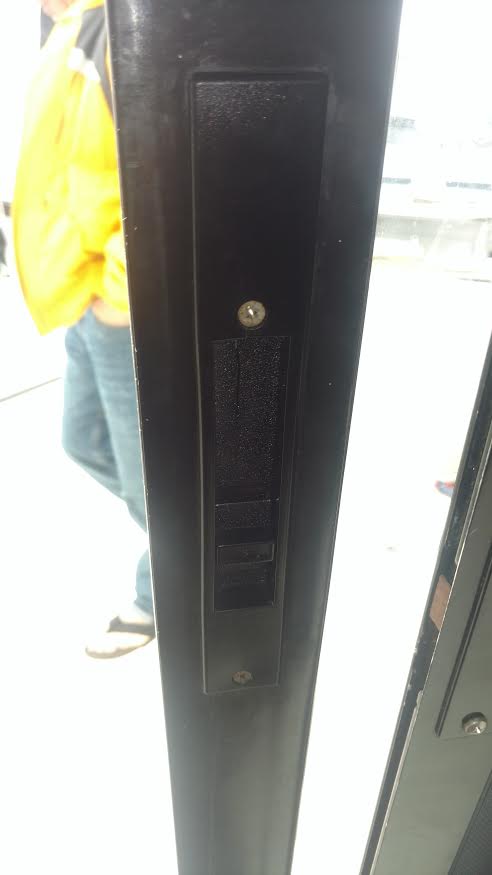

Q: Hello, I was reading online that you carry parts for this Adams rite sliding door lock assembly. I have this lock in a sliding door for a boat and it doesn't have keys, looking for the lock cylinder and both parts on the rear of it,snap ring and slider guide? lol sorry i don't know what it is called.. any help here? thanks Curtis
A: Does the Adams Rite 29-0461 Insert Cylinder W/ 2 Keys - Schlage "C" Keyway as seen here look like a match?
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
A: The replacement cylinder is the Adams Rite 29-0461-03-01 Insert Cylinder W/ 2 Keys - Schlage "C" Keyway as seen here:
Click Here
If you would like to replace the entire unit please tell me how thick is the door?
Q: The door is 1 1/16" thick.
A: Understood - I have the entire lock in stock and ready to ship.
Based on your photographs I can tell you that the part number for the entire lock is the
Adams Rite 4431-10-00-01-IB Sliding Door Flush Lockset with Exterior Cylinder
Which can be seen here:
Click Here
We have entered this order for you and we thank you for your business.
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
Thank you for your consideration.
Q: I need that item with the lock
A: the part number for the Adams Rite 25-0087 with a cylinder is the Adams Rite 41-0405-00-01-IB Exterior Escutcheon - 4431 (He 87) Schlage "C" Keyway as seen here:
Click Here
Q: does the hole for the lock need to be drilled open in the exterior escutcheon. The hotos show a solid outside with no opening

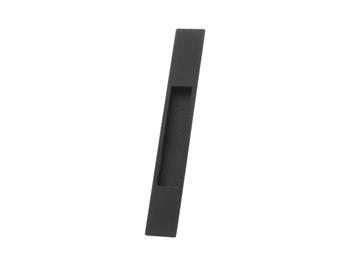

A: The answer is no as the Adams Rite 25-0087-IB Exterior Escutcheon - 4430 (He 87), Black Color is specifically for a model which does not have an exterior cylinder.
A model equal to this that would feature in exterior cylinder would be the Adams Rite 41-0405-00-01-IB Exterior Escutcheon - 4431 (He 87) Schlage "C" Keyway, Black Color
as seen here:
Click Here
Q: Does it come with a cutout for a lock, do we need to cut ourselves? Is a piece with a hole in it a different piece?
A: No - the Adams Rite 25-0087-IB Exterior Escutcheon - 4430 (He 87), Black Color is specifically a no cylinder exterior escutcheon. If you would like to have a keyed cylinder on the exterior you would want to order the Adams Rite 41-0405-00-01-IB Exterior Escutcheon - 4431 (He 87) Schlage "C" Keyway, Black Color as seen here:
Click Here
Q: Hi I need a 4430/4431 Flush lock assembly complete with cylinder and 2 keys.
A: We can supply but first need to know the door thickness. Please advise and we can complete your order.

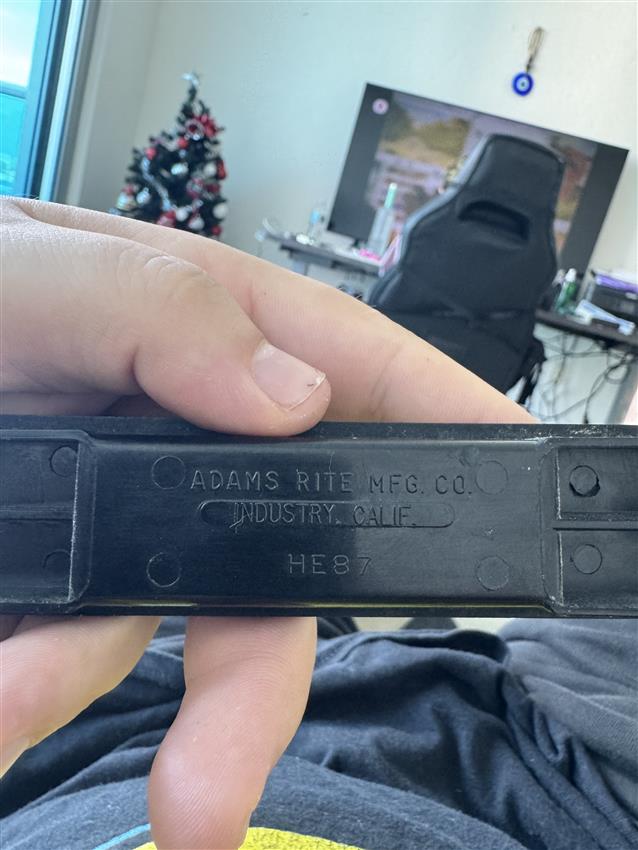

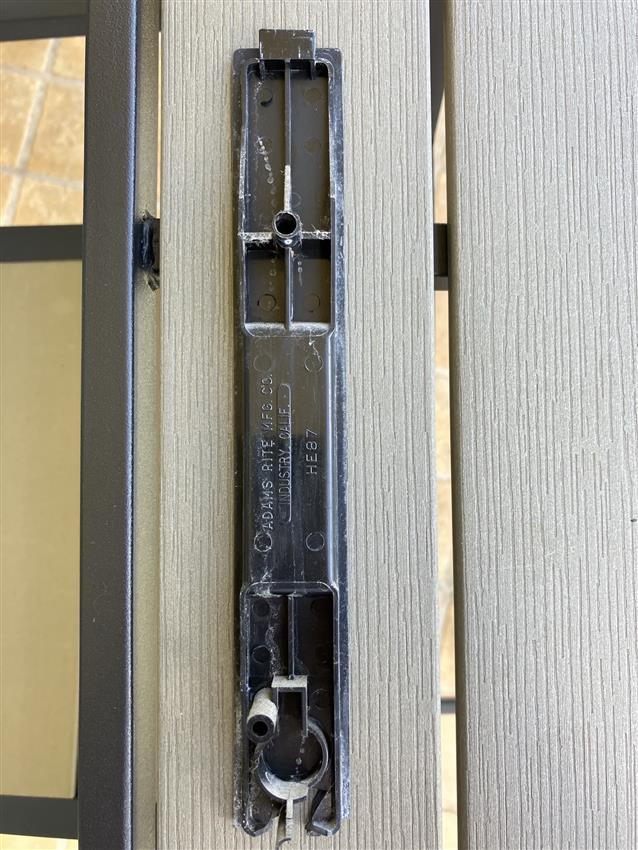

Q: NEED WHITE H E 87 PLEASE EMAIL
WWE HAVE A 20 YEAR OLD DOOR WITH A PART LABELED H E 87 WHITE. CAN WE GET ONE FROM YOU?
A: The white version of the Adams Rite 25-0087-IB Exterior Escutcheon - 4430 (He 87), Black Color
is the Adams Rite 25-0087-WH-IB Exterior Escutcheon - 4430 (He 87), White Color as seen here:
Click Here

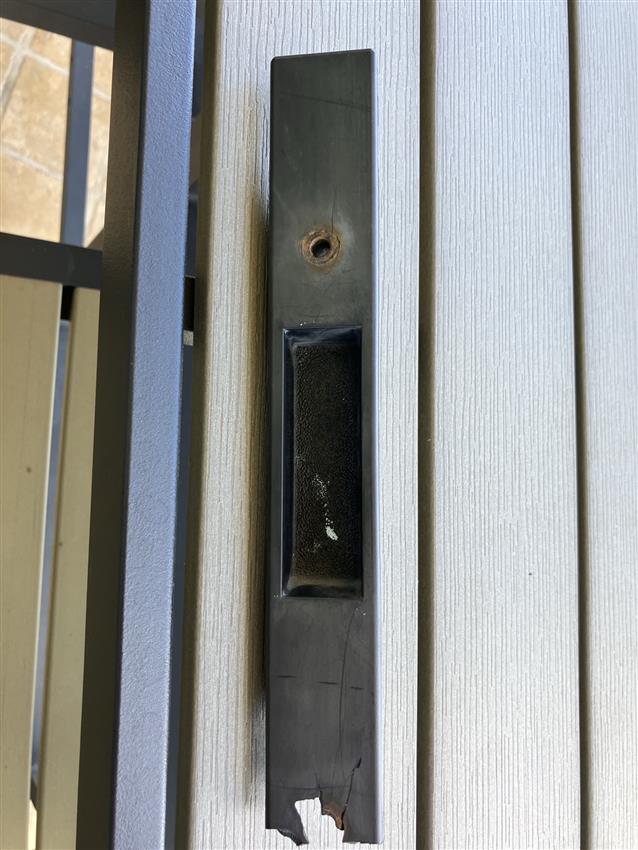

Q: For the item Adams Rite 25-0087-IB Exterior Escutcheon - 4430 (He 87), Black Color I need the interior portion as well - can you tell me which I require?
A: There are three options when it comes to the interior operator. We need to know the door thickness in order to arrange the proper interior escutcheon operator. I understand that you are in possession of the interior a escutcheon. You asked if there was anything on that interior operator that will tell us what it is that you require of the three however the reason we can't take measurements off of the existing interior escutcheon operator is because we can't be sure that part of it is not broken and therefore knowing the door thickness is the true way and the only sure way to know which of the three interior escutcheon models you require.
Q: What is the height of the 25-0087?
A: The height of the 25-0087 = 8-7/8"
Q: Does this come with the hardware for install? The nuts at the end of mine snapped off.
A: When ordering the Adams Rite 25-0087-IB Exterior Escutcheon - 4430 (He 87), Black Color you will receive only the discussion itself and no screws, mounting hardware or other components that constitute a complete lock.
Feel free to take a look at the parts drawing as seen here:
Download File
as this will likely allow you to identify the additional items that you might need.

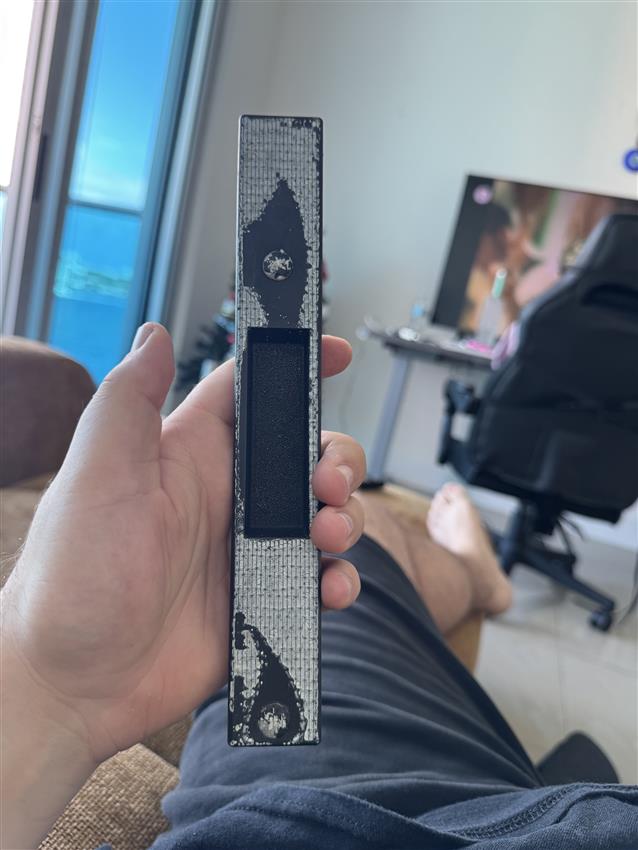

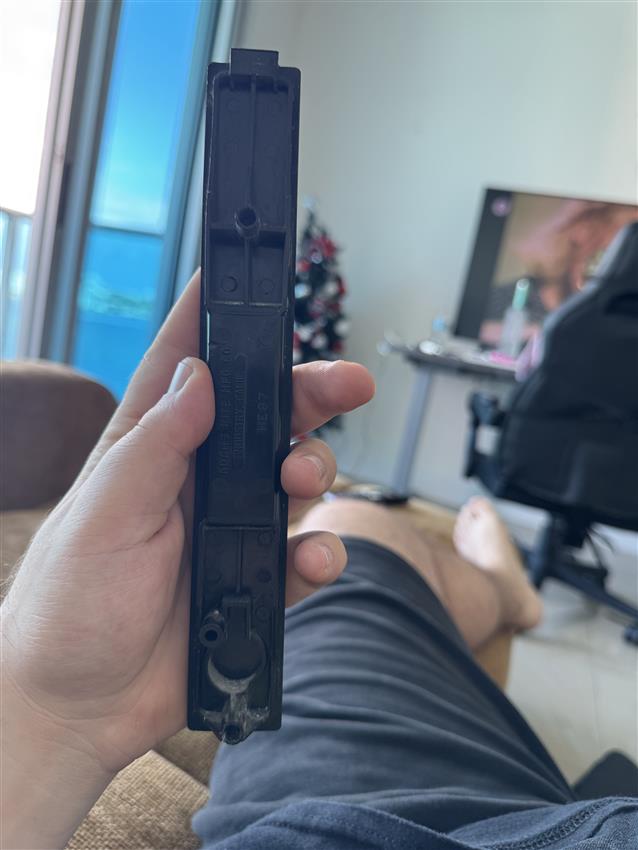

Q: Hi, I nedd 3 exterior escutcheon HE87 but my key cylinders are all good and dont want new ones and pay for them. Can I get the escutcheon alone with the hole but no cylinder ?
A: No, the exterior escutcheon Adams Rite 41-0405-00-01-IB as seen here:
Click Here
cannot be purchased less the cylinder.
