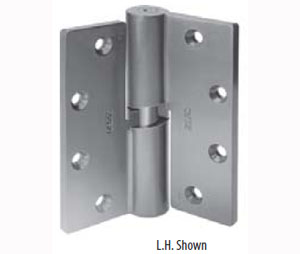

Zero Z9500 Cam Lift Mortise Type Hinge
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
358.63 USD
In Stock Ready for Shipment
Select Handing
LH - Left Hand
RH - Right Hand
LHR - Left Hand Reverse
RHR - Right Hand Reverse
LHA - Left Hand Active
RHA - Right Hand Active
LHRA - Left Hand Reverse Active
RHRA - Right Hand Reverse Active
O/SO-SX Slider (LH)
O/SO-SO Slider (RH)
LHR x LHR Double Egress
RHR x RHR Double Egress
TBD - To Be Determined
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
2 - RH - Right Hand
For quantities beyond the "In Stock" above, the item(s)
ships in 25 business days for any quantity beyond the above listed "in stock ready for shipment" quantity.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
This product is available in multiple variations.
Please describe the exact part you need. (ie. size, color, etc.)
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Zero Z9500 Cam Lift Mortise Type Hinge
Mortise Type Hinge
Material: 1020 Stainless Steel, precision investment cast
Finish: 630 (US32D)
Size: 5” x 4.5” x 0.25"
Door Rating (1 1/2 pairs): Up to 900 lbs.
Screw Size (metal doors): 5/16 - 18 x 3/4"
Lift (180º opening): 5/16"
Pin: Hardened tool steel. Hardened & chrome finished to Rockwell C 60 to meet ASME/ANSI B 18.3 specs.
Specs: Minimum clearance at head of frame is 3/16". For doors greater than 1-3/4" clearance is 1/4”.
Note: For Z950 and Z9500 screws must be engaged no less than .350” in ASTM A-36 steel reinforcement.
Handing: Specify right or left hand
For use with EMI/RFI and soundinsulating doors utilizing acoustical seals.
Cam action greatly improves the sealing characteristics along the door perimeter, lifting and lowering the door with the swing.
Cam Lift Hinges will not bind door standards
Tested with LCN 4041 Series original.
Priced as Each.
