Yale F694
Yale F694
Yale F694 Flat Deadlocking Latchbolt
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
143.87 USD
In Stock Ready for Shipment
Select Finish
605 - Bright Brass, Clear Coated (Add $4.17)
606 - Satin Brass, Clear Coated (Add $4.17)
612 - Satin Bronze, Clear Coated (Add $4.17)
613 - Dark Oxidized Satin Bronze, Oil Rubbed (Add $4.17)
625 - Bright Chrome Plated (Add $4.17)
626 - Satin Chrome Plated
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 2-3 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Yale to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
F694 Deadlocking Latchbolt
Product brochure
Front: Flat
Backset: 2-3/4"
Throw: 1/2"
Front Width: 1-1/8" (29mm)
Latch Diameter: 1" (25mm)
Screws: #8-8-32 x 3/4" (19mm) Phillips flat head combination wood and machine screws.
- Brass: P/N 81-2022-0416
- Bronze: P/N 81-2032-0416
Note
:
Minimum order is $250.00 for any Yale items.

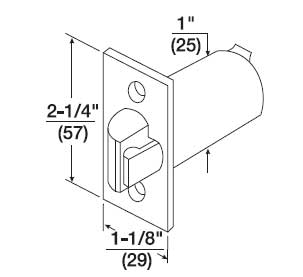

Dimensions

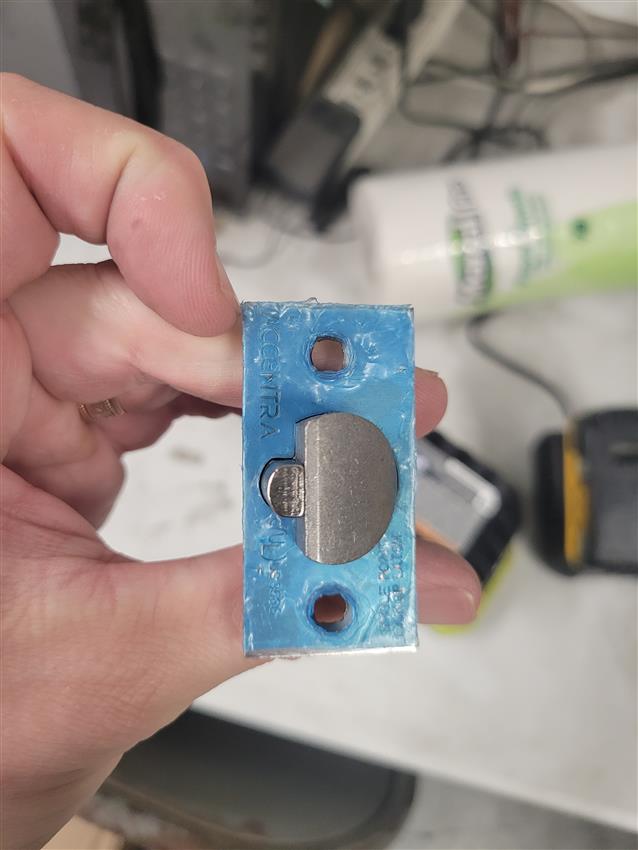

Customer Images:
Questions and Answers
Q: The Y latches listed below are adjustable to fit either a 2 3/8" or 2 3/4" backset.
A:
The Y latches listed below are adjustable to fit either a 2 3/8" or 2 3/4" backset.
LATCHES WITH LOCKS
Square corner, 1-1/8" x 2-1/4", standard = 2-3/8" or 2-3/4" = 01-045
Square corner, 1" x 2-1/4"= 2-3/8" or 2-3/4" = 01-043
1/4" Radius round corner, 1" x 2-1/4" = 2-3/8" or 2-3/4" = 01-044
LATCHES SOLD SEPARATE
Square corner, 1-1/8" x 2-1/4", standard = 2-3/8" or 2-3/4" = Q001-045
Square corner, 1" x 2-1/4" = 2-3/8" or 2-3/4" = Q001-043
1/4" Radius round corner, 1" x 2-1/4" = 2-3/8" or 2-3/4" = Q001-044
