Yale CA544F

copy to clipboard

Yale CA544F Knob and Rose

enlarge

enlarge

× This image is for a similar product but it will differ in size, color and/or other attributes.

Yale CA544F Knob and Rose

More from Yale

Price: $294.54 USD

Ships From

Comments (Optional)

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Yale CA544F Knob and Rose Trim for 2100, 7000 Series Rim and Vertical Rod Exit Devices

Installation Instructions

• 540F rose trim for stock doors (161 Prep). Type 161 stock door trim, if used with 7100(F), 7150(F), or 7110(F) exit devices.
• Through-bolted. 1-3/4" (44mm) door standard. For doors thru 2-1/4" (57mm) or shim mounted devices, specify on order.
• AU, PB, MO and CA trim designs.
• Accepts cylindrical type cylinders.
• 1-year warranty.

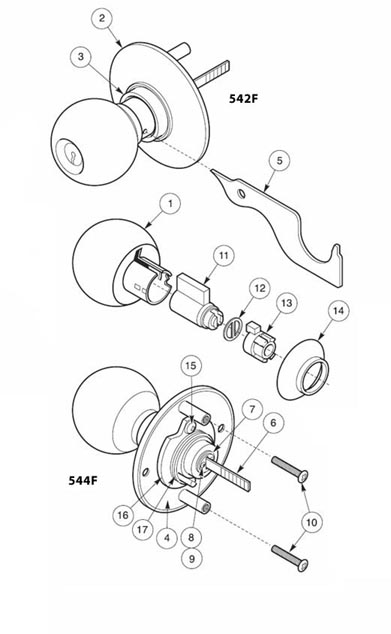

ITEMS LIST
Item	DESCRIPTION
1	Knob, CA 542F 544F
2	Rose
3	Nut, Rose
4	Plate, Mounting
5	Tool, Knob Removall
6	Tailpiece
7	Retainer
8	Screw, Locking (2)
9	Washer, Lock (2)
10	Screw, Mounting (2)
11	Cylinder
12	Shield
13	Insert
14	Cap, Trim
15	Screw, 10-24 x 1/4 PPHMS (2)
16	Spindle Assembly
17	Spring

AVAILABLE FINISHES
ANSI Code	Finish
605	Bright Brass, Clear Coated
606	Satin Brass, Clear Coated
611	Bright Bronze, Clear Coated
612	Satin Bronze, Clear Coated
613	Dark Oxidized Satin Bronze, Oil Rubbed
625	Bright Chrome Plated
626	Satin Chrome Plated
629	Bright Stainless Steel
630	Satin Stainless Steel
689	Aluminum Painted
690	Statuary Bronze
691	Light Bronze Painted
693	Black Painted
695	Dark Bronze Painted
696	Gold


HANDING
