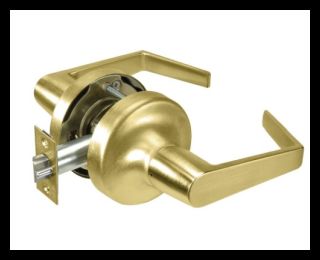

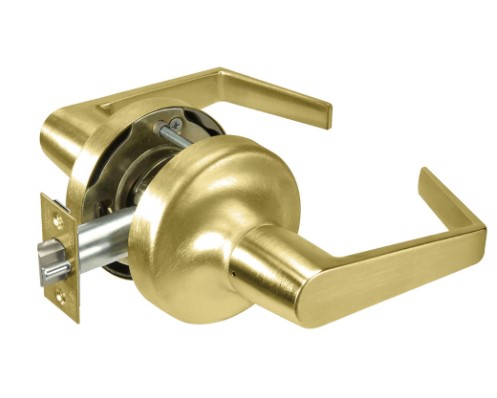

Yale B AU 4608LN MCD234 71S 1-3/4 606ABCB

4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price

• Cylindrical Passage/Closet Lock
• Less Core: Small format interchangeable core prep

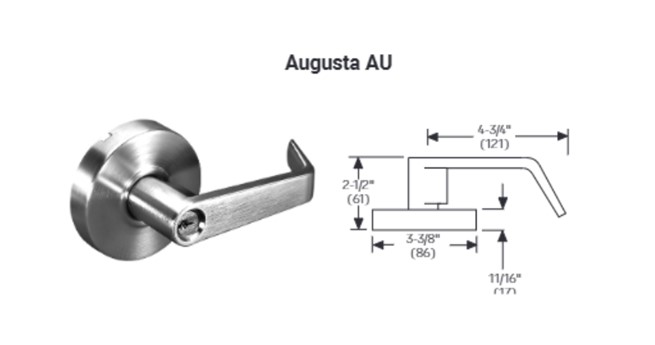

• Lever: Augusta
• Finish: Satin Brass, Abrasive Coating - Both Sides
• Use for 1-3/4" Thick Doors
• Non-handed, Field reversible handing for easy installation

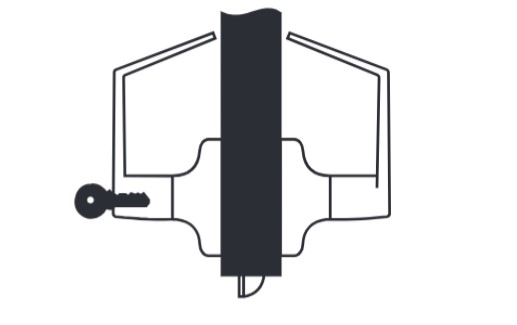

• Function:
  • For classroom or utility room doors
  • Deadlocking latchbolt
  • Either lever operates latchbolt (except when outside lever is locked by key)
  • Inside lever always active
  • Key releases outside lever

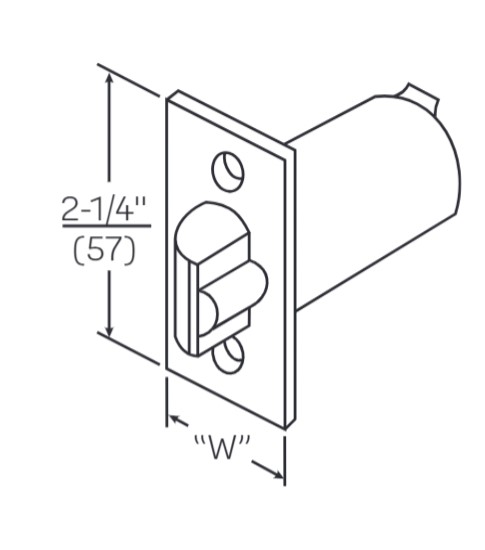

• Latchbolt:
  • Front: 2-1/4" x 1-1/8" Square
  • Backset: 2-3/4"
  • Throw: 1/2"
  • Latch diameter: 7/8"

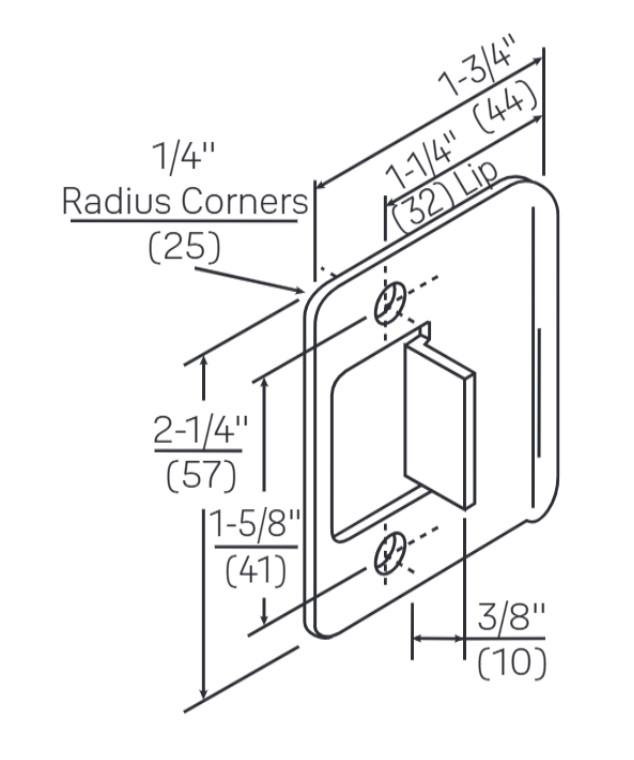

• Strike:
  • 71S Full Lip Strike
  • 1/4" radius
  • 2-1/4" x 1-3/4" x 1-1/4" lip to center
  • With radius corners for easy mortising by power tools
  • Anti-rattle tab
  • Attaching Screws: #8-32 x 3/4" (19mm) Phillips flat head combination wood and machine screws
• Certified ANSI/BHMA A156.2, Series 4000 Grade 2
• UL/cUL fire rated up to 3-hours
• Locksmithing services such as keying, keyed alike, master keying, grand master keying, key stamping and other locksmithing services are available. Reach out to our sales department to discuss these options.
• Note: Images may not represent actual product and finish
• Packing & Sold as: Each.
