Yale B AU 4607LN MCD234 497-118 1-3/8 613EABCB

4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price

• Cylindrical Passage/Closet Lock
• Less Core: Small format interchangeable core prep
• Lever: Augusta
• Finish: Dark Oxidized Satin Bronze, Abrasive Coating - Both Sides
• Use for 1-3/8" Thick Doors
• Non-handed, Field reversible handing for easy installation
• Function:
  • For entrance, general home or office doors
  • Deadlocking latchbolt
  • Either lever operates latchbolt (except when outside lever is locked from inside)
  • Pushing turn button in inside lever locks outside lever (Automatically releases when inside lever is turned or key is rotated in locked outside lever )
  • Outside lever may be retained in locked position by pushing and rotating turn buton 90-¦ clockwise to a horizontal position
  • Latchbolt is operated by key in outside lever or by rotating inside lever
  • Inside lever always active
• Latchbolt:
  • Front: 2-1/4" x 1-1/8" Square
  • Backset: 2-3/4"
  • Throw: 1/2"
  • Latch diameter: 7/8"

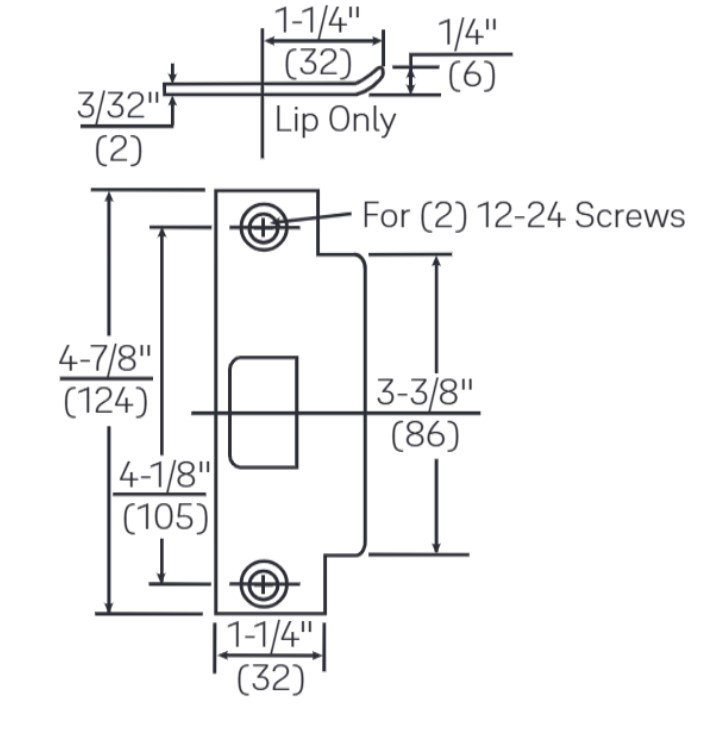

• Strike:
  • 497 ANSI Strike with 202 Strike Box
  • 4-7/8" x 1-1/4" x 1-1/8" lip to center
  • For door and frames with ANSI/BHMA A156 115 preparations
  • Attaching Screws: #12-24 x 1" (25mm) Phillips flat head combination wood and machine screws
• Certified ANSI/BHMA A156.2, Series 4000 Grade 2
• UL/cUL fire rated up to 3-hours
• Locksmithing services such as keying, keyed alike, master keying, grand master keying, key stamping and other locksmithing services are available. Reach out to our sales department to discuss these options.
• Note: Images may not represent actual product and finish
• Packing & Sold as: Each.
