Yale AU628F

Name: Yale AU628F Escutcheon and Lever Passage
Brand: Yale
SKU: Yale AU628F
Price: 549.62 USD

Yale AU628F Escutcheon and Lever Passage

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $549.62 USD

Comments (Optional)

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Sales

Technical Support

Product Description:

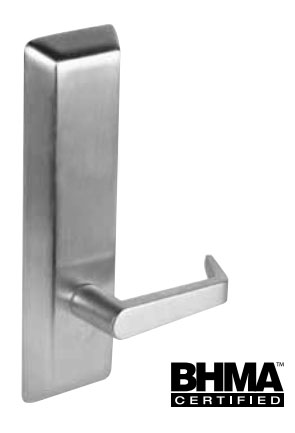

Yale AU628F Escutcheon and Lever Passage Trim for 1500, 2100, 7000 Series Rim and Vertical Rod Exit Devices

SPECIFICATIONS

• Through-bolted: 1-3/4" (44mm) door standard. For doors through 2-1/4" (54mm) or shim-mounted devices,
specify on order.

• Dimensions: 3" x 10-1/4" x 13/16" (76mm x 260mm x 21mm).

• Warranty: 5 years

ITEMS LIST
Item	DESCRIPTION
1	Escutcheon Assembly 626F 628F, 629F
2	Lever
8	Driver Gear Assembly
9	Screw, Tailpiece Plate, #6 x 3/8", PHT-T-PH (2)
10	Tailpiece Assembly 1-3/4" Door Without Shim Kit 2" - 2-1/4" Door or Std. Door with Shim Kit
11	Gear, Drive Lever (626F and 628F) Rigid Lever (629F)
12	Hub, Lever
14	Cotter Pin
15	Nut, Spindle
16	Thimble Insert, Nylon (Levers) Not Shown
17	Screw Packet, Mtg. Consists of the following: Screw, 1/4-20 x 1 OPHMS (2) Washer, #14 Finish (2)
18	Spring, Grip Return (not shown) Levers, RHR (blue) Levers, LHR (red) Knob
19	Spring (not shown) Under Tailpiece
20	Hex Nut / Bushing for Spring (not shown)
21	Washer Under Tailpiece (not shown) (2)

AVAILABLE FINISHES
ANSI Code	Finish
605	Bright Brass, Clear Coated
606	Satin Brass, Clear Coated
611	Bright Bronze, Clear Coated
612	Satin Bronze, Clear Coated
613	Dark Oxidized Satin Bronze, Oil Rubbed
625	Bright Chrome Plated
626	Satin Chrome Plated
629	Bright Stainless Steel
630	Satin Stainless Steel
689	Aluminum Painted
690	Statuary Bronze
691	Light Bronze Painted
693	Black Painted
695	Dark Bronze Painted
696	Gold
