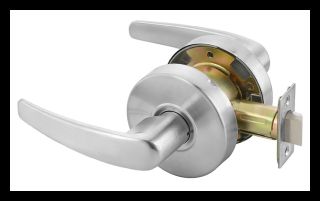

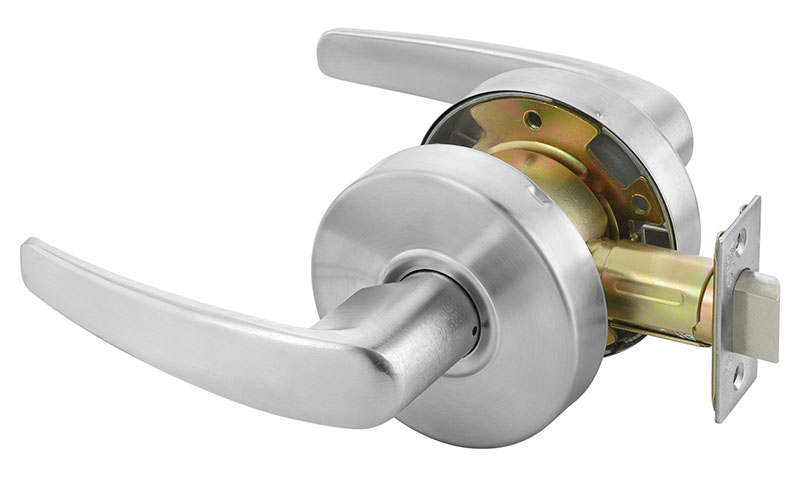

Yale AU 4628LN MCP234 371-1 1-3/4 626ABCI

4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price

• Cylindrical Passage/Closet Lock
• Lever: Augusta
• Finish: Satin Chromium, Abrasive Coating - Inside
• Use for 1-3/4" Thick Doors
• Non-handed, Field reversible handing for easy installation

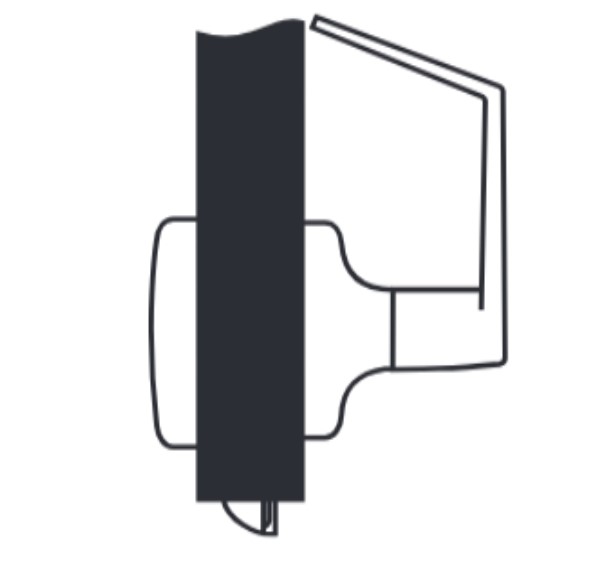

• Function:
  • For twin communicating or exit doors where one side operation is required
  • Also when space is limited between door and switch panel
  • Deadlocking latchbolt
  • One lever operation
  • Blank rose
  • Should be used only where rooms have more than one entrance
• Latchbolt:
  • Front: 2-1/4" x 1-1/8" Square
  • Backset: 2-3/4"
  • Throw: 1/2"
  • Latch diameter: 7/8"

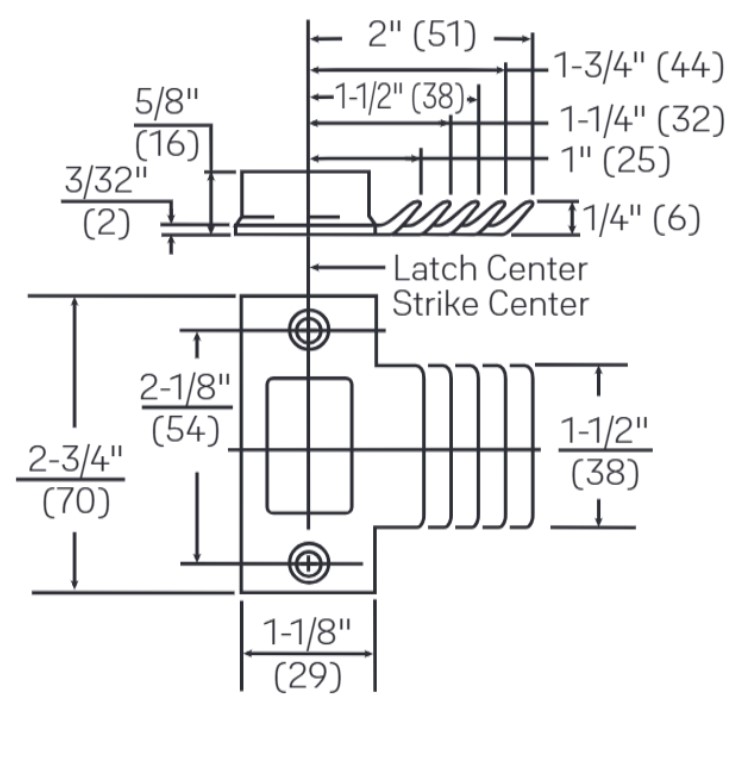

• Strike:
  • Curved Lip 371 T-Strike
  • 2-3/4" x 1-1/4" x 1" lip to center
  • Attaching Screws: #8-32 x 3/4" (19mm) Phillips flat head combination wood and machine screws
• Certified ANSI/BHMA A156.2, Series 4000 Grade 2
• UL/cUL fire rated up to 3-hours
• Note: Images may not represent actual product and finish
• Packing & Sold as: Each.
