Yale 635F

copy to clipboard

Yale 635F Escutcheon and Pull with Thumbpiece

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Yale 635F Escutcheon and Pull with Thumbpiece
More from Yale
Price: $388.98 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:

Yale 635F Escutcheon and Pull with Thumbpiece Trim for 1500, 2100, 7000 Series Rim and Vertical Rod Exit Devices

Installation Instruction Templates
Installation Instruction   Templates

These new trim series feature a heavyduty, solid cast escutcheon
with beveled sides for vandalism resistance, and the addition of fire plates
to eliminate weld studs.

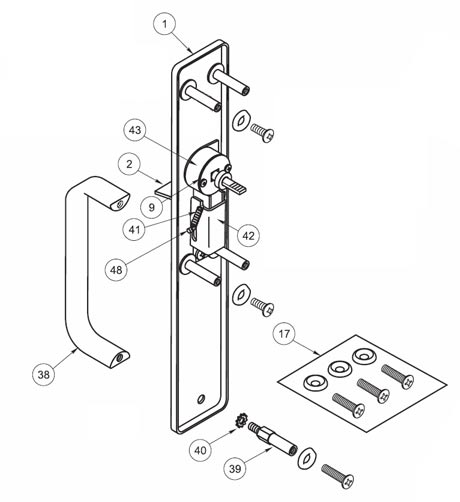

ITEMS LIST

Item

DESCRIPTION
1
Escutcheon Assembly
633F
2
Thumbpiece
9
Screw, Tailpiece Plate,
#6 x 3/8 PHT-T-PH (2)
17
Screw Packet, Mtg.
Consists of the following:
Screw, 1/4-20 x 1
OPHMS (3)
Washer, #14 Finish (3)
38
Pull, Straight
39

Screw Post

40
Lock Washer, Screw Post
41
Spring, Thumbpiece
42
Slider, Thumbpiece
43
Housing, Tailpiece Assy.




AVAILABLE FINISHES

ANSI Code

Finish
605
Bright Brass, Clear Coated
606
Satin Brass, Clear Coated
611
Bright Bronze, Clear Coated
612
Satin Bronze, Clear Coated
613
Dark Oxidized Satin Bronze, Oil Rubbed
625
Bright Chrome Plated
626
Satin Chrome Plated
629
Bright Stainless Steel
630
Satin Stainless Steel
689
Aluminum Painted
690
Statuary Bronze
691
Light Bronze Painted
693

Black Painted

695
Dark Bronze Painted
696
Gold

HANDING

LCN
