Product Description:

Yale 633F Escutcheon and Pull with Thumbpiece and Less Cylinder Trim for 1500, 2100, 7000 Series Rim and Vertical Rod Exit Devices

Template
for
metal door preparation

Installation Instructions

Template
for
wood or composite door preparation

These new trim series feature a heavyduty, solid cast escutcheon
with beveled sides for vandalism resistance, and the addition of fire plates
to eliminate weld studs.

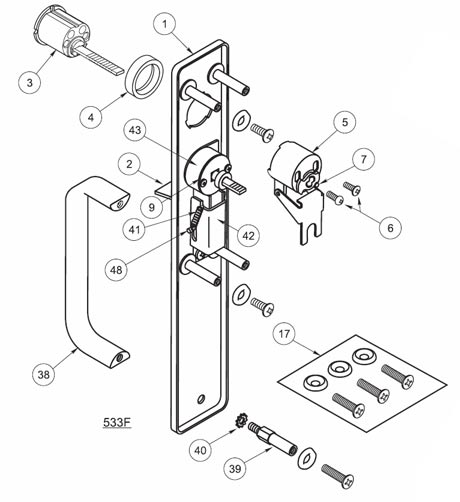

ITEMS LIST
Item	DESCRIPTION
1	Escutcheon Assembly 633F
2	Thumbpiece
3	Cylinder, Rim
4	Collar, Rim Cylinder
5	Housing & Cam Assembly
6	Screw, Cylinder Mounting (2)
7	Screw, NL Function
9	Screw, Tailpiece Plate, #6 x 3/8 PHT-T-PH (2)
10	Tailpiece Assembly
17	Screw Packet, Mtg. Consists of the following: Screw, 1/4-20 x 1 OPHMS (3) Washer, #14 Finish (3)
19	Spring (Not Shown) Under Tailpiece
20	Hex Nut/Bushing for Spring (Not Shown)
38	Pull, Straight
39	Screw Post
40	Lock Washer, Screw Post
41	Spring, Thumbpiece
42	Slider, Thumbpiece
43	Housing, Tailpiece Assy.
48	Pin, Thumbpiece

AVAILABLE FINISHES
ANSI Code	Finish
605	Bright Brass, Clear Coated
606	Satin Brass, Clear Coated
611	Bright Bronze, Clear Coated
612	Satin Bronze, Clear Coated
613	Dark Oxidized Satin Bronze, Oil Rubbed
625	Bright Chrome Plated
626	Satin Chrome Plated
629	Bright Stainless Steel
630	Satin Stainless Steel
689	Aluminum Painted
690	Statuary Bronze
691	Light Bronze Painted
693	Black Painted
695	Dark Bronze Painted
696	Gold


HANDING

CYLINDER SELECTION

Trim Series: 121/620F/630F/680F		Conventional		Patented Keyway		Security		High Security
Trim Series: 121/620F/630F/680F		Types of Cylinder Mechanisms
		6-pin	7-pin	6-pin	7-pin	6-pin	7-pin	6-pin	7-pin
	Fixed Core
	Rim	1109	1109	K300	K300	5109	5109	U5109	U5109
	Interchangeable Core
	LFIC	1193	1193	K840	K840	5193	5193	N/A	N/A
	SFIC	N/A	N/A	K640	K640	N/A	N/A	N/A	N/A
Refer to Yale® KeyMark® and/or Cylinders and Keys Catalog sections for all details and how to order examples.
