Yale 3301 DL

Name: Yale 3301 DL Delayed Action Slim Cover Door Closer
Brand: Yale
SKU: Yale 3301 DL
Price: 386.19 USD

Yale 3301 DL Delayed Action Slim Cover Door Closer

× This image is for a similar product but it will differ in size, color and/or other attributes.

Yale 3301 DL Delayed Action Slim Cover Door Closer

Price: $386.19 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Yale 3301 DL Delayed Action Slim Cover Door Closer

Installation Instructions

Templates

Product Brochure

Yale’s 3000 Series Architectural Door Closers offer the perfect combination
of reliability, appearance and durability in today’s market. With features such
as staked valves, self-drilling/self-tapping screws, rack and pinion design and
precise valve adjustment, and a complete range of arm and cover options, the
Yale® 3000 can meet virtually any application challenge.

Series 3301/3501 Multi-Sized Door Closer
Adjustable through the power range of sizes 1 through 6, as outlined in ANSI specification A156.4.

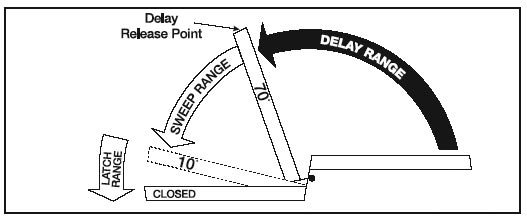

Adjustable Delayed Action Closing
An optional hydraulic feature that adds a third speed range to the
closing cycle. This feature becomes effective when the door is opened and released at any point beyond 70°. The amount of time delay depends upon the combination of the angle of
door release and valve adjustment. The valve can be adjusted with a 1/8" (3mm) hex key from no delay time up to maximum delay times of:

Pressure Relief Safety Valve
The delayed action hydraulic system contains a pressure relief valve. Any time the door is forced toward the closed direction while it is in the closing cycle, the valve will open and permit the door to close. This prevents damage to door, frame and
closer.

Suggested Applications
Delayed Action closing allows slowmoving traffic to clear the opening before the door closer’s normal closing cycle begins. This feature can be helpful in health care facilities such as hospitals and nursing homes. It provides sufficient time for persons on crutches or in wheelchairs to pass through a door without concern of it closing. At the same time, it can accommodate the facility's staff with movement of food service carts, beds, and other wheeled traffic.
Use of delayed action closers on many doors throughout industrial and commercial buildings can also assist the flow of traffic. Locations where additional time to clear the opening is advantageous are doors between office and factory/ warehouse facilities, doors tom workshops or laboratories, kitchens and food processing areas.

Questions and Answers

Q: how do you adjust the hold open function?

A: Which hold open arm do you have:

Click Here

Please let us know if there is anything else we can help with.

Q: My door seams hard to push open. Is the back check adjustment used to help with that? Our clients are elderly and disabled. What would make it easier for them to push open?

A: The Yale 3301 is a handicap compliant door closer.

From the 3301 catalog:

Series 3301 and 3501 door closers are designed to comply with requirements of the Americans with Disabilities Act (A.D.A.) and ANSI standard A117.1. All series 3301/3501 are ANSI/BHMA A156.4 Grade 1 certified. All Yale® series 3301/3501 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors. This includes compliance to UL10C for 3-hour assemblies. The product is manufactured in an ISO 9001 facility.

Step 11 on page 4 here:

Download File

Is where the spring adjustment is made (where you can increase and reduce the sping power) but keep in mind - less spring power equals less closing force - so you will have to fing a happy medium for this control.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
