Yale 314 1-4

Name: Yale 314 1/4 Double Cylinder Auxiliary Mortise Deadbolt
Brand: Yale
SKU: Yale 314 1-4
Price: 311.22 USD

Yale 314 1/4 Double Cylinder Auxiliary Mortise Deadbolt

× This image is for a similar product but it will differ in size, color and/or other attributes.

Yale 314 1/4 Double Cylinder Auxiliary Mortise Deadbolt

Price: $311.22 USD

4. Insert Keying Instructions (Optional)

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

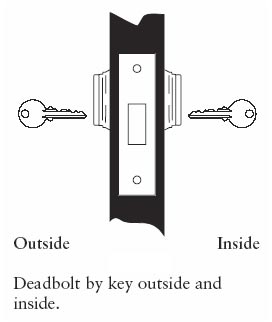

Yale 314 1/4 Double Cylinder Auxiliary Mortise Deadbolt

Installation Instructions

Archival Catalog

Yale 350 for review purposes only

SPECIFICATIONS

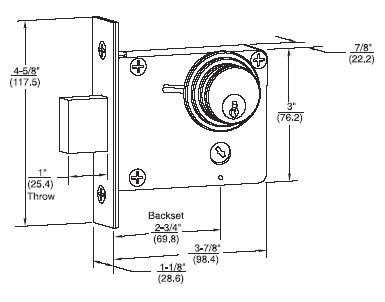

Applications	Mortise installation for 1-3/8" or 1-3/4" doors, unless otherwise specified. 3" maximum for thumbturn lock functions: 2-3/4" backset.
Hand	Universal; adjustable lock front to accommodate beveled or flat-edged doors.
Deadbolt	1" throw, 1-1/4" x 1/2". Two hardened steel free-rotating pins make sawing through-bolt virtually impossible. Resists end pressure when thrown.
Armor Front	Prevents tampering with cylinder set screw(s).
Case	Heavy wrought steel, zinc plated and dichromated.
Armored Front	Brass, bronze or stainless steel.
Keying and Cylinders	1153 5-pin cylinder with 2 RB8 E1R (PARA) keys standard. For alternative cylinders refer to Yale® KeyMark® and/or Yale Cylinder and Keys catalog section.
Strike	No. 30S standard, 3-1/2" x 1-1/8", ANSI A115.5. No. 545 optional.
Wrought Box	No. 31S, wrought stainless steel, natural finish. Furnished to special order.
Rabbeted Front and Strike	Suffix 1/2 to Model No. (i.e. single cylinder, 314-1/2; double cylinder, 314-3/4). RF14 attachable rabbet piece, cast brass or bronze (4-5/8" x 1-1/8").
Rounded Front	Suffix “RF” to Model No. (i.e. 314RF, 314- 1/4RF). Note: Rounded strike not available. Furnished regularly with No. 30S flat strike. No. 31S wrought box optional to order.
Standard Package for 1-3/8" and 1-3/4" Doors Includes	Installation instructions, 8-8-32 x 3/4" combination screws for wood or metal doors and frames, plus two keys. For other doors, specify door thickness.

AVAILABLE FINISHES
ANSI Code	Finish
605	Bright Brass, Clear Coated
606	Satin Brass, Clear Coated
611	Bright Bronze, Clear Coated
612	Satin Bronze, Clear Coated
613	Dark Oxidized Satin Bronze, Oil Rubbed
625	Bright Chrome Plated
626	Satin Chrome Plated
629	Bright Stainless Steel
630	Satin Stainless Steel
689	Aluminum Painted
690	Statuary Bronze
691	Light Bronze Painted
693	Black Painted
695	Dark Bronze Painted
696	Gold

Video Review of Yale 300 Series Deadlock

Video Detail Page

Customer Images:

Questions and Answers

Q: What's the difference between the 313ST and the 315. Thanks

A: As shown on page 11 of the manufacturers catalog as seen here:

Download File

The Yale 315 is a typical single cylinder deadbolt with a cylinder on the exterior and a thumb turn on the interior.

The Yale 313ST is the same single cylinder deadbolt will they sell it around the exterior and a thumb turn on the interior however this is what's called a classroom type function where the interior thumb-turn will retract the latch bolt but will not project the last bolt from the interior side.

this function is found commonly on bathroom doors in schools where the custodian can lock and unlock the door from the exterior with a cylinder but if someone is occupying the bathroom and the cylinder is locked from the exterior you can always exit however from the interior you can never lock that deadbolt using the thumb-turn.

Q: Do you have distributor in the Philippines, if so pls give us contact numbers. Thank you.

A: We do not have a location in the Philippines however we can ship from our location in SW Florida.
