Product Description:

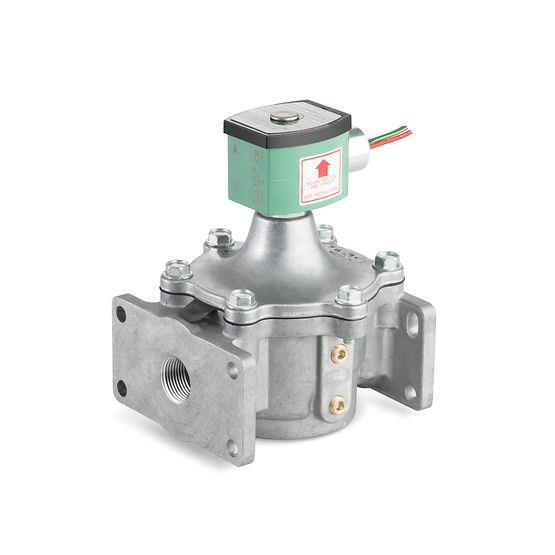

Asco 8214G251 AC115/50D Gas Shutoff Solenoid Valve, Normally Closed, 1" Pipe Size, 115/50vac, Aluminum

The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. Optional flange allows for double-solenoid & solenoid-motorized valve construction to allow for modularity and ease of mounting. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.

  • Solenoid Gas Valve
  • Body Material: Aluminum
  • Flow (Cv) : 21.00
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 1
  • Valve Actuation: Solenoid
  • Coil Class: fb
  • Min to Max Ambient Temperature: -40 - 125 °F
  • Orifice Size: 1-5/8 in
  • Voltage & Frequency: 115 AC with 50 Hz
  • Watt Rating: 20.1 W
  • Lead Length: 18 inch
  • Holding Current (VA): 25
  • Seating Elastomer: NBR
  • Packing & Sold as: Each.
  • Note: Unit of measure is Each. When you buy a quantity of 1 you will get one piece. Price is for one each.
