Von Duprin PS861 Circuit Board
Von Duprin PS861 Circuit Board
Von Duprin PS861 Circuit Board only 12/24VDC-1A
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
320.32 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (No Minimums
):
Naples, FL Warehouse Qty: 7
For quantities beyond the "In Stock" above, the item(s)
ships in 2-3 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Von Duprin PS861 Power Supply 24VDC-1A
If you have an existing PS861 and need to replace only this circuit board, purchasing the circuit board is less costly than purchasing the entire power supply as seen here:
Von Duprin PS861 Power Supply 24VDC-1A

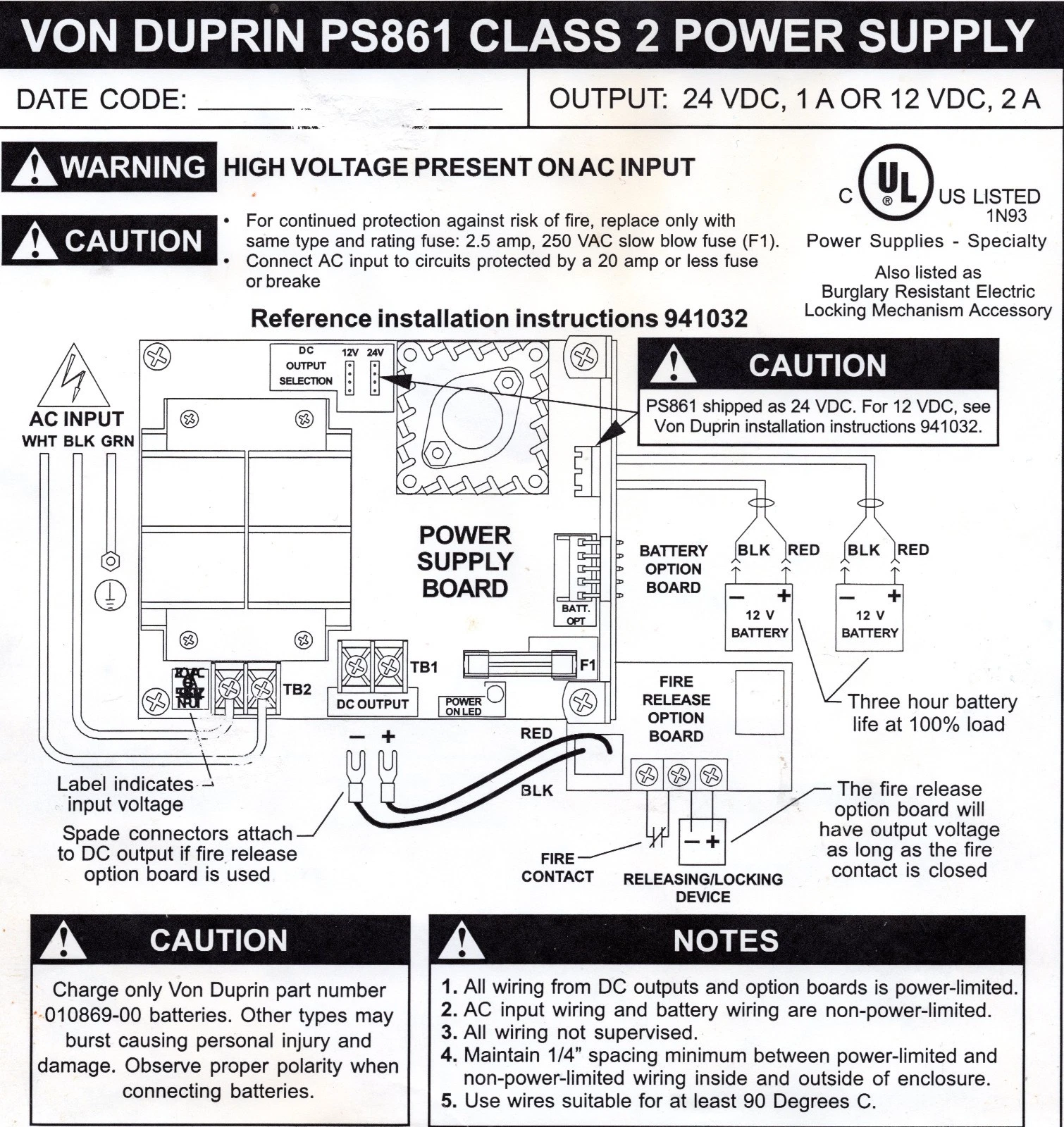

Instructions
Detailed Image
POWER SUPPLY CROSS REFERENCE LIST
PS900-Model
PS900-Summary
Legacy Supply (PS873)
PS902
2AMP @ 12/24VDC
1 option board connector
1 fire alarm connector
1 battery board plug
505 (1AMP @ 12/24VDC)
510 (@AMP @ 24VDC)
861 (2AMP @ 12VDC, 1AMP @ 24VDC)
PS904
4AMP @ 12/24VDC
2 option board connectors
1 battery board connector
510 (3AMP @ 12VDC)
873 (4AMP @ 12VDC, 2AMP @ 24VDC) - no inrush app's
SBB-3 (24VDC @ 3AMP)
PS906
6AMP @ 12/24VDC
3 option board connectors
1 battery board connector
515 (5AMP @ 24VDC)
SBB-5 (5AMP @ 24VDC)
515 (10AMP @ 12VDC) - no exact match
SBB-2- (10AMP @ 24VDC) - no exact match
PS914
12/24VDC @ 4AMP Hi Inrush
2 option board connectors
1 battery board connector
PS873 (2AMP @ 24VDC, 4AMP @ 12VDC) Hi Inrush
POWER SUPPLY OPTION BOARD
PS900- Model
PS900-Summary
Legacy supply (PS873)
900-2RS
2 zone control with sequencing
871-2 board
900-2Q
2 zone control for QEL
2Q board
900-4R
4 relay control, no timing or logic
DCM, RCM
900-4RL(4TD,AO & SI)
4 relay control with logic - field programmable
4TD, SI, AO, DCM + TDM, RCM + TDM
900-8F
8 fused 4AMP max outputs
NEW
900-8P
8 PTC 1.8AMP output
NEW
900-BBK
Battery backup w/ batteries
873-BB
900-FA
Fire alarm
FA, EIR
POWER SUPPLY OPTION BOARD COMPATIBILITY
Option Board
Von Duprin PS914
Schlage PS902, PS904, PS906
900-2RS
Yes
No
900-2Q
Yes
Yes
900-4R
Yes
Yes
900-4RL
Yes
Yes
900-8F
Yes
Yes
900-8P
Yes
Yes
900-BBK
Yes
Yes
900-FA
Yes
Yes
NOTE:
The newer PS900 option cards can NOT be used in the PS873 power supplies.
The PS873 option cards also can NOT be used in the newer PS900 series power supplies

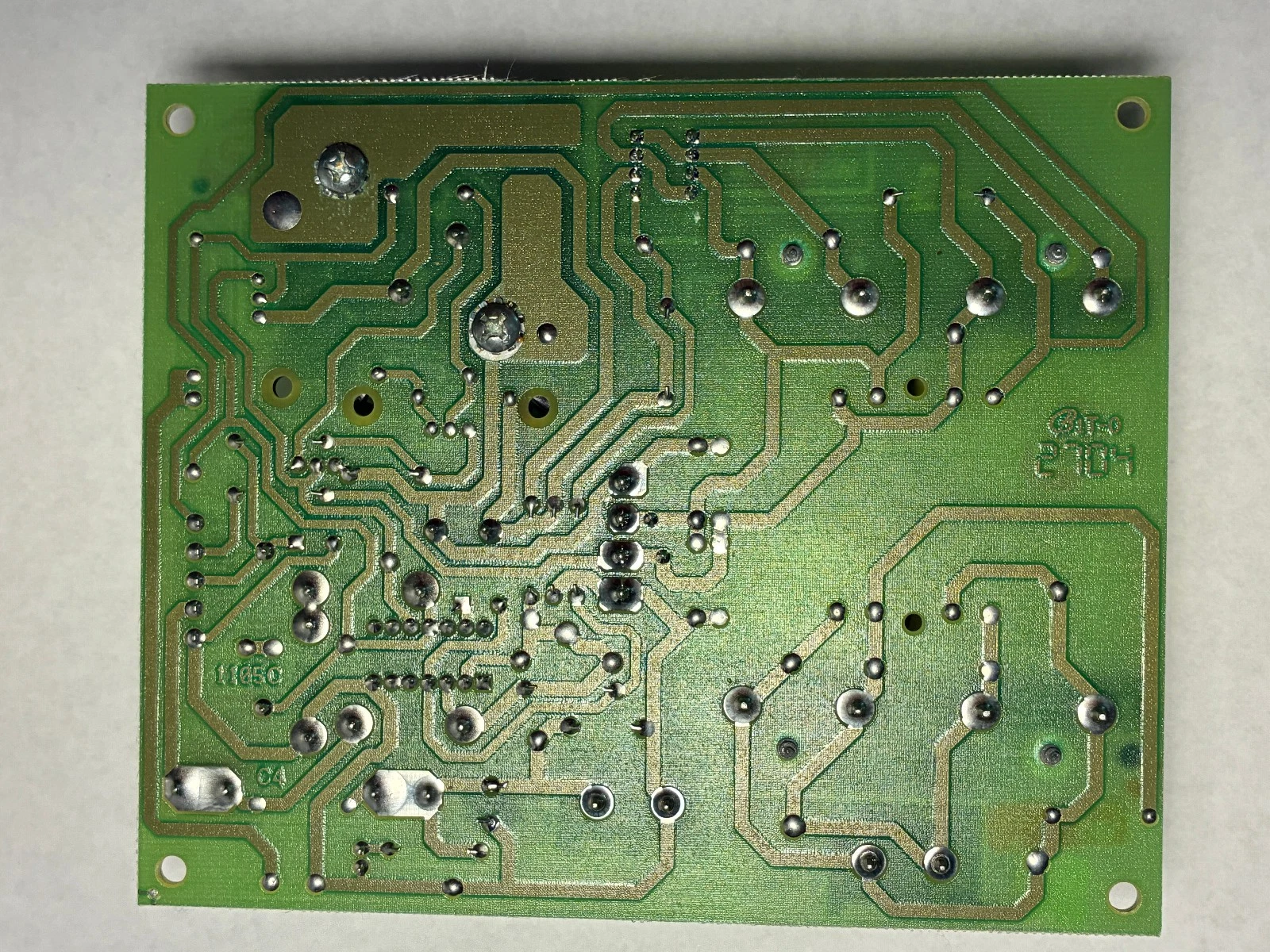

Customer Supplied Photos
