Von Duprin 99NL

Name: Von Duprin 99NL Rim Exit Device Device
Brand: Von Duprin
SKU: Von Duprin 99NL
Price: 1671.43 USD

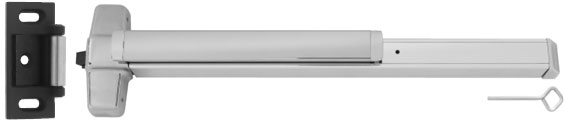

Von Duprin 99NL Rim Exit Device Device

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,671.43 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Von Duprin 99NL Series Rim Exit Device Device With Night Latch Trim

98 / 99: rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (Special Dogging), -2 (Double Cylinder) or SS (Signal Switch).
Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
Device Lengths:
- 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
- 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes: 299 – Dull Black
Dogging Feature: Hex key dogging standard
Fasteners & Sex Bolts (SNB): Includes 1 ³/₄" (19mm) – 2 ¹/₄" (57mm) Wood & Metal Doors
Latch Bolt: Deadlocking, ³/₄" (19mm) throw
Device Centerline from Finished Floor:
- 39 ¹³/₁₆" (1011 mm,)
- 39 ¹¹/₁₆" (1008 mm) with Mullion
Center Case Dimensions: 8" x 2 ³/₄" x 2-3/8" (203mm x 70mm x 60mm)
Mechanism Case Dimensions 2 ¹/₄" x 2 ¹/₄" (57mm x 57mm)
Projection Pushbar:
- Neutral – 3 ¹³/₁₆" (97 mm)
- Pushbar Depressed – 3 ¹/₁₆" (78 mm)
