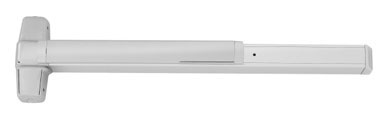

Von Duprin 9947K-F Fire Rated Concealed Vertical Rod Device With Knob Trim
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
2,887.89 USD
In Stock Ready for Shipment
Select Finish
26D Satin Chorme (Add $120.04)
28 Anodized Aluminum
Select Length
3-Foot
4-Foot (Add $23.82)
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 2-3 business days.
Additional Declarations -
This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $85.00 worth of product from Von Duprin to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Von Duprin 9947K-F Fire Rated Concealed Vertical Rod Device With Knob Trim
9847-F/9947-F:
Fire exit concealed vertical rod device for use on pairs of doors up to 8´ x 10´(2438mm x 3048mm) , UL listed for Fire Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (Signal Switch) devices.
Device Functions:
Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
Device Lengths:
3’ 2’4" to 3’ (711mm to 914 mm) Door Size
4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes
: Top - 338 – Unfinished, Bottom – 385A - Unfinished
Dogging Feature:
No Mechanical Dogging.
Fasteners & Sex Bolts (SNB)
:: Includes 1 ³/4" (19mm) – 2 ¹/4" (57mm) Wood & Metal Doors.
Latch Bolt
: Deadlocking Anti-friction Top & Bottom Bolt, 5/8 " (16mm) throw
Device Centerline from Finished Floor:
39-5/8" (1006 mm) Standard, Adjustable from 35-5/8" (905mm) to 49-5/8" (1260mm)
Door Undercut
: ¹/4" (7mm) maximum
Center Case Dimensions:
8" x 2 ³/4" x 2-3/8" (203mm x 70mm x 60mm)
Mechanism Case Dimensions:
2 ¹/4" x 2 ¹/4" (57mm x 57mm)
Top & Bottom Latch Case:
4 ¹/2" x 2 1/8" x 1 ¹/2" (114mm x 54mm x 38mm)
Vertical Rods:
Round 2 piece adjustable rods
Top rod adjustable from 6’8" (2027mm) to 8’4"(2533mm)
Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm)
Extension rod kits available for doors over 8’4" (2533mm)
Projection:
Pushbar Neutral – 3 ¹³/16" (97 mm)
Pushbar Depresse 3-1/16"(78mm)
