Von Duprin 9875L-F

Name: Von Duprin 9875L-F Fire Rated Mortise Lock Device With Lever Trim
Brand: Von Duprin
SKU: Von Duprin 9875L-F
Price: 2836.77 USD

Von Duprin 9875L-F Fire Rated Mortise Lock Device With Lever Trim

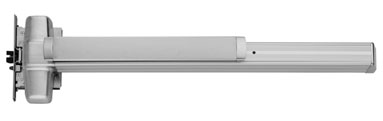

× This image is for a similar product but it will differ in size, color and/or other attributes.

Von Duprin 9875L-F Fire Rated Mortise Lock Device With Lever Trim

Price: $2,836.77 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Von Duprin 9875L-F Fire Rated Mortise Lock Device With Lever Trim

9875-F/9975-F: Fire exit mortise lock devices for all types of single doors up to 4´ x 10´ (1219mm x 3048mm) or 8´ x 10´ (2438mm x 3048mm) double doors installations, UL listed for Fire Exit Hardware; See page 41 for detailed information on UL listed fire exit hardware label and door opening size information. Devices are ANSI A156.3 – 2001 Grade 1. Fits door stiles as narrow as 4 ³₄" (121mm). The 9875-F device has a smooth mechanism case and the 9975-F device has a grooved case. The mortise lock device is non-handed except when the following device options are used: -2 (Double Cylinder) or SS (Signal Switch) devices.
The 7500 Mortise lock: is equipped with a ³/₄" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Device Functions: Device ships EO/DT/NL. Field selectable. For TP, K, or L adjust NL drive screw in mortise lock
Device Lengths:
- 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
- 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes: 575 – Dull Black
Dogging Feature:No Mechanical Dogging.
Fasteners & Sex Bolts (SNB):: Includes 1 ³/₄" (19mm) – 2 ¹/₄" (57mm) Wood & Metal Doors.
Device Centerline from Finished Floor: 39 5/8" (1006 mm)
Center Case Dimensions: 8" x 2 ³/₄" x 2 3/8" (203mm x 70mm x 60mm)
Mechanism Case Dimensions: 2 ¹/₄" x 2 ¹/₄" (57mm x 57mm)
Projection: Pushbar Neutral – 3 ¹³/₁₆" (97 mm )Pushbar Depresse 3-1/16"(78mm)

Detailed Image

Questions and Answers

Q: Does this product meet NFPA 80 Code requirement

A: Which part of the code?

Q: if the the door is unlocked can someone enter the room using the handle

A: Depends on the function, but the short answer is yes.

Please let us know if there is anything else we can help with.

Q: Can the product be installed without anything on the reentry (Lever) side of the door?

A: Sure it can. this is called an Exit Only Device and the part number changes to Von Duprin 9875EO-F and can be reviewed here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: Will this product work with an electric strike and cylinder?

A: Certainly - the electric strike would need to be fail secure and a model that would accept a 3/4” latch projection.

(Required, used to email you once question is answered.)
