Von Duprin 9827L

Name: Von Duprin 9827L Surface Mounted Vertical Rod Device
Brand: Von Duprin
SKU: Von Duprin 9827L
Price: 2632.37 USD

Von Duprin 9827L Surface Mounted Vertical Rod Device

× This image is for a similar product but it will differ in size, color and/or other attributes.

Von Duprin 9827L Surface Mounted Vertical Rod Device

Price: $2,632.37 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

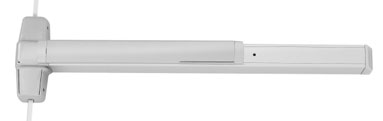

Von Duprin 9827L Series Surface Mounted Vertical Rod Device

9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SD Special Dogging), or SS (Signal Switch).
Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
Device Lengths:
- 3’ 2’4" to 3’ (711mm to 914 mm) Door Size
- 4’ 2’10" to 4’ (864 mm to 1219 mm) Door Size
Strikes: Top - 299 – Dull Black, Bottom – 248L4 & 304L
Dogging Feature: Hex key dogging standard.
Fasteners & Sex Bolts (SNB):: Includes 1 ³/₄" (19mm) – 2 ¹/₄" (57mm) Wood & Metal Doors SNB furnished for top & bottom latches
Latch Bolt: Deadlocking Anti-friction Top & Bottom Bolt, 5/8 " (16mm) throw
Device Centerline from Finished Floor: 39 5/8" (1006 mm)
Door Undercut: ¹/₄" (7mm)

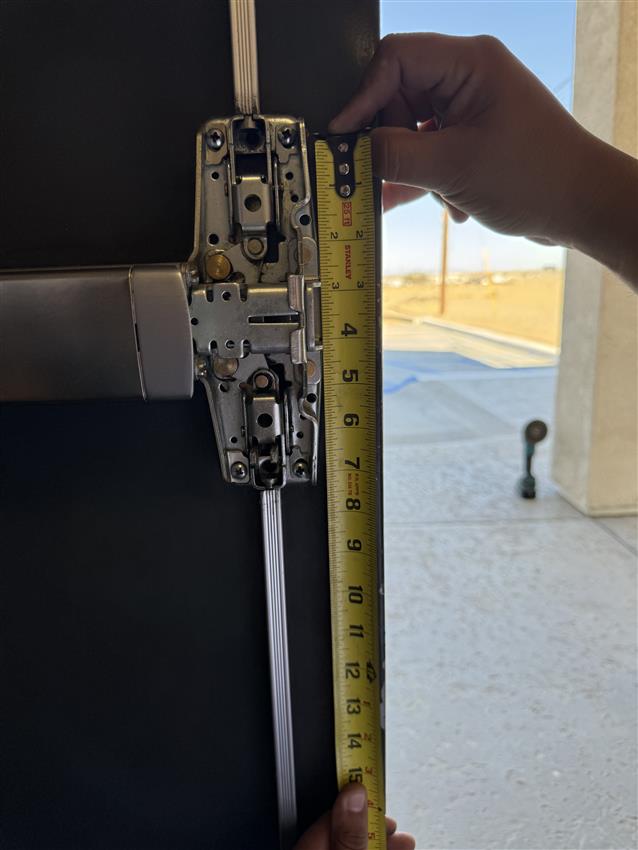

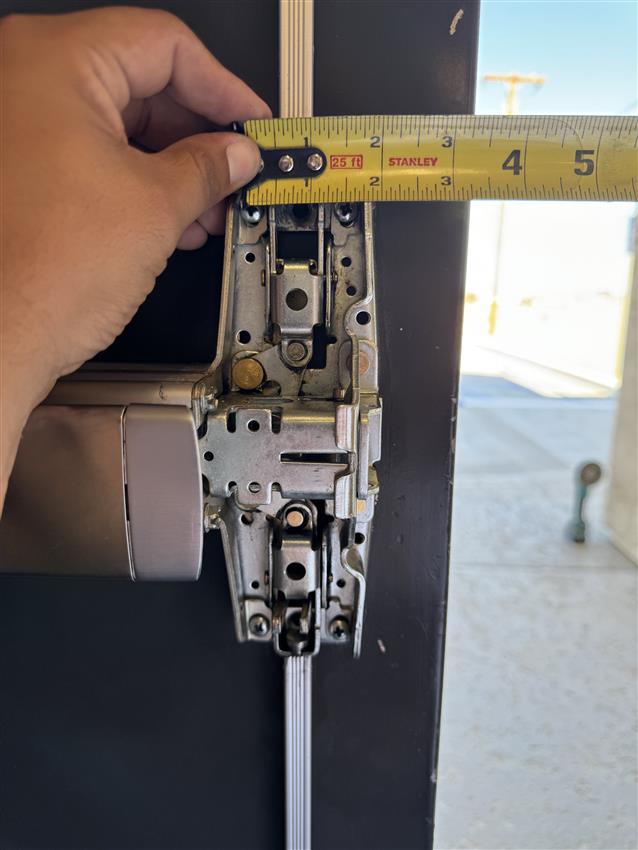

Center Case Dimensions: 8" x 2 ³/₄" x 2 3/8" (203mm x 70mm x 60mm)
Mechanism Case Dimensions: 2 ¹/₄" x 2 ¹/₄" (57mm x 57mm)
Top & Bottom Latch Case: 4 ¹/₂" x 2 1/8" x 1 ¹/₂" (114mm x 54mm x 38mm)
Vertical Rods:
- ¹/₂" square tubing, standard rods accommodate 7’ (2134mm) door
- Top rod length is 34 ¹/₁₆" (887mm)
- Bottom rod length is 31 ¹/₄" (794mm)
- Extension rods available, 1’ (205mm) or 3’ (914mm) for doors over 7’
- One piece top rod available for 8’ (2438mm) – 10’ (3048mm) door
Projection: Pushbar Neutral – 3 ¹³/₁₆" (97 mm )Pushbar Depresse 3-1/16"(78mm)
