Von Duprin 871-2

Name: Von Duprin 871-2 Board for PS873 Power Supply
Brand: Von Duprin
SKU: Von Duprin 871-2
Price: 431.89 USD

Von Duprin 871-2 Board for PS873 Power Supply

× This image is for a similar product but it will differ in size, color and/or other attributes.

Von Duprin 871-2 Board for PS873 Power Supply

Price: $431.89 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 12

For quantities beyond the "In Stock" above, the item(s) ships in 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


Von Duprin 871-2 Board

Option board for PS873 power supply QEL must be powered by a PS873 with 871-2Q board. Up to 4 QEL devices can be powered from a PS873. (Two 871-2Q boards required when powering 3 or 4 QEL devices from a PS873.)

Installation Instructions	PS914 (PS873 replacement) Installation Instructions	Option Boards for PS873 Instructions	900-BB Battery Backup

POWER SUPPLY CROSS REFERENCE LIST

PS900-Model	PS900-Summary	Legacy Supply (PS873)
PS902	2AMP @ 12/24VDC 1 option board connector 1 fire alarm connector 1 battery board plug	505 (1AMP @ 12/24VDC) 510 (@AMP @ 24VDC) 861 (2AMP @ 12VDC, 1AMP @ 24VDC)
PS904	4AMP @ 12/24VDC 2 option board connectors 1 battery board connector	510 (3AMP @ 12VDC) 873 (4AMP @ 12VDC, 2AMP @ 24VDC) - no inrush app's SBB-3 (24VDC @ 3AMP)
PS906	6AMP @ 12/24VDC 3 option board connectors 1 battery board connector	515 (5AMP @ 24VDC) SBB-5 (5AMP @ 24VDC) 515 (10AMP @ 12VDC) - no exact match SBB-2- (10AMP @ 24VDC) - no exact match
PS914	12/24VDC @ 4AMP Hi Inrush 2 option board connectors 1 battery board connector	PS873 (2AMP @ 24VDC, 4AMP @ 12VDC) Hi Inrush

POWER SUPPLY OPTION BOARD

PS900- Model	PS900-Summary	Legacy supply (PS873)
900-2RS	2 zone control with sequencing	871-2 board
900-2Q	2 zone control for QEL	2Q board
900-4R	4 relay control, no timing or logic	DCM, RCM
900-4RL(4TD,AO & SI)	4 relay control with logic - field programmable	4TD, SI, AO, DCM + TDM, RCM + TDM
900-8F	8 fused 4AMP max outputs	NEW
900-8P	8 PTC 1.8AMP output	NEW
900-BBK	Battery backup w/ batteries	873-BB
900-FA	Fire alarm	FA, EIR

POWER SUPPLY OPTION BOARD COMPATIBILITY

Option Board	Von Duprin PS914	Schlage PS902, PS904, PS906
900-2RS	Yes	No
900-2Q	Yes	Yes
900-4R	Yes	Yes
900-4RL	Yes	Yes
900-8F	Yes	Yes
900-8P	Yes	Yes
900-BBK	Yes	Yes
900-FA	Yes	Yes

NOTE:
The newer PS900 option cards can NOT be used in the PS873 power supplies.
The PS873 option cards also can NOT be used in the newer PS900 series power supplies

(Click to Enlarge)

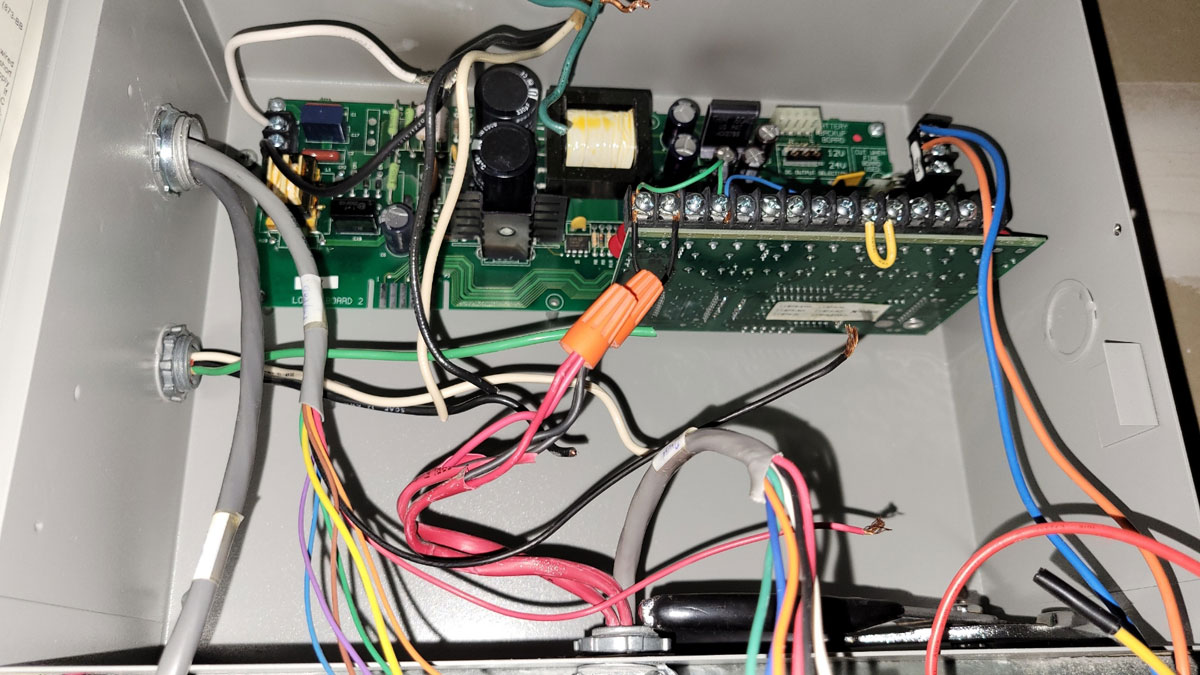

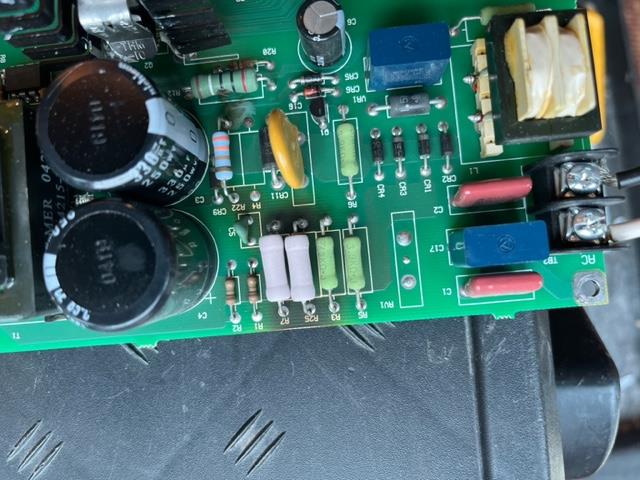

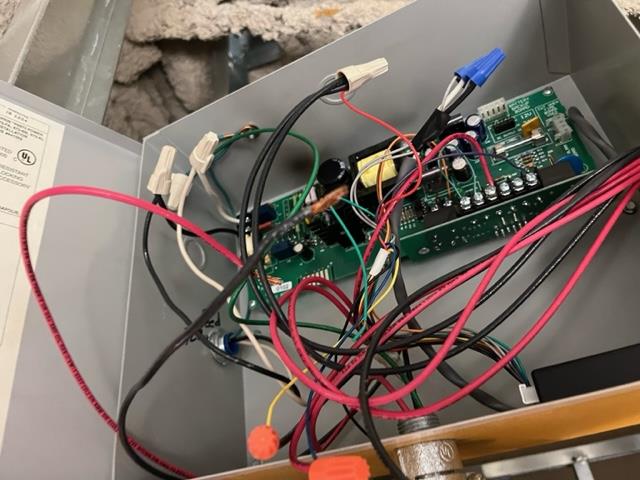

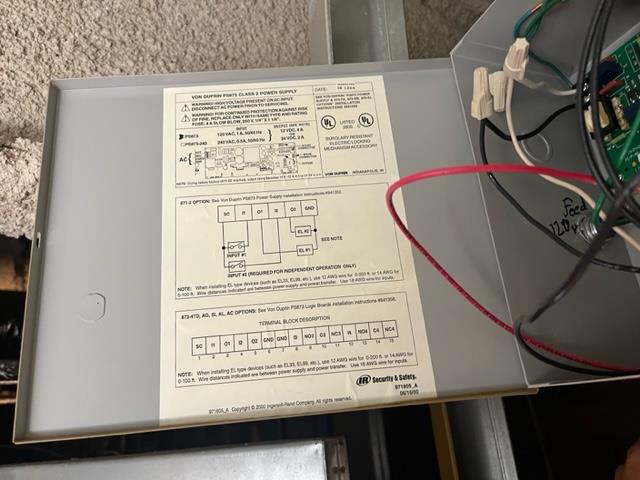

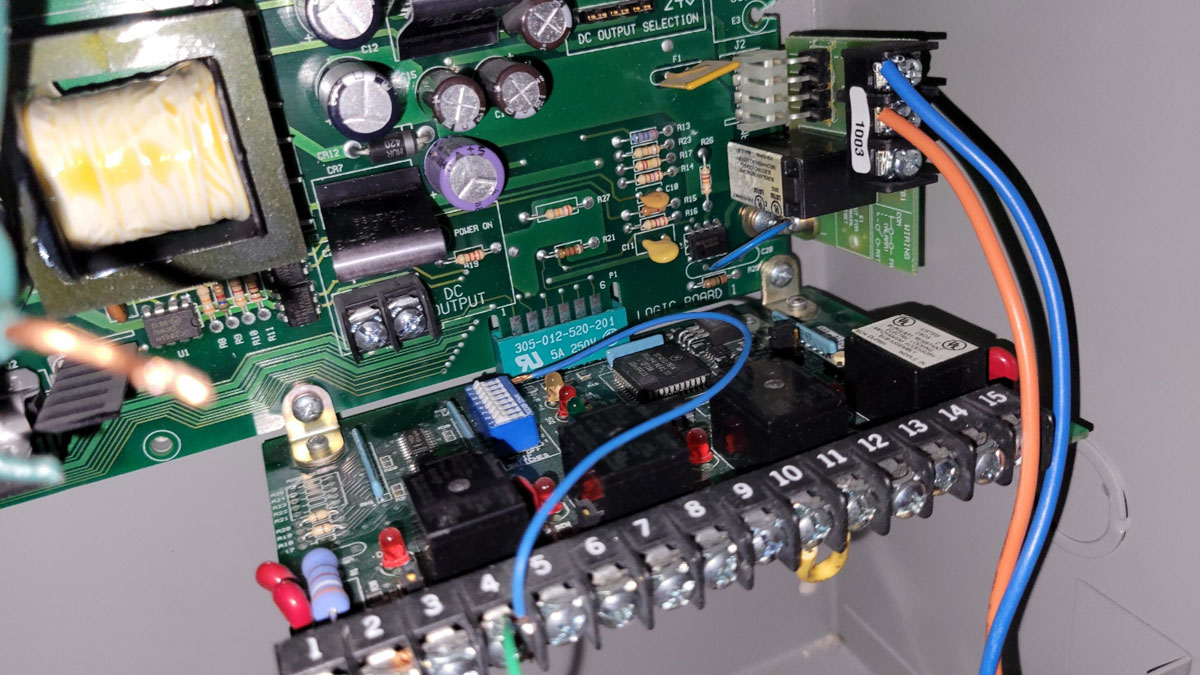

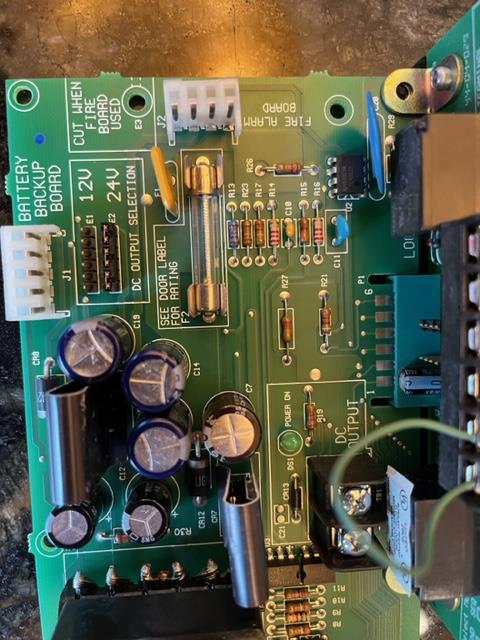

Customer Images:

Questions and Answers

Q: Can a PS872 operate EL devices?

A: Yes, 871-2 option board is included in the PS872 power supply and will power 1 or 2 EL electric exit devices.

Q: What outputs should be showing on the 871-2 board?

A: The 871-2 option board on PS873 power supply provides output voltage when an input such as card reader is activated. If 871-2 board is programmed for sequential operation when either input is activated both outputs provide 24VDC. If 871-2 board is programmed for individual operation when input one is activated only output one provides 24VDC and when input two is activated output two provides 24VDC.
